BS6004 House Wire BS 6004 624-Y Twin and Earth PVC Insulated Copper Conductor 300/500V Cable

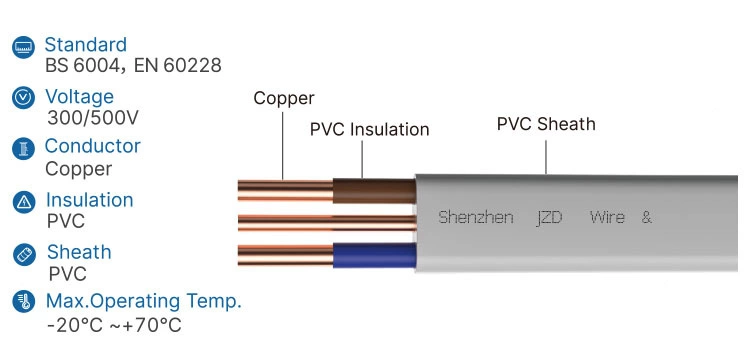

Standard
BS 6004,EN60228
Voltage
300/500V
Conductor
Copper
Insulation
PVC
Sheath
PVC
Max Operating Temp
-20℃~+70℃

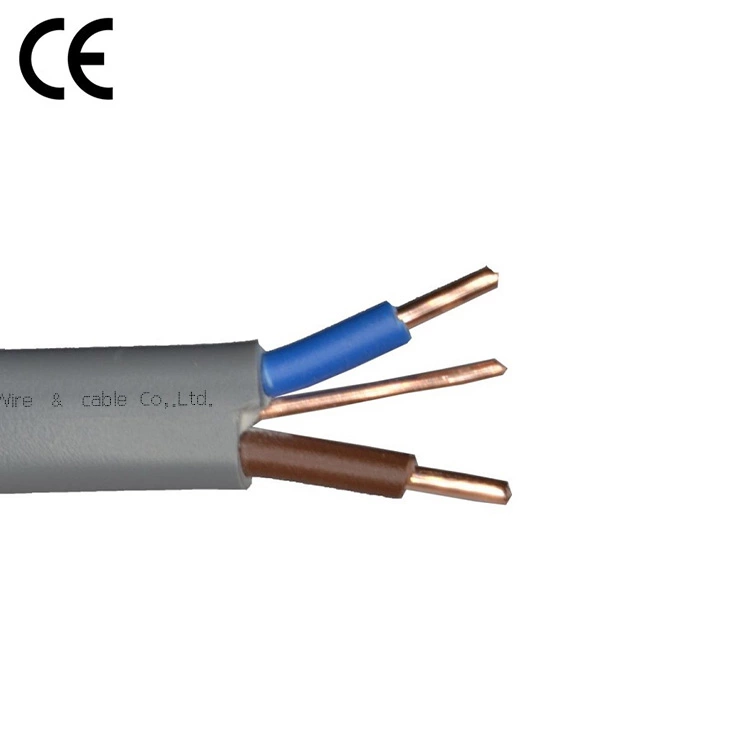

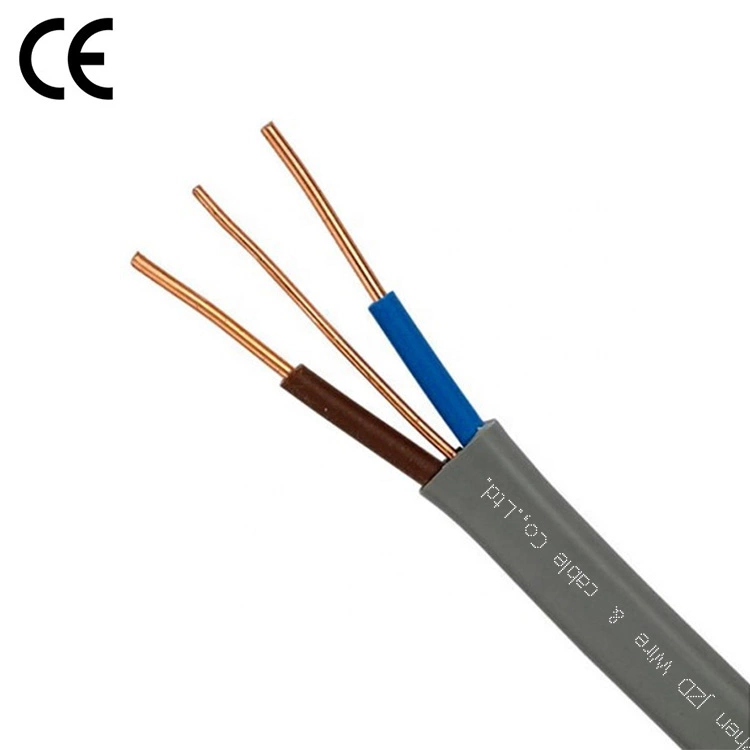

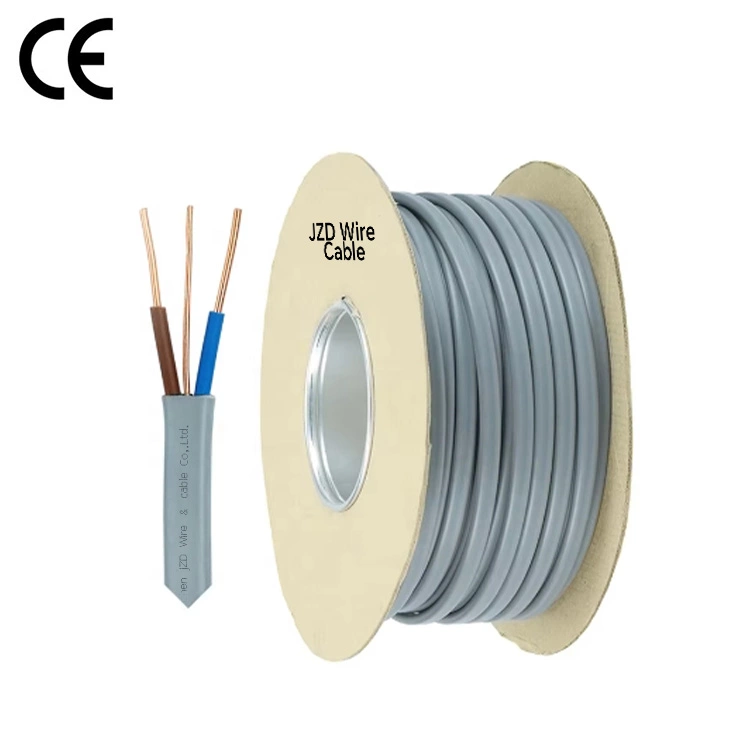

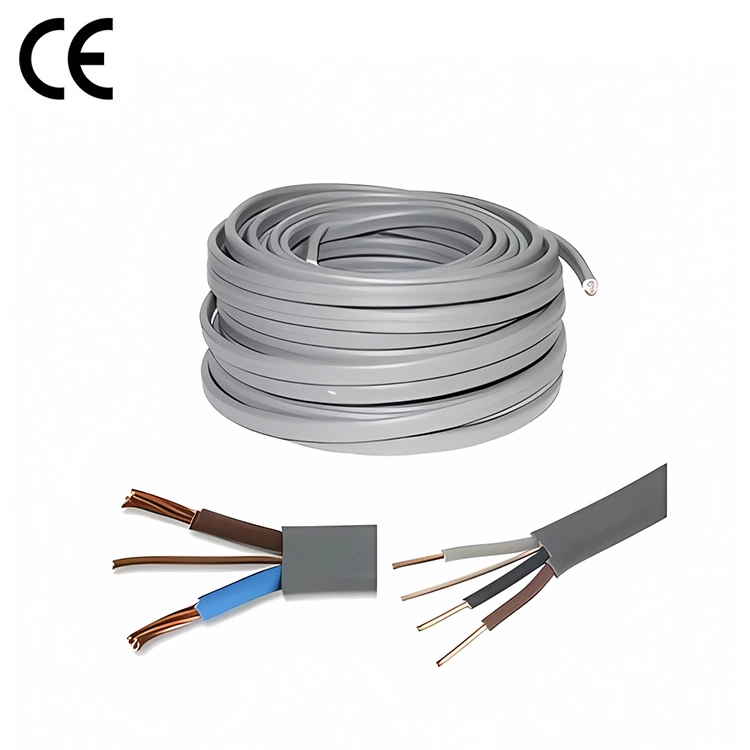

Flat Twin and Earth Cable

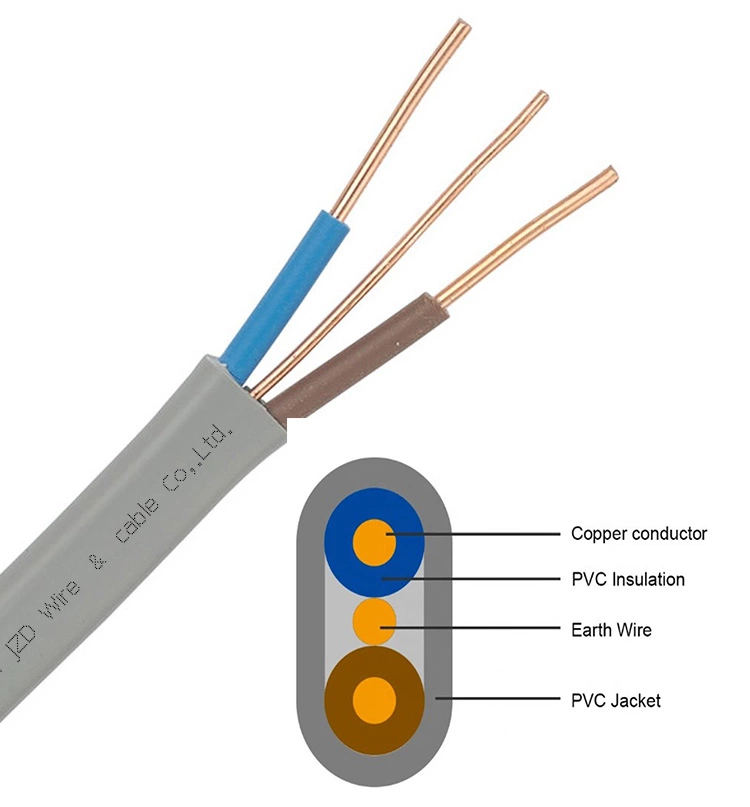

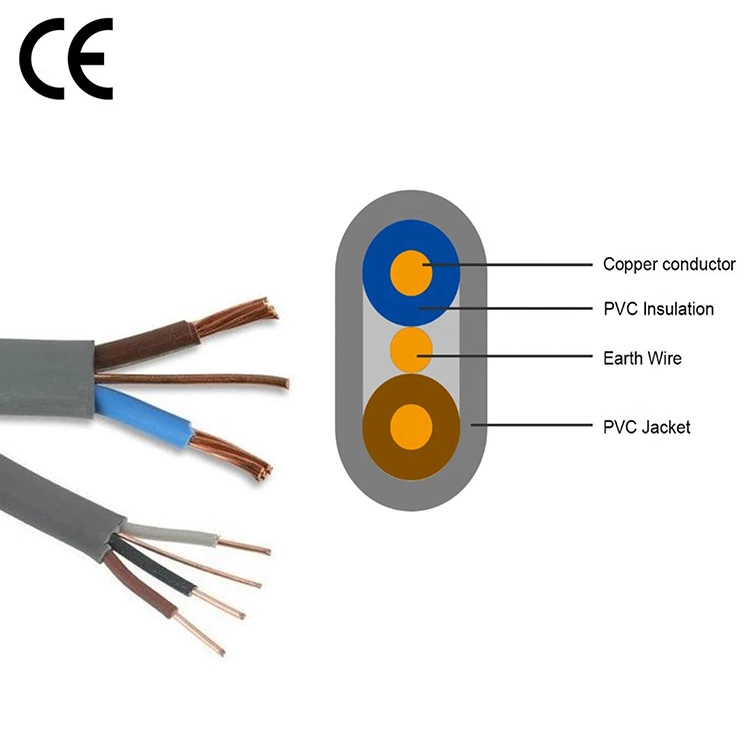

This high-performance BS 6004 compliant Twin and Earth Cable (624-Y) is designed for reliable fixed electrical installations in the UK and compliant regions. Featuring solid copper conductors for optimal conductivity, it offers PVC insulation and sheathing rated for 300/500V. The distinctive flat twin and earth design incorporates a bare CPC (Circuit Protective Conductor) alongside insulated live and neutral conductors, ensuring safety and compliance with British wiring regulations.
Engineered for durability and safety, our BS6004 cable meets stringent BASEC standards. Its flat profile allows for easy routing in conduits and trunking, while color-coded insulation (Brown/Blue + bare earth) ensures clear identification during installation. Ideal for residential and commercial building wiring circuits where fixed installation is required.
Specification
Flat Cables
|
|||||
Number of
cores & Normal area mm2 |
Conductor
Structure (main core) mm |
Earth core
structure mm |
Aver.Thickness
of insulation mm |
Aver.Thickness
of sheath mm |
Approx.
overall diameter mm |
2×1.0+E
|
1×1.13
|
1×0.85
|
0.60
|
0.90
|
4.1×7.3
|
2×1.5+E
|
1×1.38
|
1×1.13
|
0.70
|
0.90
|
4.6×8.5
|
2×2.5+E
|
1×1.78
|
1×1.38
|
0.80
|
1.00
|
5.4×10.1
|
2×4.0+E
|
1×2.25
|
1×1.78
|
0.80
|
1.00
|
5.9×11.5
|
2×6.0+E
|
1×2.76
|
1×1.78
|
0.80
|
1.10
|
6.6×12.7
|
Application
This BS6004 cable is essential for compliant electrical wiring solutions in:
- Residential Circuit Wiring:
- Lighting Circuits: Safe, fixed wiring for ceiling roses, switches, and light fittings.
- 13A Socket Outlets: Powering ring and radial final circuits for plugs and appliances (commonly 1.5mm² & 2.5mm²).
- Immersion Heaters & Cookers: Dedicated circuits requiring robust wiring (higher sizes available).
- Indoor Consumer Unit Connections: Linking distribution boards to circuits within dry partitions.
- Commercial & Light Industrial Fixed Installations:
- Office power distribution to desks and equipment.
- Workshop lighting and outlet circuits.
- Fixed appliance connections (e.g., extractor fans, servers).
- Renovations & Extensions:
Compliant wire for upgrading or extending existing wiring systems in dwellings. - Enclosed Conduit & Trunking Systems:
Its flat profile is optimized for pulling through conduits and fitting neatly into mini-trunking.
