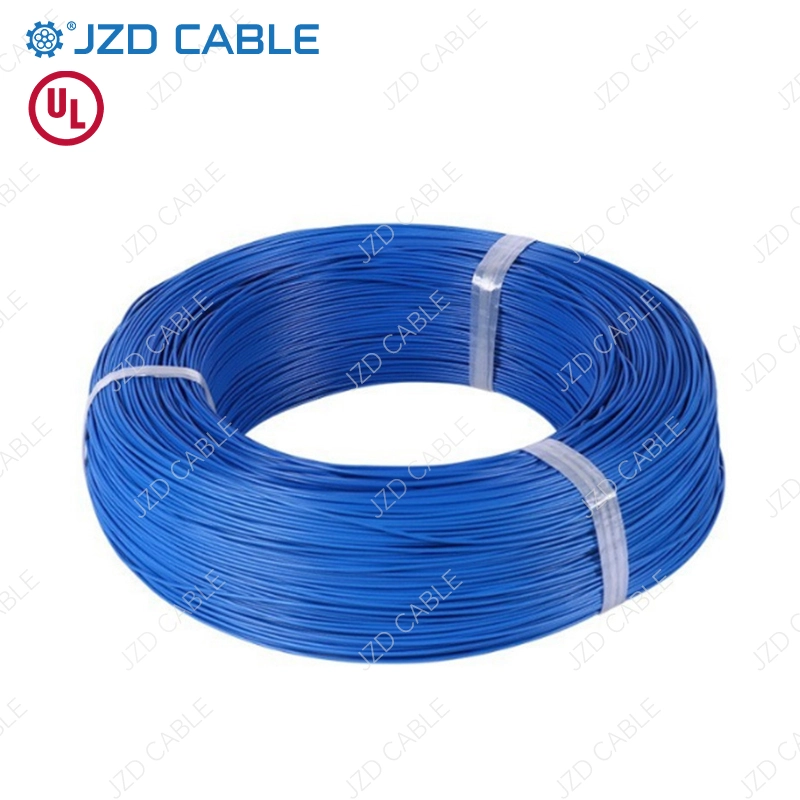

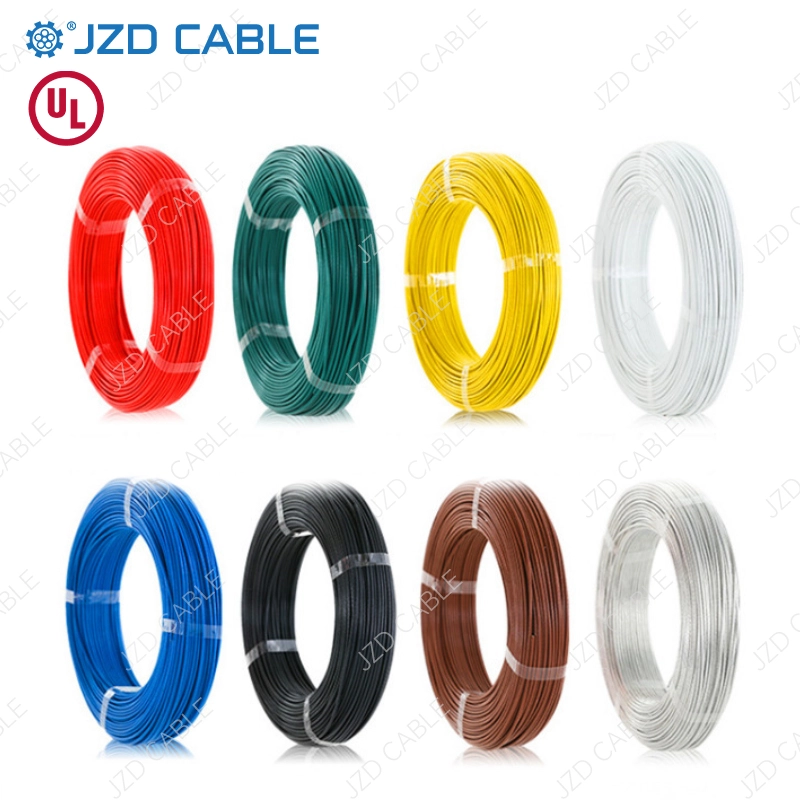

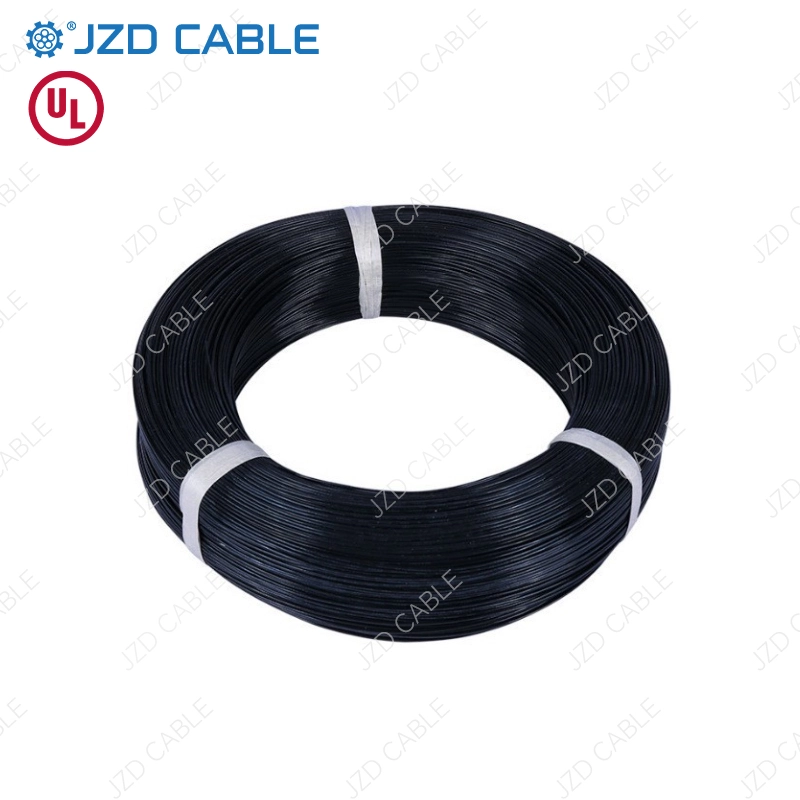

UL3302 Hook-Up Wire

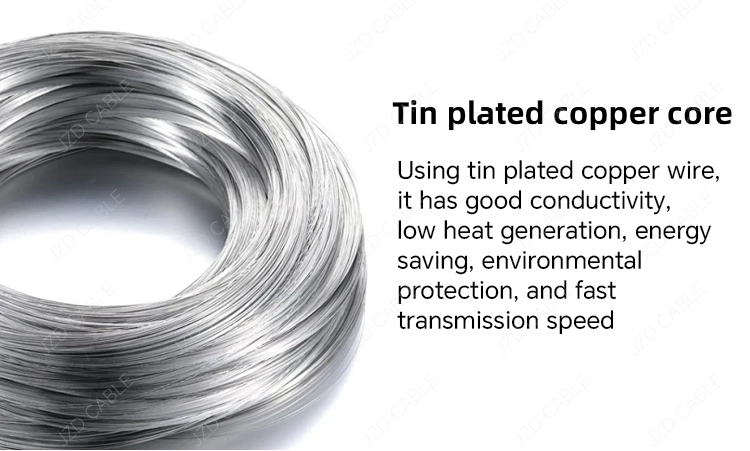

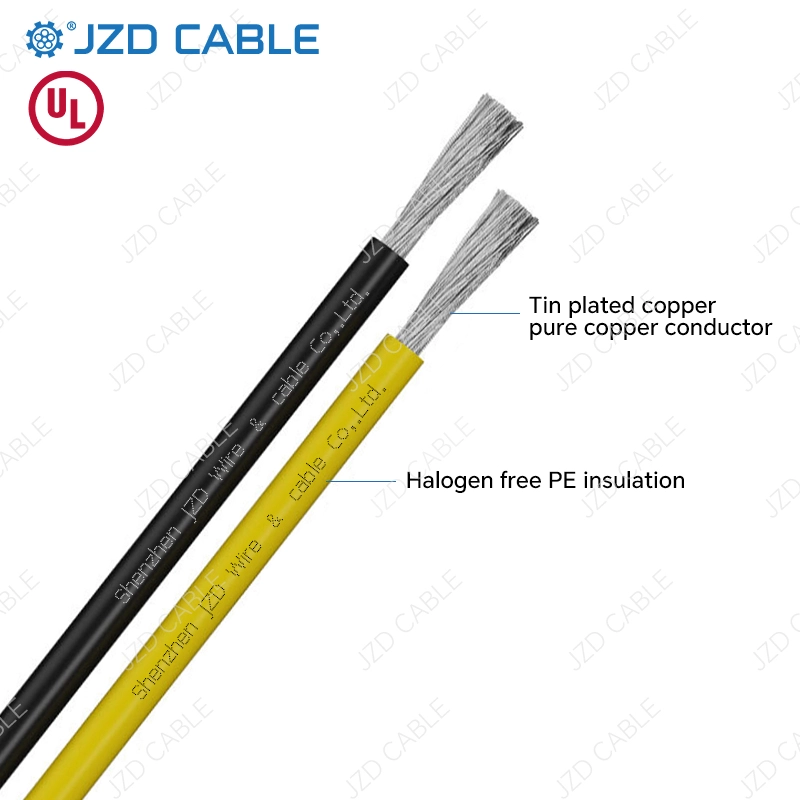

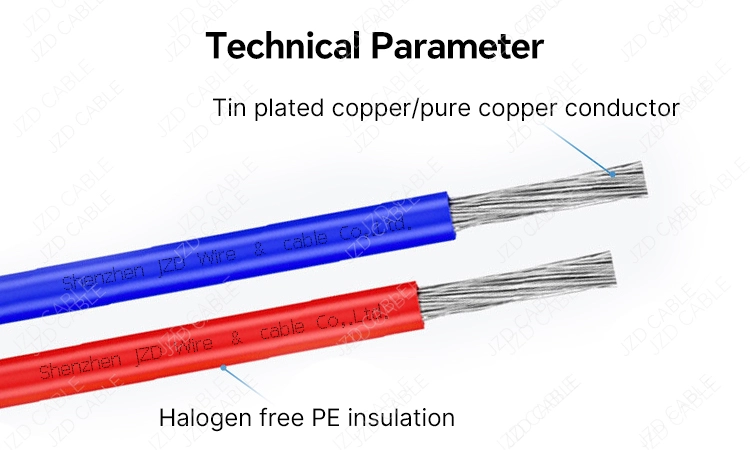

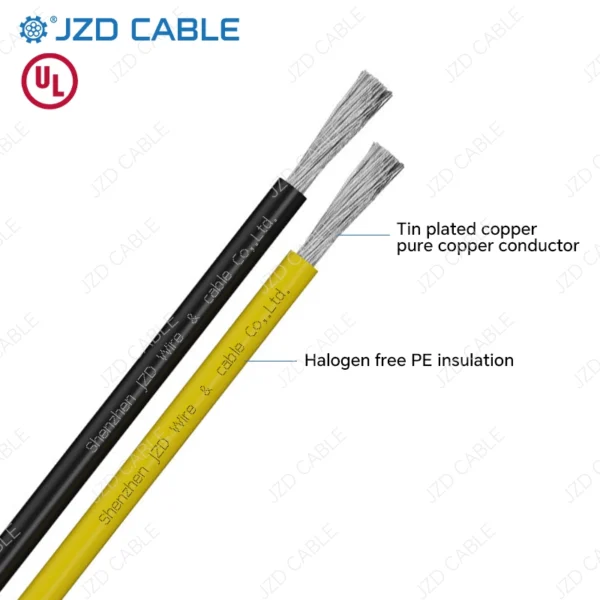

The UL3302 Hook-Up Wire delivers reliable electrical connectivity for demanding industrial and commercial applications. Engineered with premium tinned, annealed copper conductors (available in stranded or solid configurations), it ensures optimal conductivity and corrosion resistance. Its cross-linked polyethylene (XL-PE) insulation provides exceptional thermal stability, rated for 105℃ temperatures and 30 volts. The wire’s uniform insulation thickness enables easy stripping and cutting, enhancing installation efficiency. Crucially, it passes the UL VW-1 vertical flame test, meeting stringent safety standards for flame resistance. Manufactured in compliance with UL758, UL1581, and CSA22.2 standards, this hook-up wire guarantees consistent performance and safety in critical circuits.
Specification
|
UL Style & |
Conductor |
Insulation |
Overall |
Stand Put-up |
Conductor |
||
|
AWG |
Construction |
||||||
|
No/mm |
mm |
mm |
Ft/coil |
M/Coil |
Ω/KM |
||
|
UL3302 |
30 |
7/0.10 |
0.20 |
0.70 |
2000.00 |
610 |
381.00 |
|
28 |
7/0.127 |
0.20 |
0.80 |
2000.00 |
610 |
239.00 |
|
|
26 |
7/0.16 |
0.20 |
0.90 |
2000.00 |
610 |
150.00 |
|
|
24 |
11/0.16 |
0.20 |
1.00 |
2000.00 |
610 |
94.20 |
|
|
22 |
17/0.16 |
0.20 |
1.20 |
2000.00 |
610 |
59.40 |
|
|
20 |
21/0.178 |
0.20 |
1.40 |
2000.00 |
610 |
36.70 |
|
|
18 |
34/0.178 |
0.20 |
1.70 |
2000.00 |
610 |
23.20 |
|
|
16 |
26/0.25 |
0.20 |
2.00 |
2000.00 |
610 |
14.60 |
|
|
UL3302 |
28 |
1/0.32 |
0.20 |
0.80 |
2000 |
610 |
239.00 |
|
26 |
1/0.404 |
0.20 |
0.90 |
2000 |
610 |
150.00 |
|
|
24 |
1/0.511 |
0.20 |
1.00 |
2000 |
610 |
94.20 |
|
|
22 |
1/0.643 |
0.20 |
1.20 |
2000 |
610 |
59.40 |
|
|
20 |
1/0.813 |
0.20 |
1.40 |
2000 |
610 |
36.70 |
|
|
18 |
1/1.024 |
0.20 |
1.70 |
2000 |
610 |
23.20 |
|
Application
- Appliance Wiring
- Internal wiring for household appliances requiring 105℃ heat resistance (e.g., coffee makers, printers).
- Control Panels & Instruments
- Signal connections in HVAC control systems, meters, and lab equipment needing UL VW-1 flame compliance.
- Automotive Electronics
- Low-voltage circuits and sensors in vehicles demanding vibration/heat resilience.
- Power Supply Units
- Secondary wiring for switch-mode power supplies with space-constrained layouts.
- Lighting Systems
- LED drivers and low-voltage lighting installations requiring CSA/UL certification.
