Choosing the right portable cord for demanding applications is critical for safety and performance. The UL Certified SJOOW rubber cable stands out as a versatile and popular option, especially where durability and flexibility under stress are required. But how does it differ from its close cousin, SOOW? Let’s explore what makes SJOOW unique and where it excels.

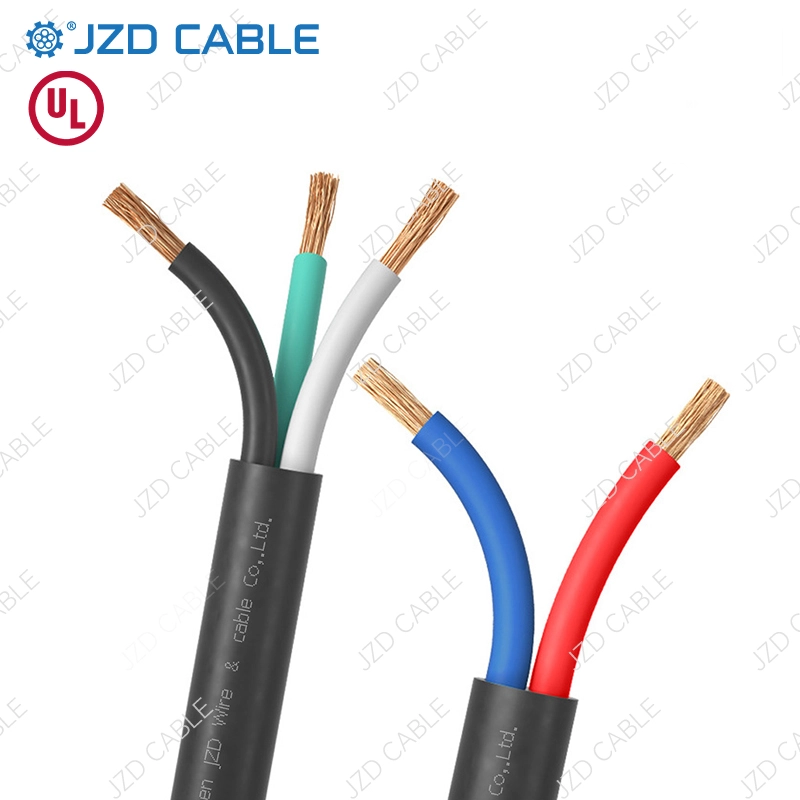

What is SJOOW Rubber Cable?

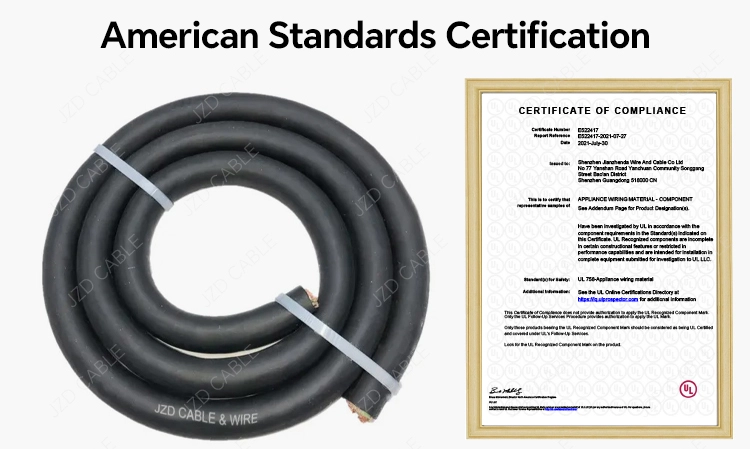

SJOOW is a designation for a specific type of portable power cable recognized by Underwriters Laboratories (UL), ensuring it meets stringent safety and performance standards (UL Standard 62, UL 1581, CSA C22.2). Breaking down the code clarifies its construction and capabilities:
- S: Service Cord (600V or less)
- J: Junior Service Cord (specifically indicating 300V maximum rating)
- OO: Oil-Resistant Insulation and Oil-Resistant Outer Jacket (Both layers resist degradation from oils, chemicals, solvents, moisture, and ozone)
- W: Weather and Water-Resistant (Suitable for indoor/outdoor use)

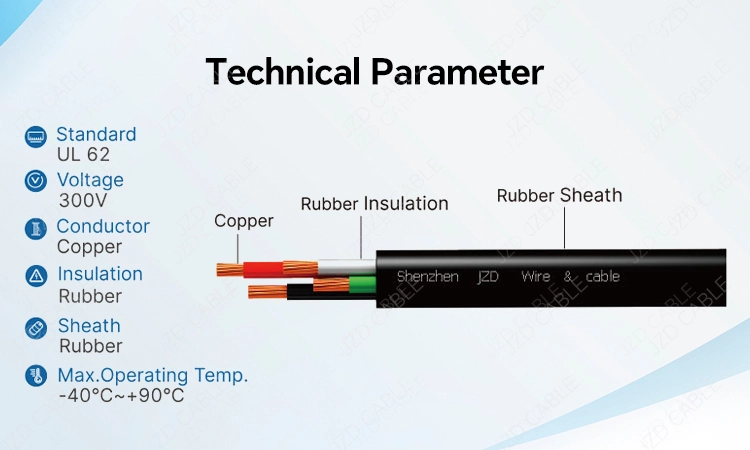

Key Specifications:
- Voltage Rating: 300 Volts (Max.)
- Temperature Rating: -40°C to 60°C (-40°F to 140°F)
- Conductors: Stranded bare copper or tinned copper for excellent flexibility and conductivity.
- Insulation & Jacket: Thermoplastic Elastomer (TPE) or Ethylene Propylene Diene Monomer (EPDM) rubber compounds.
- Certifications: UL Listed, often also CSA or C-UL AWM certified.
- Sunlight Resistance: Excellent (Suitable for prolonged outdoor use).
- Flexibility: Extremely flexible, even at low temperatures.
Where is UL SJOOW Cable Commonly Used?
SJOOW’s robust and flexible design makes it ideal for a wide range of demanding environments and applications:
- Industrial Machinery: Powering tools, temporary lighting, conveyors, welders, generators, and pumps in factories, mills, and refineries (especially where oil or chemical resistance is needed).
- Entertainment & Events: Powering stage lighting, sound equipment, portable generators, and power distribution systems, both indoors and outdoors. Its flexibility is crucial for running cables safely across busy stages and venues.
- Marine & Shipyards: Powering onboard equipment, tools, lighting, and shore power connections where resistance to moisture, salt air, and potential oil exposure is vital.
- Construction Sites: Connecting heavy-duty power tools, generators, and temporary lighting circuits. Its durability handles rough job site conditions.
- Agricultural Equipment: Powering motors, pumps, and grain handling equipment exposed to dirt, moisture, and potential oil/fuel.
- Mining Operations: Powering portable tools and equipment requiring a durable, flexible, and oil-resistant cable.
- Repair Shops & Garages: Powering automotive lifts, diagnostic equipment, and tools in environments with oils, coolants, and solvents.
SJOOW vs. SOOW: Understanding the Key Difference
SJOOW and SOOW are both highly resilient portable cords with oil-resistant jackets suitable for tough environments. However, the primary difference lies in their voltage rating and implied conductor size/thickness:
- SJOOW:
- Voltage Rating: 300 Volts
- Indicated by the “J” in the suffix. This designation generally applies to lighter-duty cables with smaller conductors (typically 18 AWG to 10 AWG), though sizes can overlap slightly with SOOW in the larger gauges.
- Generally more flexible due to the smaller strands and overall construction around the 300V rating.
- Often slightly more affordable for applications where 600V is not required.
- Ideal for applications needing high flexibility, durability, chemical resistance, but only requiring a 300V rating.
- SOOW:
- Voltage Rating: 600 Volts
- Lacks the “J” suffix, directly indicating its higher voltage capability. SOOW typically covers a wider range of heavier gauges (18 AWG to 2 AWG or larger).
- Features thicker insulation and jacket overall to meet the 600V rating standard, potentially making it slightly stiffer than comparable SJOOW of the same gauge.
- Mandatory for applications requiring 600V insulation.
- Ideal for applications needing the highest level of durability and chemical resistance combined with a 600V requirement (e.g., larger industrial equipment, heavy machinery, primary power feeds on sites).
Summary Table: SJOOW vs SOOW
| Feature | SJOOW Cable | SOOW Cable |
|---|---|---|
| Designation Meaning | S=Service, J=Junior (300V), OO=Oil Resistant (both layers), W=Weather Resistant | S=Service, OO=Oil Resistant (both layers), W=Weather Resistant |
| Voltage Rating | 300 Volts | 600 Volts |
| Key Identifier | ”J” in suffix | Lack of “J” in suffix |
| Typical Conductor Size Range | Smaller gauges (e.g., 18 AWG – 10 AWG) | Wider range (e.g., 18 AWG – 2 AWG and larger) |
| Flexibility | Generally Higher flexibility | Can be slightly less flexible at comparable sizes (due to thicker insulation for 600V) |
| Primary Application Focus | Lower voltage, high-flexibility, demanding environments | Higher voltage, maximum durability demanding environments |
| Cost | Often Slightly Lower (for comparable gauge) | Often Slightly Higher |
Why Choose UL Certified SJOOW from jzdcable.com?
At jzdcable.com, we provide premium quality UL Certified SJOOW rubber cords built for reliability. Our cables offer:
- Guaranteed UL Certification: Adherence to strict safety standards.
- Premium Materials: High-grade copper conductors and robust, oil-resistant rubber compounds.
- Superior Flexibility & Durability: Engineered for tough handling and long service life.
- Excellent Weather & Chemical Resistance: Dependable performance indoors and out.
- Range of Gauges & Configurations: We stock various sizes (AWG) and conductor counts to suit your specific needs.
Conclusion
SJOOW cable is a workhorse in the portable cord family, offering exceptional flexibility, durability, oil/weather resistance, and safety under UL certification at a 300V rating. When your application demands a tough, flexible cable for demanding environments but doesn’t require 600V insulation, UL SJOOW is often the optimal, cost-effective choice. Understanding the critical difference between SJOOW (300V) and SOOW (600V) ensures you select the correct cord for voltage requirements, safety, and optimal performance.
Find the perfect UL SJOOW rubber cord for your next project at jzdcable.com! Browse our stock or Contact Us for custom lengths and configurations.
