20kW Solar Cable Sizing Guide: Optimal PV Cable Specifications

PV Wire vs THHN Wire

As renewable energy adoption accelerates, 20kW solar installations have become a popular solution for homes and businesses. Proper pv cable selection is critical for system safety, efficiency, and longevity. This guide details cable specifications, selection criteria, and installation best practices for 20kW photovoltaic systems.

1. Power Demand Analysis for 20kW Solar Plants

A 20kW system typically generates 80-100kWh daily under ideal conditions. To determine cable requirements:

•​​Key Calculation:​​

I = P / V

Where:

P = System Power (20,000W)

V = System Voltage (typically 360V)

​​Max Current ≈ 55.56A​​

•System Configuration:

≈70 panels (300W each) arranged in series strings → parallel arrays

2. Essential PV Cable Types

Cable Type Application Standards Key Properties
PV Module Cable Panel-to-Inverter Links TUV H1Z2Z2-K/R UV-resistant, 600/1000V DC
Interconnection Cable Inverter-to-Grid Links XLPE Insulation High temp/weather resistance

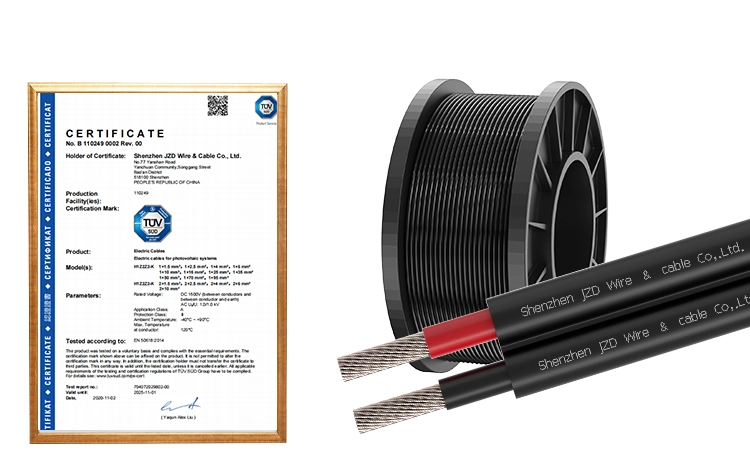

PV cable

3. Cable Selection Criteria for 20kW Systems

A. Cross-Section Specifications
•Copper Conductors Required:​​

•​​6mm²​​: Handles ≈38A (suitable for standard installations)

•10mm²​​: Recommended for runs >100m to minimize voltage drop

B. Temperature Considerations
•Derate ampacity by 20% in environments >40°C

•Use 90°C-rated insulation (e.g., XLPE) for thermal resilience

C. Installation Methods
•​​Ground Mounting:​​

Install supports every 100m with cable spacing ≥2x diameter

•​​Conduit/Wall Runs:​​

Maintain 30% free space for heat dissipation

D. Protection Ratings
•Minimum IP67 rating for outdoor exposure

•UV-stabilized jackets mandatory for direct sunlight

PV cable

4. Critical Wiring Practices

•​​Bend Radius:​​ ≥6x cable diameter

•Separation:​​

Maintain 30cm clearance from AC cables or use shielded conduits

•​​Maintenance:​​

Inspect annually for:

✓ Insulation degradation

✓ Rodent damage

✓ Connection corrosion

5. Key Recommendations

For 20kW solar arrays:

1.Use TUV-certified H1Z2Z2-K 6mm² copper cables for DC runs

2.Upgrade to 10mm² for >50m string connections

3.Implement IP68-rated junction boxes at connection points

4.Schedule infrared thermography scans biannually

​​Why Our Solar Cables Excel:​​

At JZD Cable , our TUV-certified PV cables feature:

•Double-layer XLPE insulation (-40°C to 120°C operating range)

•1000V DC rating with 25-year UV resistance guarantee

•Low-smoke zero-halogen (LSZH) safety compliance

Optimize your solar investment with properly sized cables – contact our technical team for project-specific specifications.
