Choosing the right flexible rubber cable is crucial for the safety, durability, and efficiency of your electrical installations. Among the various European harmonized codes, H05RN-F and H05RR-F are two of the most commonly specified types for portable equipment and tools. While they appear similar, key differences in their construction and capabilities make each suitable for distinct environments. This guide from JZD Cable will break down the specifications, commonalities, and critical differences between H05RN-F and H05RR-F cables to help you make an informed decision for your next project.
What is H05RN-F Cable?

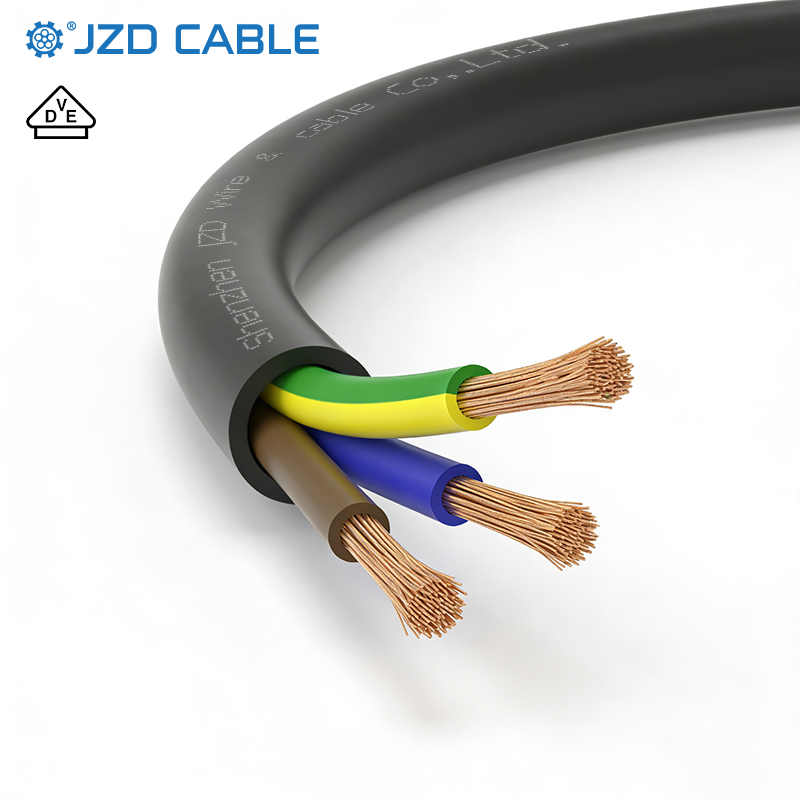

H05RN-F is a harmonized European standard for a heavy-duty rubber-sheathed flexible cable. The code breaks down as follows: H indicates a harmonized standard, 05 denotes 300/500V voltage rating, R stands for rubber insulation, N signifies a polychloroprene (Neoprene) rubber sheath, and F indicates fine-wire flexibility (Class 5 conductor stranding).
This cable is engineered for toughness. Its neoprene outer sheath offers excellent resistance to oils, fuels, chemicals, abrasion, weathering (ozone, UV), and mechanical impacts. It maintains flexibility in a wide temperature range, typically from -25°C to +60°C. H05RN-F is the go-to choice for demanding applications such as construction sites, industrial workshops, agricultural machinery, stage lighting, and outdoor use where exposure to harsh elements is expected.
What is H05RR-F Cable?
H05RR-F is also a harmonized European standard for a rubber-sheathed flexible cable. The designation is similar: H for harmonized, 05 for 300/500V, the first R for rubber insulation, the second R for a general-purpose rubber compound sheath (typically EPR or similar), and F for fine-wire flexibility.
This cable provides good general flexibility and durability for less extreme conditions. Its rubber sheath offers resistance to abrasion and some mechanical stress but has more limited resistance to oils, chemicals, and prolonged outdoor weathering compared to Neoprene. Its operating temperature range is usually around -25°C to +60°C. H05RR-F is commonly used for domestic appliances, power tools, indoor machinery, and light industrial applications where exposure to severe oils and constant outdoor harshness is not a primary concern.
Commonalities Between H05RN-F and H05RR-F Cables
Despite their differences, these cable types share several important characteristics:
- Voltage Rating: Both are rated at 300/500V.
- Conductor Flexibility: Both feature Class 5 finely stranded copper conductors, offering high flexibility for moving applications.
- Core Identification: Both use color-coded cores (e.g., blue for neutral, green/yellow for earth) for easy installation.
- Basic Construction: Both have rubber insulation and a rubber-based outer sheath.
- Primary Use: Both are designed for connecting portable equipment, tools, and machinery to the power supply.
- Standards: They comply with relevant European harmonized standards (HD 22.12 S2 for H05RN-F, HD 22.10 S2 for H05RR-F).
Key Differences Between H05RN-F and H05RR-F Cables (with Comparison Table)
The core distinction lies in the composition and performance of the outer sheath. This translates into different application profiles.
|
Feature
|
H05RN-F Cable
|
H05RR-F Cable
|
|---|---|---|
|
Sheath Material
|
Polychloroprene (Neoprene) Rubber
|
General Purpose Rubber (e.g., EPR)
|
|
Oil & Chemical Resistance
|
Excellent. Highly resistant to oils, fats, fuels, and many chemicals.
|
Moderate/Fair. Suitable for occasional contact but not for prolonged immersion or aggressive chemicals.
|
|
Weather & Ozone Resistance
|
Excellent. Superior performance against sunlight (UV), ozone, and moisture. Ideal for permanent outdoor use.
|
Good for temporary use. Can withstand outdoor conditions but may degrade faster than H05RN-F under constant exposure.
|
|
Abrasion & Mechanical Stress
|
Very High. Extremely tough and resistant to crushing, abrasion, and tearing.
|
Good. Durable for typical industrial handling but less robust than H05RN-F in severe environments.
|
|
Temperature Range
|
Approx. -25°C to +60°C (can vary slightly by manufacturer).
|
Approx. -25°C to +60°C (can vary slightly by manufacturer).
|
|
Typical Applications
|
Heavy industry, construction sites, quarries, marine deck areas, welding leads, outdoor events, agriculture.
|
Workshops, light industrial units, domestic appliances, indoor power tools, machinery not exposed to harsh agents.
|
|
Cost
|
Higher, due to the premium Neoprene sheath.
|
More economical, offering a cost-effective solution for standard duties.
|
Selection Guide: Which Cable Should You Choose?
Choosing between H05RN-F and H05RR-F boils down to your specific operating environment.
Choose H05RN-F Cable if:
- Your application is primarily outdoors.
- The cable will be exposed to oils, fuels, or aggressive chemicals.
- It will be used in rough industrial environments (construction, mining, heavy engineering) with high risk of abrasion and impact.
- You need maximum durability and longevity under harsh conditions.
- Examples: Portable generators on site, irrigation pumps, outdoor concert equipment, workshop floor machinery in auto garages.
Choose H05RR-F Cable if:
- Your application is primarily indoors or in sheltered outdoor locations.
- Exposure to oils and chemicals is occasional and mild.
- You need a reliable, flexible cable for general-purpose tools and equipment.
- Budget is a key consideration, and the extreme protections of H05RN-F are not required.
- Examples: Bench grinders, indoor woodworking tools, commercial cleaning machines, internal wiring for control panels.
Power Your Projects with Confidence from JZD Cable
Selecting the correct cable is not just about specification—it’s about safety, reliability, and total cost of ownership. At JZD Cable, we manufacture premium-quality H05RN-F and H05RR-F cables that rigorously meet international standards.
Our cables feature:
- High-purity, finely-stranded copper conductors for optimal flexibility and conductivity.
- Premium-grade rubber compounds—Neoprene for H05RN-F and robust synthetic rubber for H05RR-F.
- Precise construction ensuring consistent performance and durability.
- Compliance with relevant HAR, CE, and RoHS directives.
Whether you’re equipping a construction fleet or sourcing cables for appliance manufacturing, JZD Cable provides reliable solutions tailored to your needs. Visit our product pages at jzdcable.com for detailed specifications, or contact our team for personalized assistance in selecting the ideal cable for your application.
