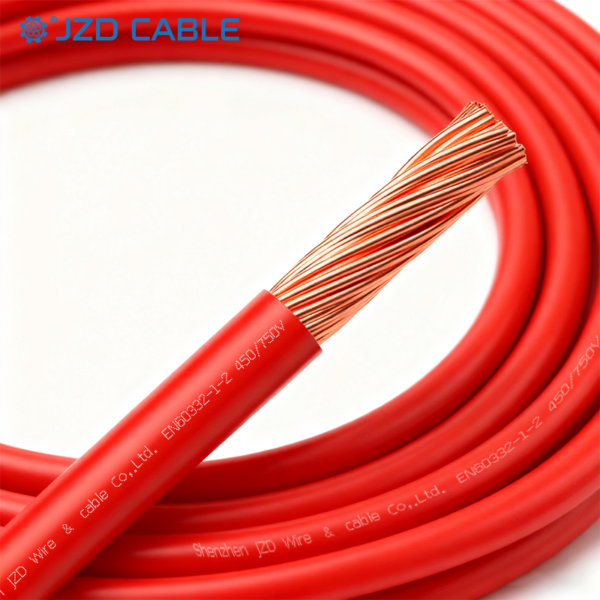

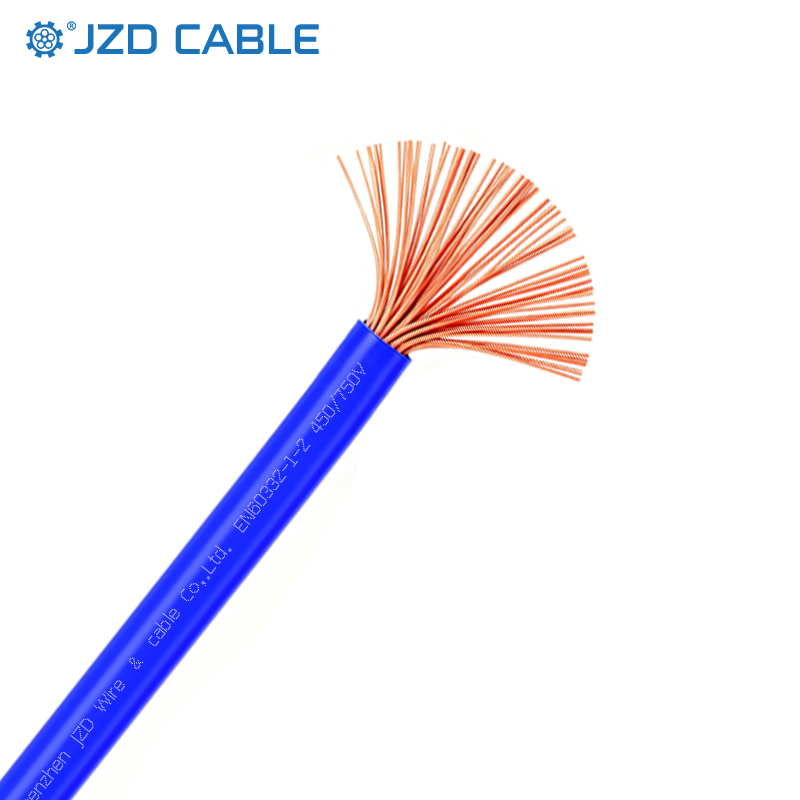

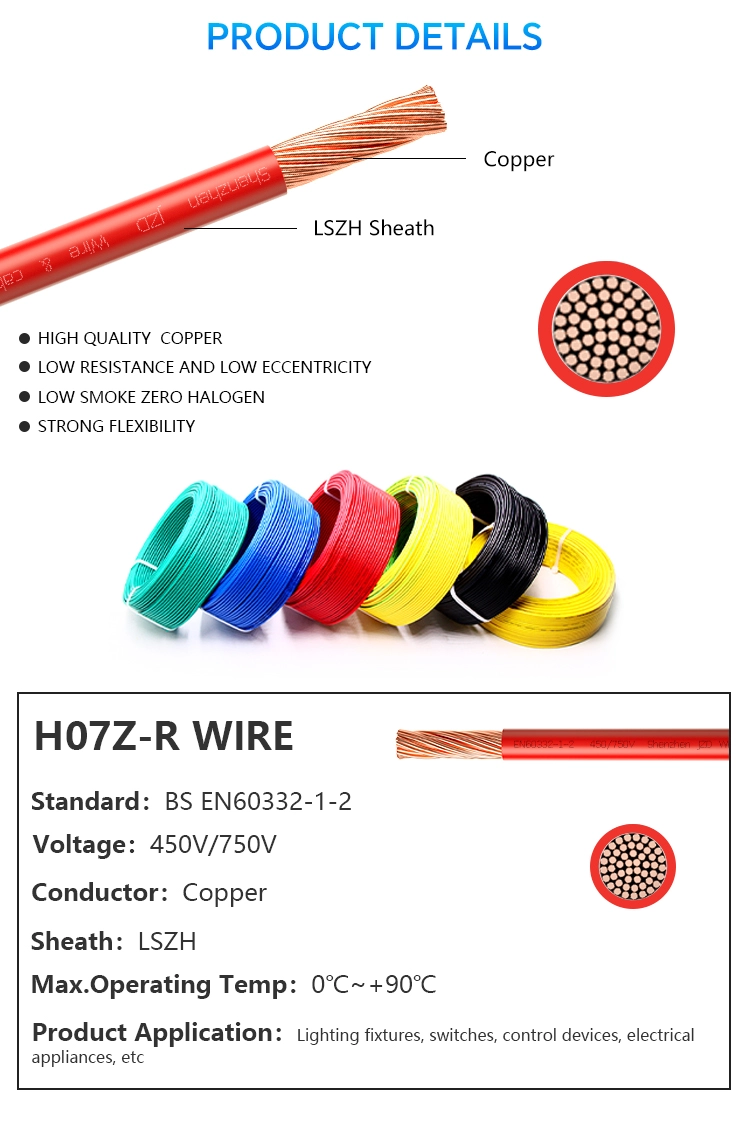

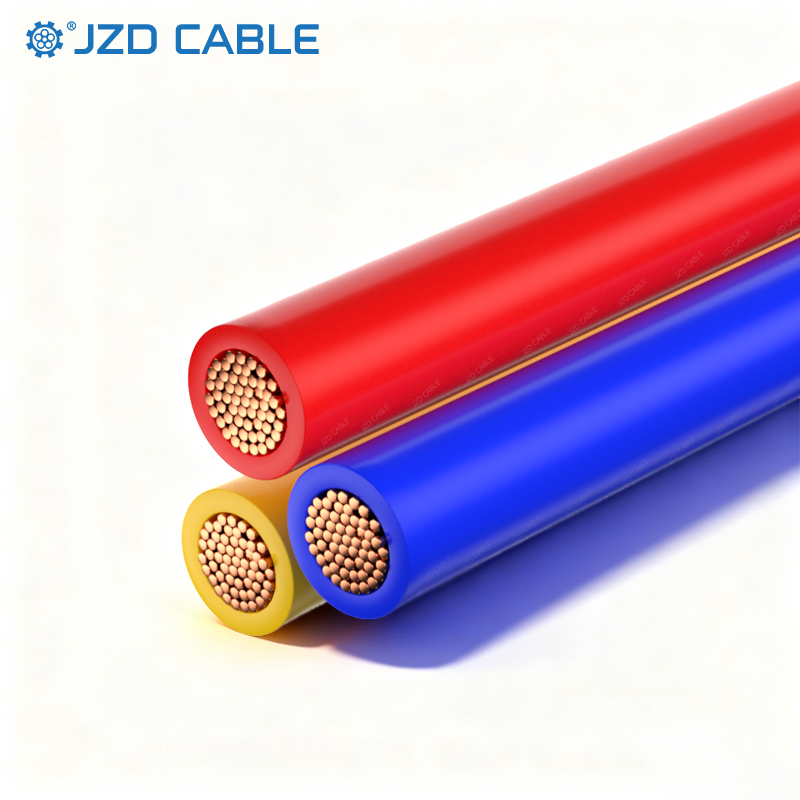

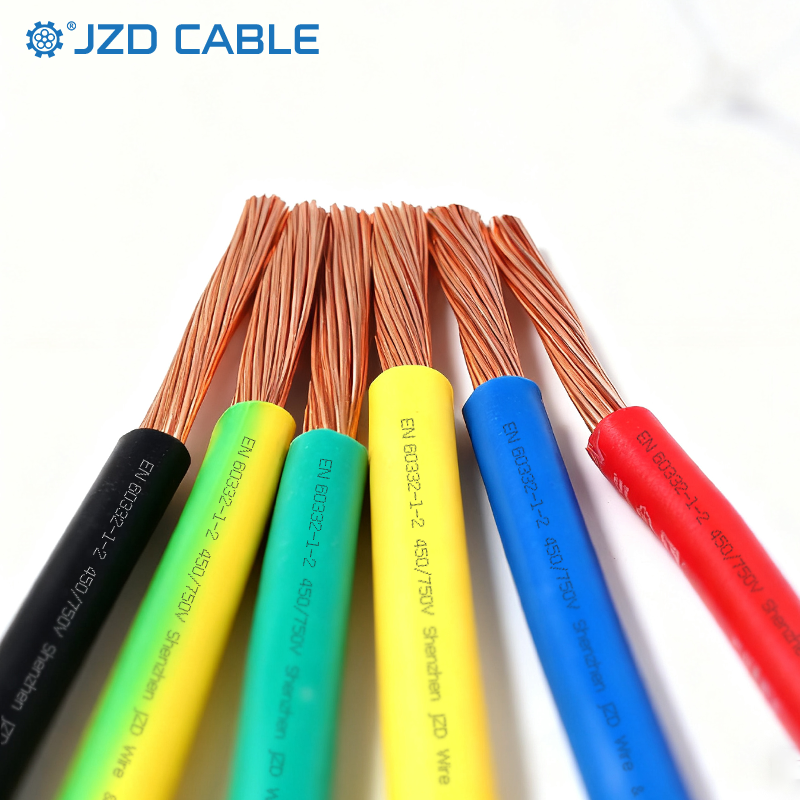

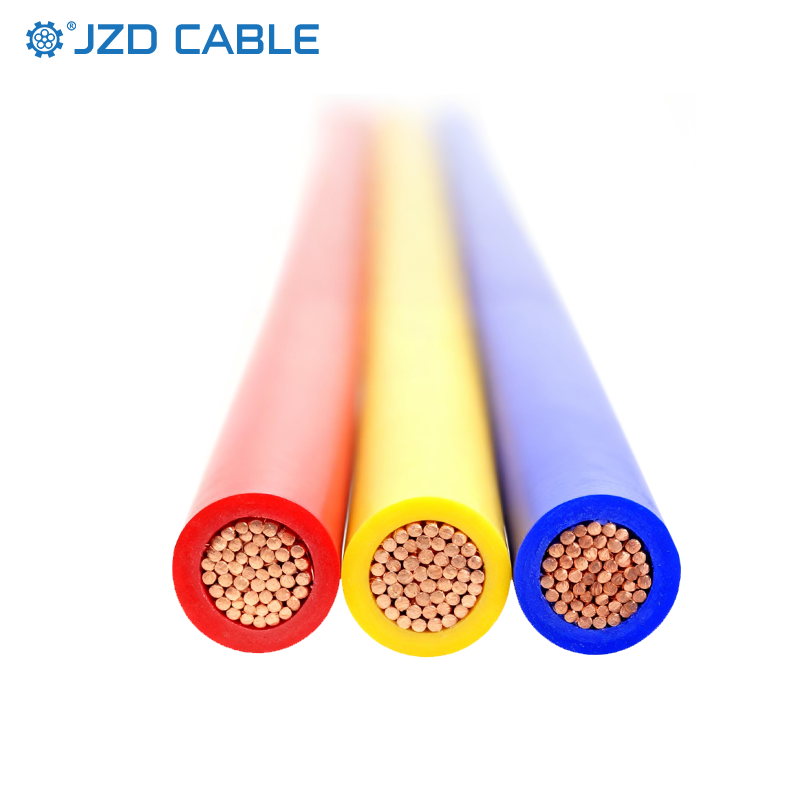

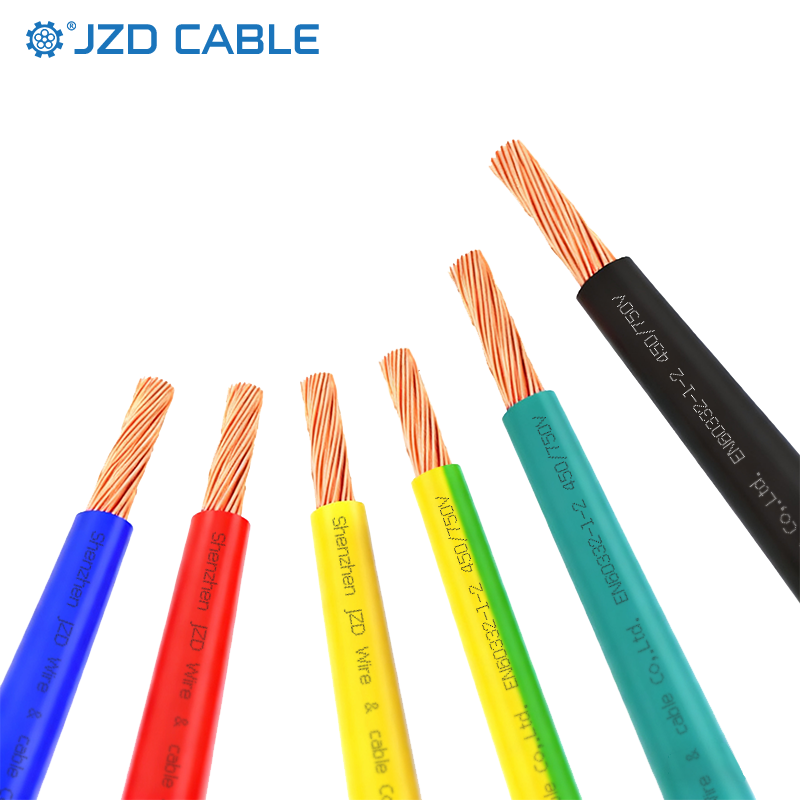

H07Z-R Cable
The H07Z-R is a premium, harmonized Low Smoke Zero Halogen (LSZH) Flame Retardant cable designed for safe and reliable fixed installations. It is manufactured in compliance with the European standard EN 50525-3-41, ensuring high performance in demanding environments where enhanced fire safety is critical. The cable features stranded bare copper conductors, insulation, and a sheath made from specially formulated halogen-free compounds. Its primary design purpose is to drastically reduce the emission of corrosive gases, dense smoke, and toxic fumes when exposed to fire, thereby protecting vital equipment and ensuring safer evacuation routes. Key attributes include excellent electrical properties, good flexibility for easier handling, and long-term durability.
Key Features:
- Conductor: Plain annealed copper, stranded (Class 2).
- Rated Voltage: 450/750V.
- Temperature Rating: -15°C to +70℃ for fixed installation.

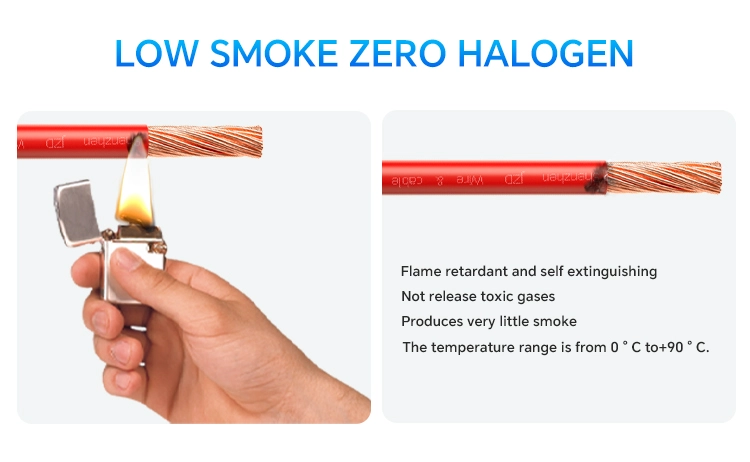

- LSZH & Flame Retardant: Does not propagate flame and emits very low levels of smoke and corrosive halogen acids (compliant with IEC 60754-1/-2 and IEC 61034).
- UV Resistant: Suitable for exposed outdoor conditions (when specified).
- Flexible & Durable: Designed for easy routing in fixed applications and long-term reliability.
Specification
|
Nominal cross section area
|
Nominal Insulation Thickness
|
Nominal Overall diameter
|
Approx Weight
|
Max. D.C. Resistance of Conductor (20°C)
|
|
mm²
|
mm
|
mm
|
kg/km
|
Ω/km
|
|
1.5
|
0.7
|
2.9
|
22
|
12.1
|
|
2.5
|
0.8
|
3.6
|
32
|
7.41
|
|
4
|
0.8
|
4.1
|
50
|
4.61
|
|
6
|
0.8
|
4.7
|
71
|
3.08
|
|
10
|
1
|
5.9
|
110
|
1.83
|
|
16
|
1
|
6.8
|
164
|
1.15
|
|
25
|
1.2
|
8.4
|
256
|
0.727
|
|
35
|
1.2
|
9.4
|
346
|
0.524
|
|
50
|
1.4
|
11
|
473
|
0.387
|
|
70
|
1.4
|
12.7
|
674
|
0.268
|
|
95
|
1.6
|
14.7
|
913
|
0.193
|
|
120
|
1.6
|
16.2
|
1150
|
0.153
|
|
150
|
1.8
|
18
|
1461
|
0.124
|
|
185
|
2
|
20
|
1749
|
0.0991
|
|
240
|
2.2
|
23
|
2317
|
0.0754
|
|
300
|
2.4
|
25.2
|
3049
|
0.0601
|
|
400
|
2.6
|
28.4
|
3657
|
0.047
|
|
500
|
2.8
|
31.8
|
4700
|
0.0366
|
|
630
|
2.8
|
38.1
|
5890
|
0.0283
|
Application
The H07Z-R LSZH cable is engineered for fixed wiring installations where minimizing fire hazard and ensuring clear visibility during evacuation are paramount. Its robust, safety-oriented construction makes it the preferred choice for a wide range of applications:
- Power Distribution & Control Panels: Internal wiring of switchgear, control cabinets, and distribution boards in industrial and commercial facilities.
- Industrial Machinery & Automation: Fixed wiring within machine tools, assembly lines, conveyor systems, and control circuits.
- Public Buildings & Infrastructure: Mandatory for hospitals, schools, shopping malls, theaters, airports, railway stations, and subways due to its life-saving low smoke and toxicity properties.
- Emergency Systems: Installation for lighting, alarm, and ventilation circuits where circuit integrity during fire is crucial.
- Cable Management Systems: Suitable for installation in cable trays, ducts, and conduits, especially in confined or poorly ventilated public spaces.
