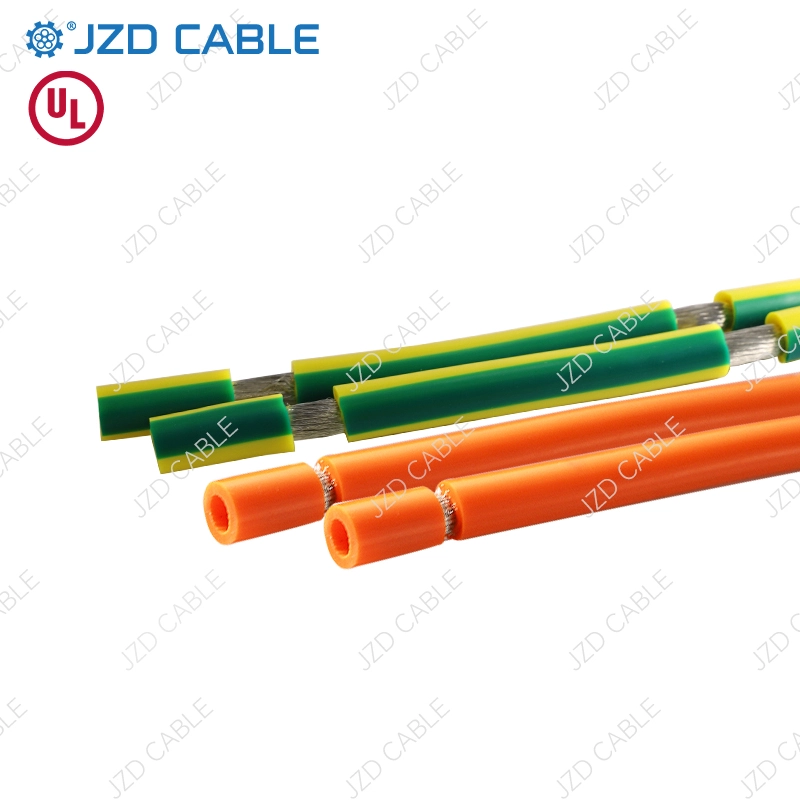

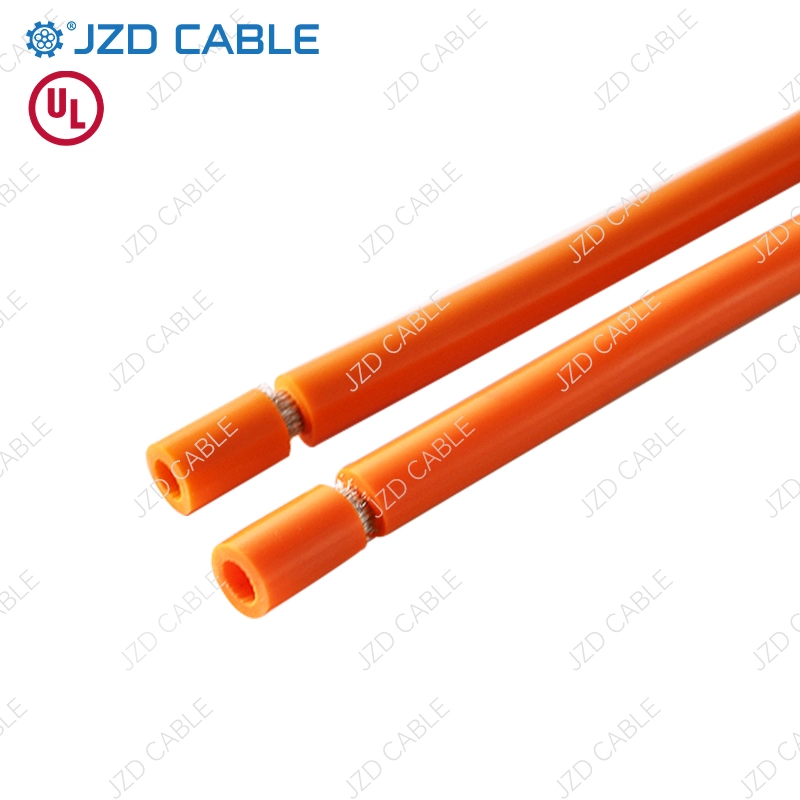

UL3512 Hook-Up Wire Orange

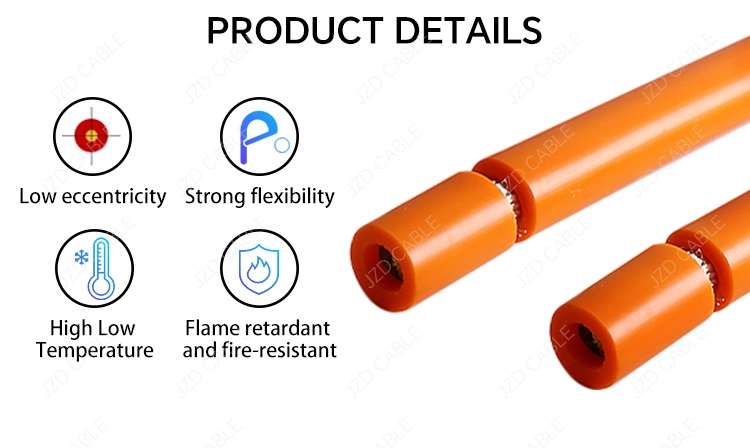

The Orange UL3512 Silicone Wire features vibrant color-coded insulation for instant identification in complex wiring systems. Engineered with flexible silicone rubber insulation, it delivers superior heat resistance (up to 200°C), excellent aging resilience, and optimal electrical insulation. Its highly visible orange jacket simplifies maintenance while meeting rigorous UL flame-retardant standards. Ideal for high-demand environments requiring both reliability and safety compliance.

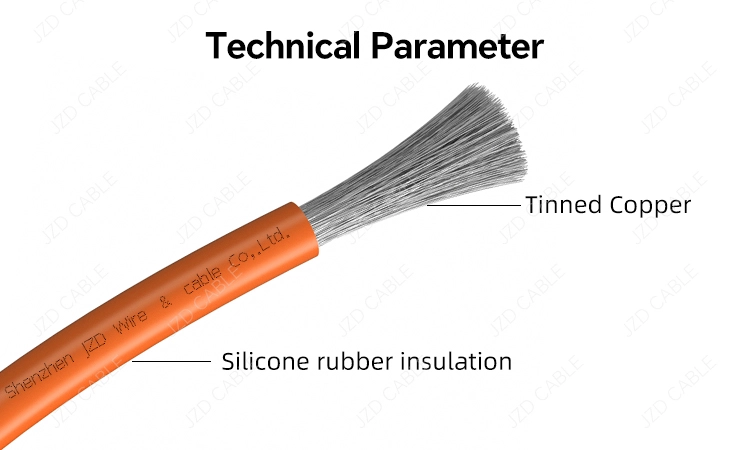

Specification
|
UL Style &CUL Type
|
Conductor
|
Insulation
|
Stand Put-up
|
Maximun Resistance (Q/Km)
|
|||
|
AWG
|
No./mm
|
Nom. Thick
|
Nom.Dia
|
Ft/Coil
|
M/Coil
|
||
|
UL3512 (Stranded)
|
22
|
12/0.18
|
0.76
|
2.30
|
1000
|
305
|
59.40
|
|
22
|
20/0.18
|
0.76
|
2.50
|
1000
|
305
|
36.70
|
|
|
18
|
30/0.18
|
0.76
|
2.70
|
1000
|
305
|
23.20
|
|
|
16
|
50/0.18
|
0.76
|
3.10
|
1000
|
305
|
14.60
|
|
|
14
|
80/0.18
|
0.76
|
3.50
|
1000
|
305
|
8.96
|
|
|
12
|
65/0.25
|
0.76
|
4.00
|
1000
|
305
|
5.64
|
|
|
10
|
105/0.25TS
|
1.00
|
5.00
|
1000
|
305
|
3.63
|
|
|
8
|
168/0.25TS
|
1.00
|
6.00
|
1000
|
305
|
2.31
|
|
|
6
|
266/0.25TS
|
1.50
|
8.00
|
1000
|
1.43305
|
1.43
|
|
|
4
|
420/0.25TS
|
1.50
|
9.00
|
1000
|
305
|
0.88
|
|
|
2
|
665/0.25TS
|
2.20
|
12.00
|
1000
|
305
|
0.56
|
|
Application
1. Aerospace & Drones:
Wiring for avionics, drone power systems, and onboard electronics, ensuring stability under extreme temperatures.
2. Home & Lighting:
Internal wiring for smart lighting fixtures, wall lamps, and residential appliances where heat resistance is critical.
3. E-Mobility & Power Storage:
High-current circuits in EVs, scooters, and portable power banks, resisting vibration and heat degradation.
4. Industrial Automation:
Control cabinets, robotic arms, and factory machinery exposed to oils, chemicals, or continuous operation.
5. Outdoor & Harsh Environments:
Solar installations and marine equipment, leveraging UV/weather-resistant insulation.
6. Consumer Electronics:
Durable connections in handheld tools, medical devices, and charging systems needing bend resistance.
