UL3239 Hook-Up Wire
UL 3239 Wire by JZD Cable is a specialized high-voltage DC (HVDC) thermoset/silicone-insulated wire engineered for extreme electrical and thermal environments. Ideal for direct current systems requiring 10kV to 60kV voltage stability and continuous operation at 150°C to 200°C.
Critical Specifications:
- Voltage Rating: 10kV to 60kV DC (higher ratings available for specific constructions)
- Temperature Range: -90°C to +200°C (short-term peak)

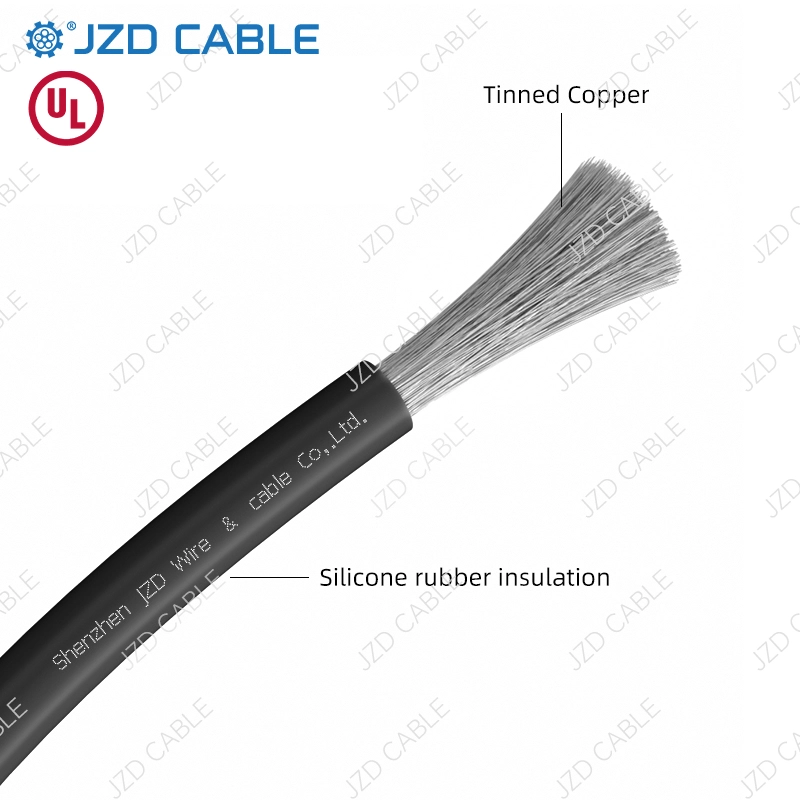

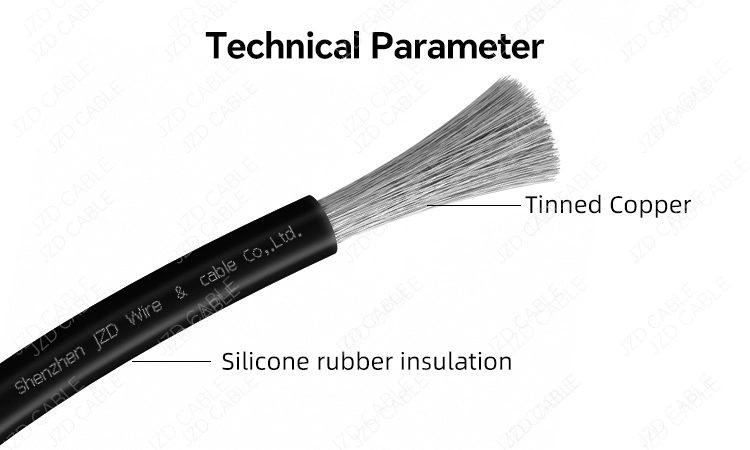

- Insulation: Thermoset Silicone or Fluoropolymer (heat-cured for dielectric integrity)
- Conductor: Stranded tinned copper (custom AWG/solid core options)
- Certifications: UL 3239 Recognized, RoHS 3, REACH
- Key Traits: Ozone-resistant, flame-retardant (FT4), low capacitance
Specification
| TEVELEC NUMBER | AWG Size | Stranding | Nominal Insulation | Nominal O.D. | D.C. Voltage |
|---|---|---|---|---|---|
| T0137 | 22 | 7 | .050 | .131 | 20,000 |
| T0138 | 20 | 7 | .050 | .138 | 25,000 |
| T0148 | 18 | 16 | .062 | .174 | 25,000 |
| T0129 | 18 | 16 | .097 | .244 | 40,000 |
| T0149 | 16 | 26 | .062 | .186 | 25,000 |
| T0130 | 16 | 26 | .097 | .256 | 40,000 |
| T0150 | 14 | 41 | .062 | .204 | 25,000 |
| T0131 | 14 | 41 | .097 | .274 | 40,000 |
| T0132 | 12 | 65 | .097 | .290 | 40,000 |
| T0133 | 10 | 105 | .097 | .324 | 40,000 |
Application
Designed for mission-critical high-voltage DC systems:
- Electric Vehicles (EV/Hybrid)
- Battery pack interconnects, charging systems, and inverter wiring (60kV endurance).
- Aerospace & Defense
- Avionics, UAV power systems, and radar equipment exposed to rapid thermal cycles.
- Renewable Energy
- HVDC solar farms, wind turbine generators, and battery storage (BMS) links.
- Industrial Automation
- Power supplies for CNC machinery, X-ray equipment, and semiconductor manufacturing.
- Medical Imaging
- MRI/PET scanner high-voltage coils and radiation therapy systems.
Certification
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
