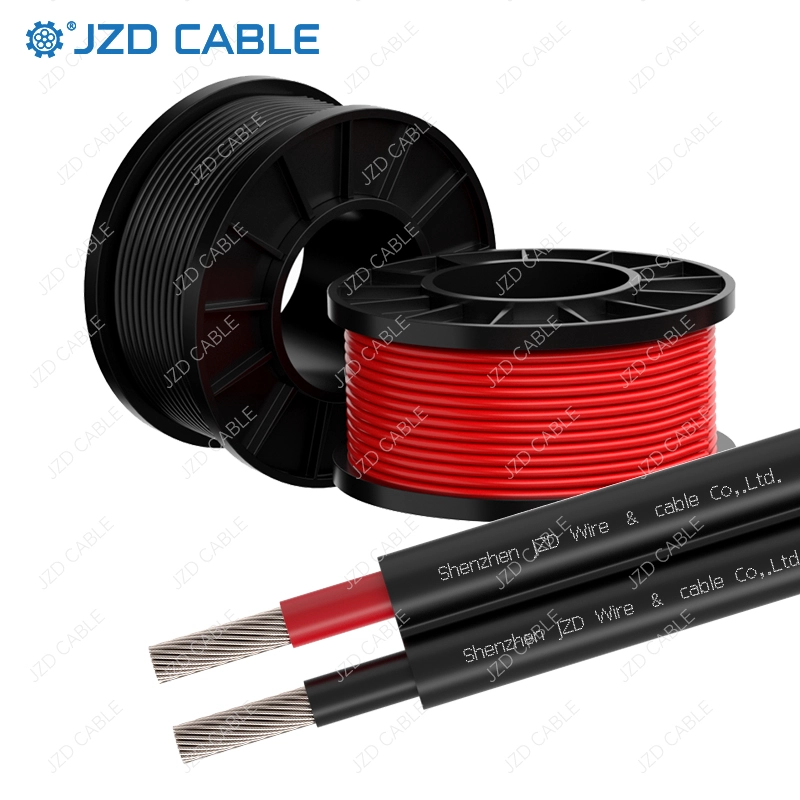

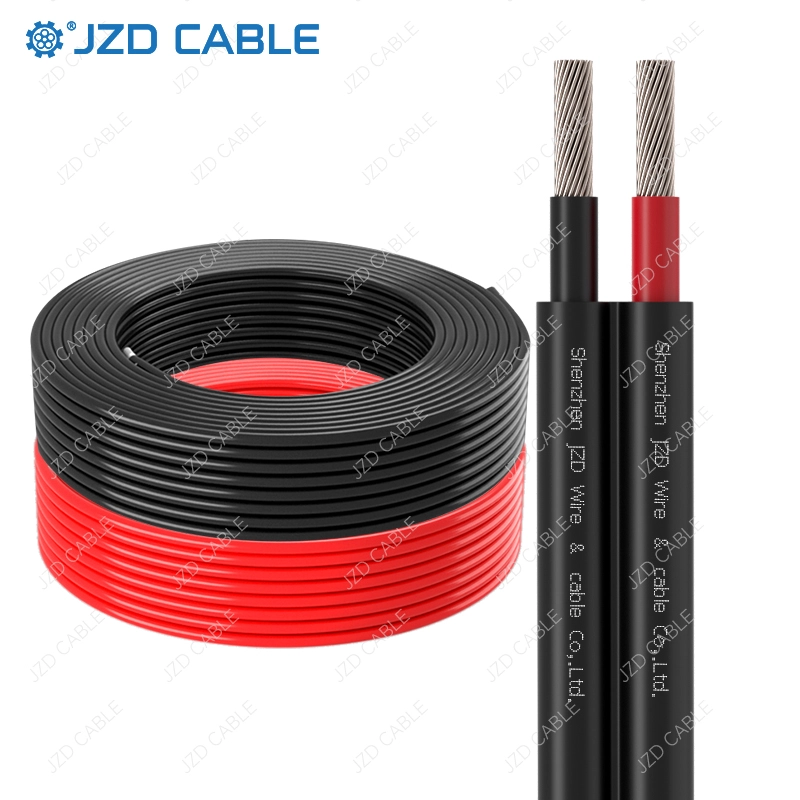

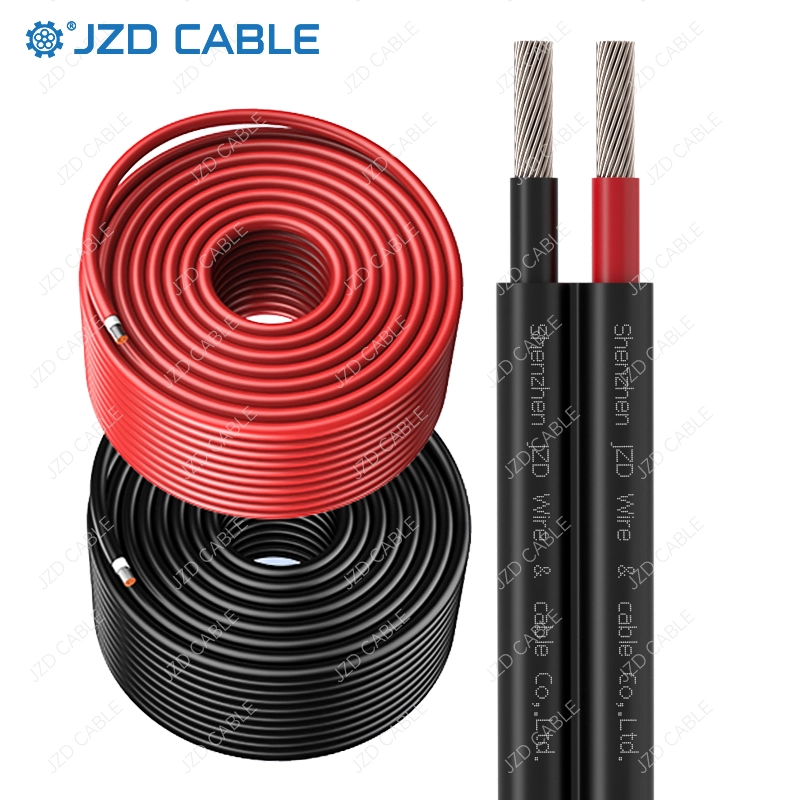

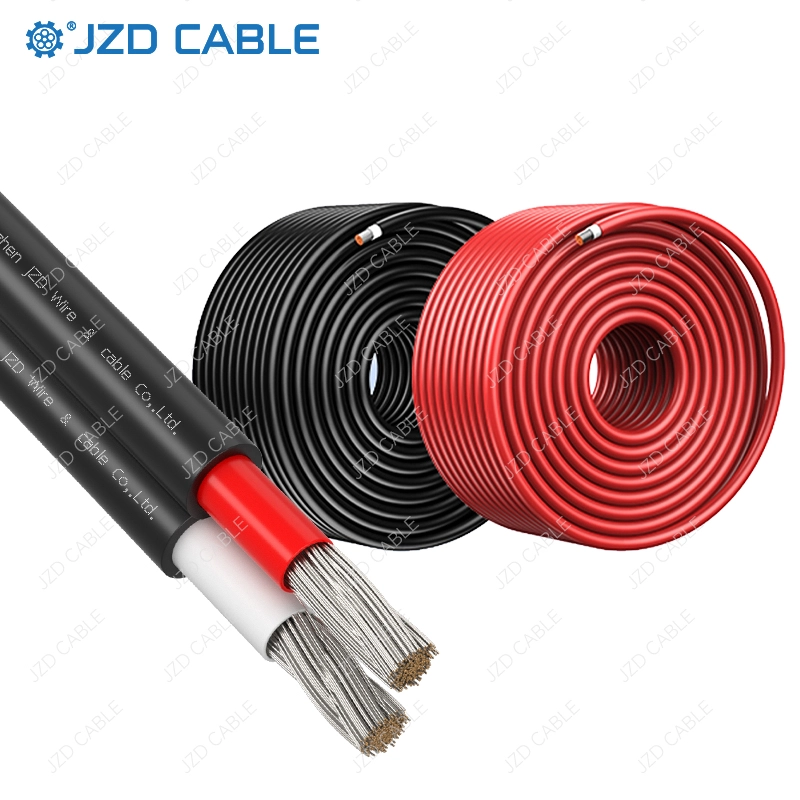

Twin Core Solar Cable
Engineered for high-efficiency industrial solar systems, our Twin Core Solar PV Cable delivers unparalleled safety and durability. Certified to TUV EN 50618 (H1Z2Z2-K), it features tinned copper conductors and UV-resistant XLPO insulation for maximum power transmission in extreme environments (-40°C to +120°C). Ideal for commercial/utility solar projects requiring reliable DC power transfer.
Key Features:

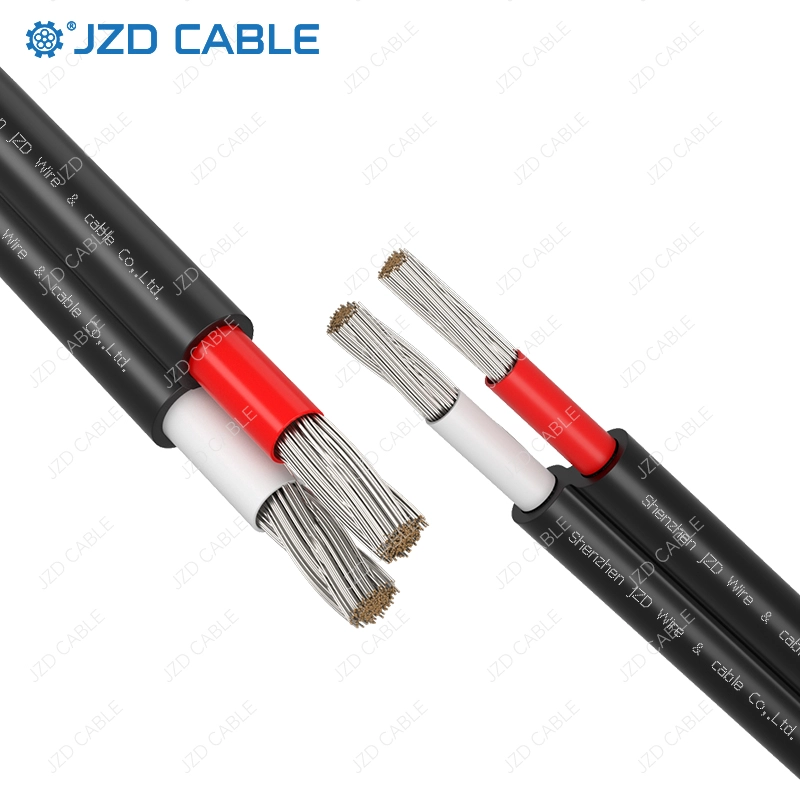

✅ Double-Core Design: Simplified routing and reduced installation time.

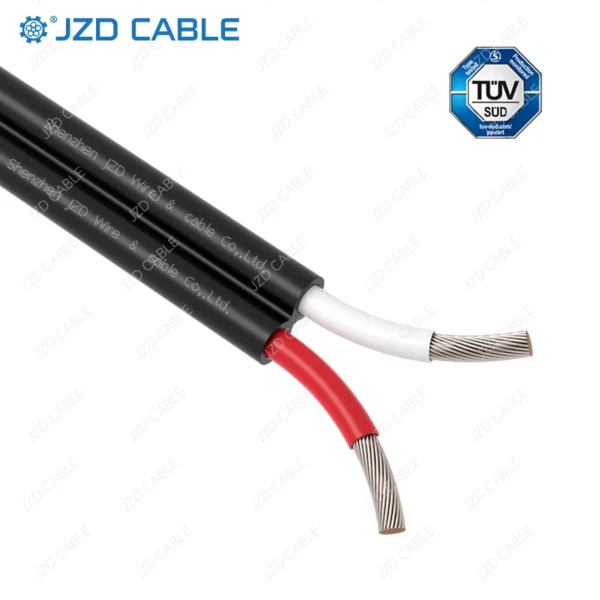

✅ TUV-Certified: Guarantees compliance with European safety & performance standards.
✅ Weatherproof Shield: Resists extreme temperatures (-40°C to +120°C), UV radiation, and moisture.

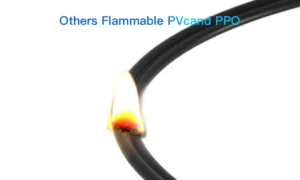

✅ Fire-Retardant: Low-smoke, zero-halogen (LSZH) insulation reduces toxic emissions.

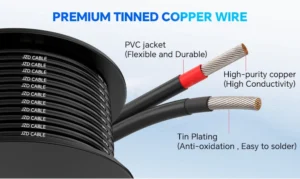

✅ High Conductivity: Tinned copper conductors for corrosion resistance and efficient power flow.
Specification
| Conductor | Nominal Insulation Thickness (mm) |
Nominal sheath Thickness (mm) |
Approx. Overall Diam. (mm) |
Approx. Weight (kg/km) |
Minimum Insulation |
Max. Conductor Resistance DC@20℃ (MΩ.km) |
||
| Nominal Area (mm²) |
Approx. Diam. (mm) |
20℃ (MΩ.km) |
90℃ (MΩ.km) |
|||||
| 1×1.5 | 1.57 | 0.7 | 0.8 | 4.7 | 38 | 860 | 0.86 | 13.7 |
| 1×2.5 | 2.04 | 0.7 | 0.8 | 5.2 | 45 | 690 | 0.69 | 8.21 |
| 1×4 | 2.6 | 0.7 | 0.8 | 5.6 | 60 | 580 | 0.58 | 5.09 |
| 1×6 | 3.16 | 0.7 | 0.8 | 6.3 | 90 | 500 | 0.50 | 3.39 |
| 1×10 | 4.5 | 0.7 | 0.8 | 7.6 | 131 | 420 | 0.42 | 1.95 |
| 1×16 | 5.7 | 0.7 | 0.9 | 9.0 | 187 | 340 | 0.34 | 1.24 |
| 1×25 | 7.2 | 0.9 | 1.0 | 11.2 | 267 | 340 | 0.34 | 0.795 |
| 1×35 | 8.5 | 0.9 | 1.1 | 12.7 | 368 | 290 | 0.29 | 0.565 |
| 1×50 | 9.4 | 1.0 | 1.2 | 14.5 | 560 | 270 | 0.27 | 0.393 |
| 1×70 | 11.1 | 1.1 | 1.2 | 16.5 | 756 | 250 | 0.25 | 0.277 |
| 1×95 | 13.1 | 1.1 | 1.3 | 18.7 | 1036 | 220 | 0.22 | 0.210 |
| 1×120 | 14.8 | 1.2 | 1.3 | 20.4 | 1309 | 210 | 0.21 | 0.164 |
| 1×150 | 16.5 | 1.4 | 1.4 | 22.7 | 1636 | 210 | 0.21 | 0.132 |
| 1×185 | 18.3 | 1.6 | 1.6 | 25.2 | 2000 | 200 | 0.20 | 0.108 |
| 1×240 | 21.0 | 1.7 | 1.7 | 28.5 | 2607 | 200 | 0.20 | 0.0817 |
| 2×1.5 | 1.57 | 0.7 | 0.8 | 4.8*10.5 | 78 | 860 | 0.86 | 13.7 |
| 2×2.5 | 2.04 | 0.7 | 0.8 | 5.2*11.8 | 92 | 690 | 0.69 | 8.21 |
| 2×4 | 2.6 | 0.7 | 0.8 | 5.6*12.8 | 122 | 580 | 0.58 | 5.09 |
| 2×6 | 3.16 | 0.7 | 0.8 | 6.3*13.7 | 182 | 500 | 0.50 | 3.39 |
| 2×10 | 4.5 | 0.7 | 0.8 | 8.0*16.8 | 264 | 420 | 0.42 | 1.95 |
| 2×16 | 5.7 | 0.7 | 0.9 | 9.0*19.8 | 376 | 340 | 0.34 | 1.24 |
Application
Our twin-core solar cables are tailored for seamless integration into diverse solar energy systems:
- Rooftop Solar Arrays:
Secure wiring for residential/commercial rooftop panels, minimizing space and resistance loss. - Solar Farms & Utility-Scale Plants:
Durable connections across large-scale ground-mounted installations; withstands harsh outdoor conditions. - Off-Grid Solar Systems:
Reliable power transfer in remote setups (e.g., cabins, telecom stations) with high resistance to weathering. - Battery Storage Links:
Safe high-voltage connections between PV arrays, charge controllers, and battery banks. - Agrivoltaics & Floating Solar:
Water/chemical-resistant performance for farms and aquatic installations.

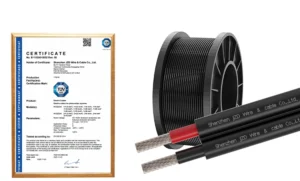

Certification
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
FAQ
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
