JZD Wholesale 16mm²-50mm² Flexible Copper Welding Cable YC Rubber Insulated 450/750V
Standard
EN50525
Voltage
450/750V
Conductor
Copper
Insulation
Rubber
Max Operating Temp
-20℃~+60℃

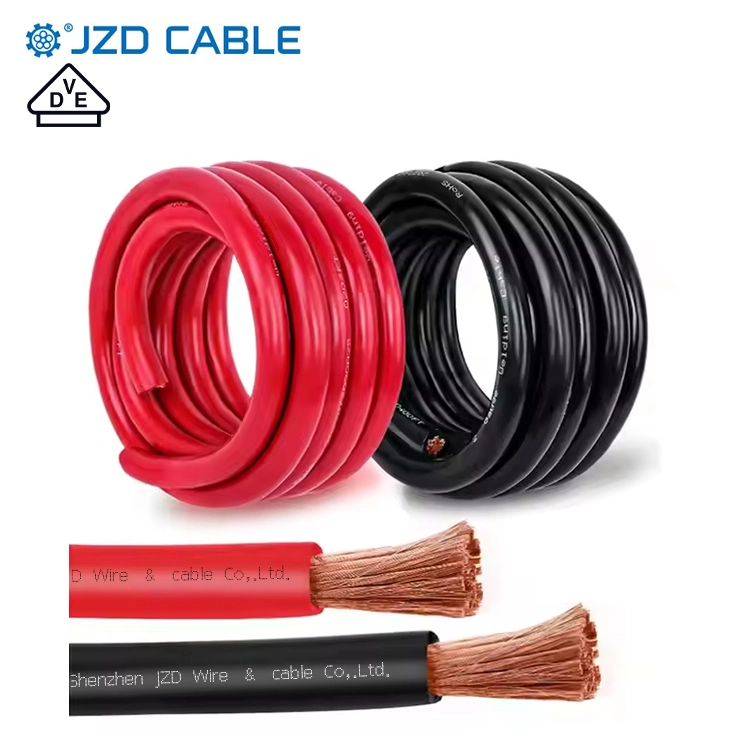

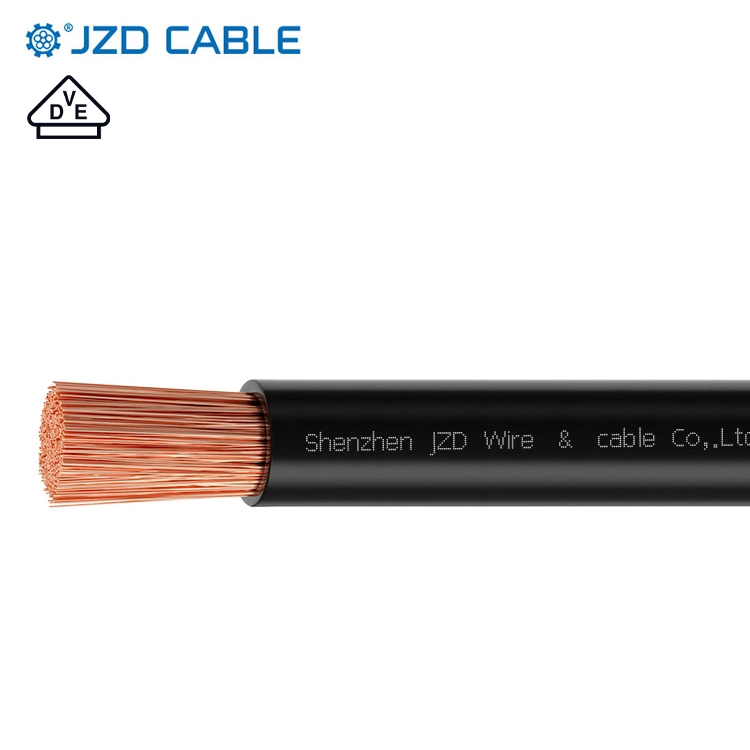

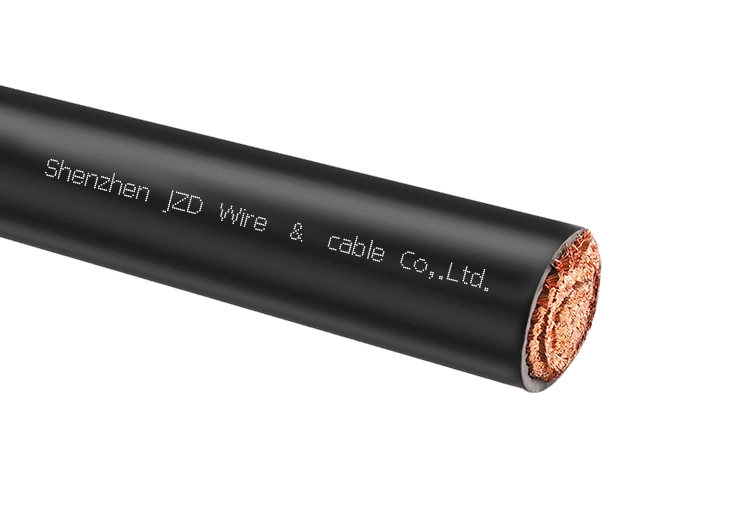

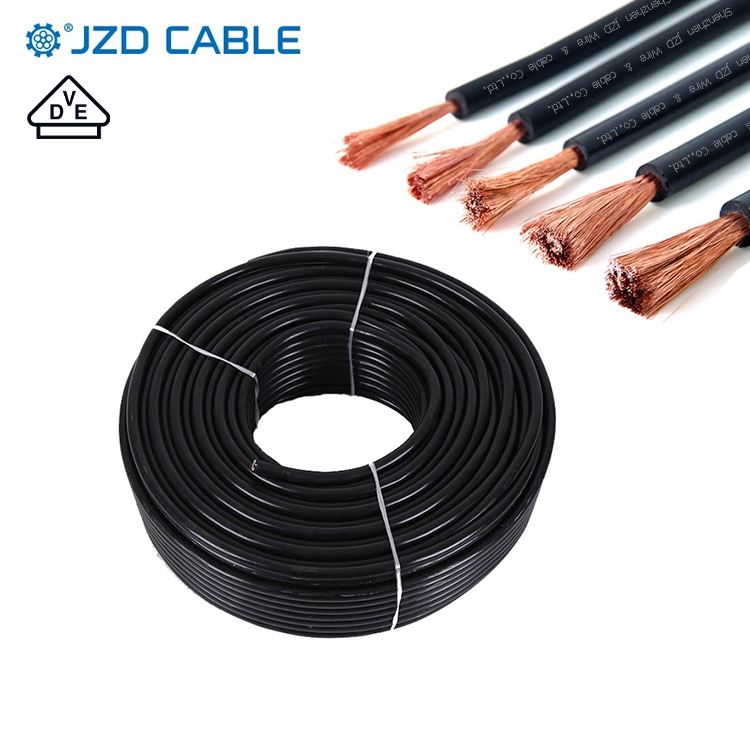

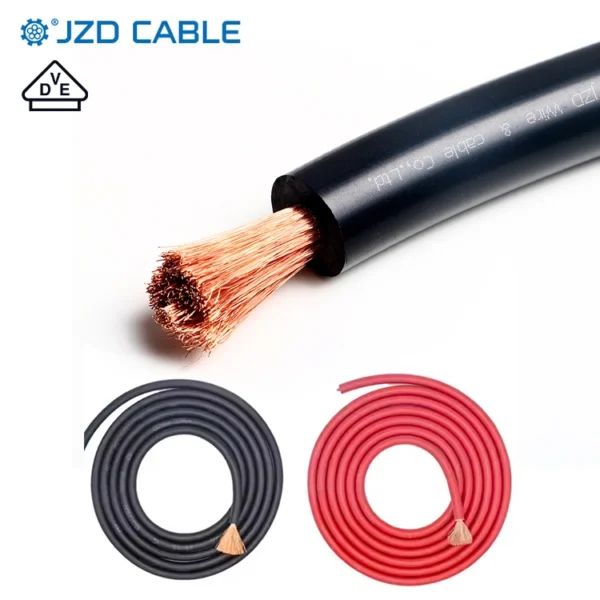

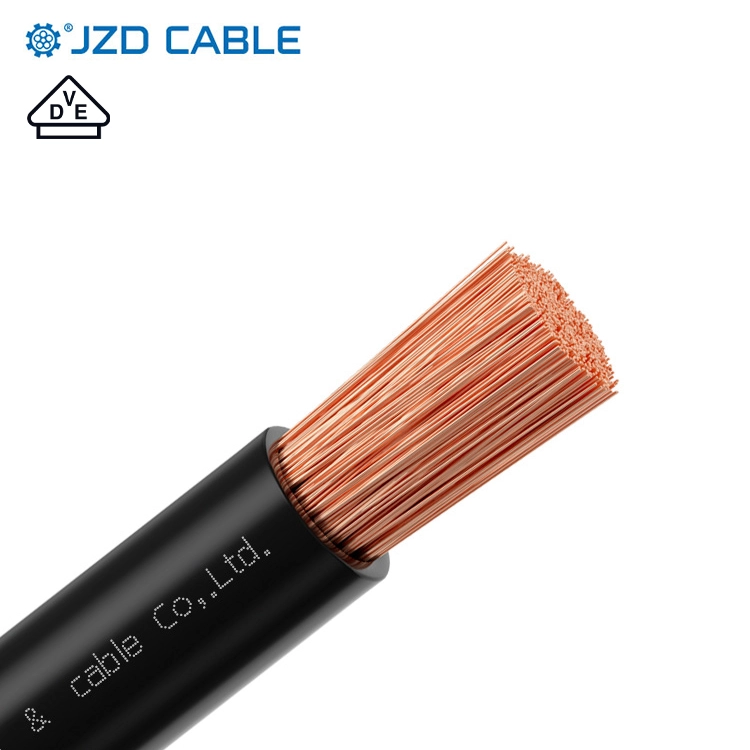

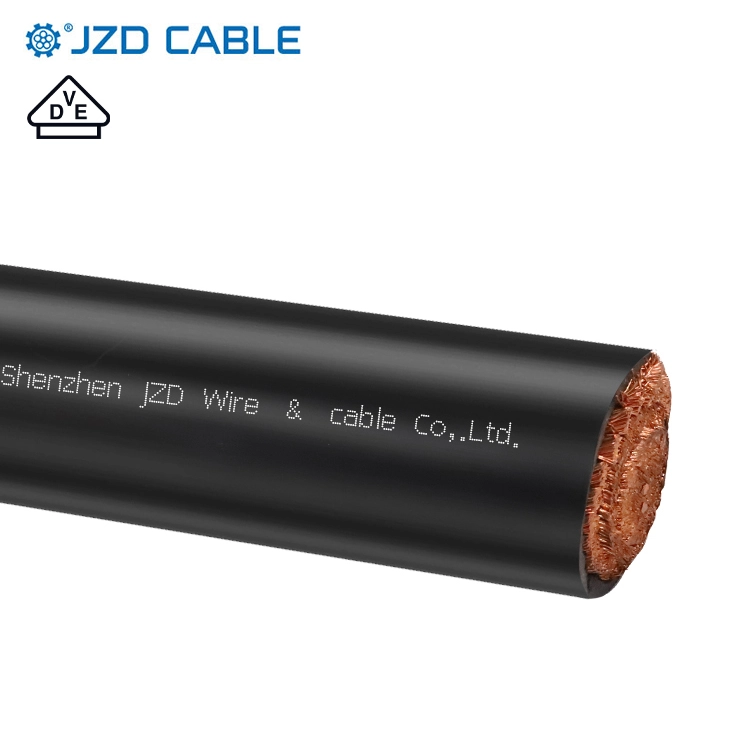

Flexible Rubber Insulated Welding Cable
Engineered for demanding industrial environments, JZD’s YC welding cable delivers superior conductivity and flexibility with pure electrolytic copper conductors encased in heavy-duty rubber insulation. Meeting IEC 60245 standards, this 450/750V-rated cable withstands high temperatures (-40°C to +70°C), abrasion, oils, and weather extremes. Optimized for high-current transmission in welding applications, our cables minimize voltage drop and resist cracking for reliable, safe operation.

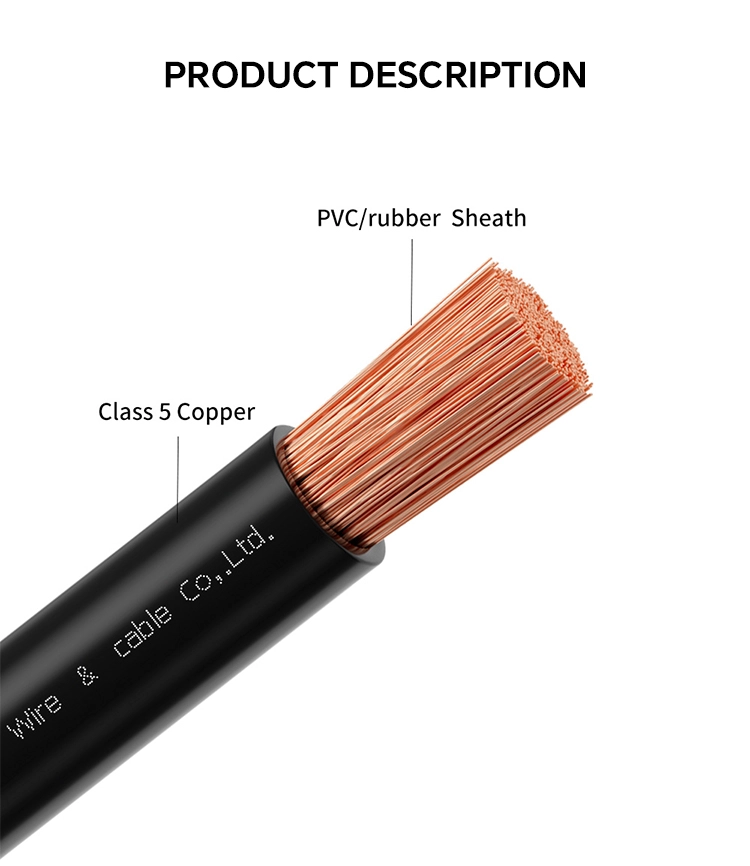

Key Features
- Premium Copper Core: 99.9% electrolytic copper for maximum conductivity & lower resistance
- Heavy-Duty Rubber Insulation: Oil-resistant, heat-resistant (-40°C to +70°C), UV-stabilized
- Extreme Flexibility: Easy handling in tight spaces and mobile welding setups
- High Voltage Rating: 450/750V compliance (IEC 60245 / YC standard)
- Durable & Safe: Flame-retardant, abrasion-resistant, and weather-proof
Specification
450/750V Flexible Copper Rubber Insulation Electric Welding Cable
|
||||||
Specifications
|
Voltage: AC 200V~DC 400V
Standard: IEC60245 Uses: This product is suitable for electric welding machines with a ground voltage not greater than 200V and a pulsating current value of 400V. |
|||||
Conductor Nominal Section (mm2)
|
Number/Diameter of Core(mm)
|
Thickness of Section Sheath (mm)
|
Average Outer Diameter (mm2)
|
Minimum insulation resistance
(70℃) |
Recommended value of carrying capacity
(A) |
Reference weight
(KG,KM) |
10
|
322/0.2
|
1.8
|
7.5
|
0.012
|
10
|
37
|
16
|
513/0.2
|
2.0
|
9.2
|
0.01
|
13
|
47
|
25
|
798/0.2
|
2.0
|
10.5
|
0.012
|
8
|
44
|
35
|
1121/0.2
|
2.0
|
11.5
|
0.01
|
10
|
58
|
50
|
1596/0.2
|
2.2
|
13.5
|
0.011
|
13
|
58
|
70
|
2214/0.2
|
2.4
|
15
|
0.01
|
16
|
66
|
95
|
2997/0.2
|
2.6
|
17
|
0.01
|
20
|
89
|
120
|
1702/0.3
|
2.8
|
19
|
0.009
|
27
|
137
|
150
|
2135/0.3
|
3.0
|
21
|
0.007
|
38
|
205
|
Application
