TUV-certified H1Z2Z2-K solar cable

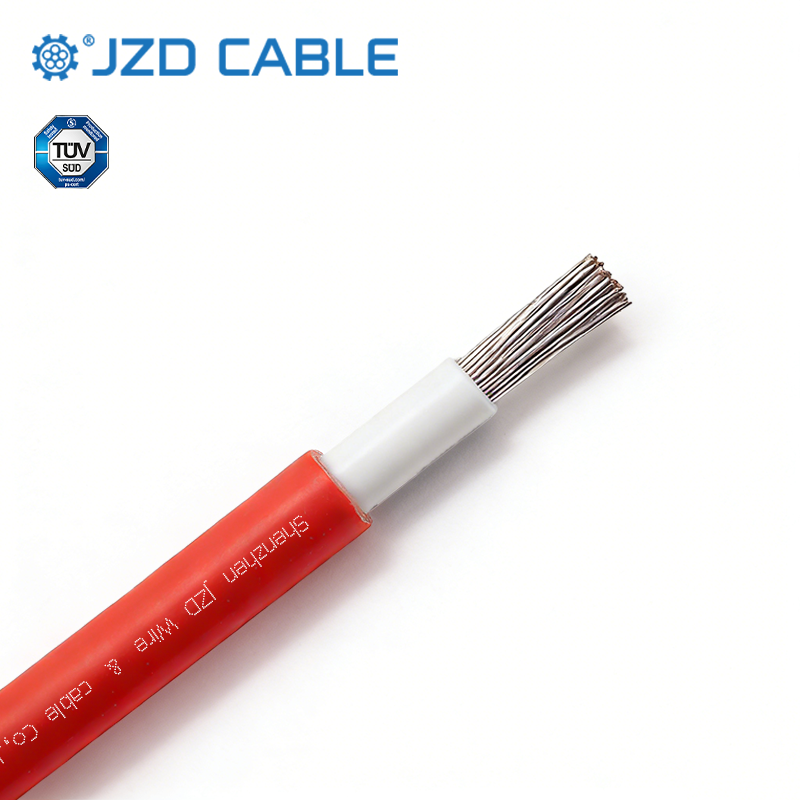

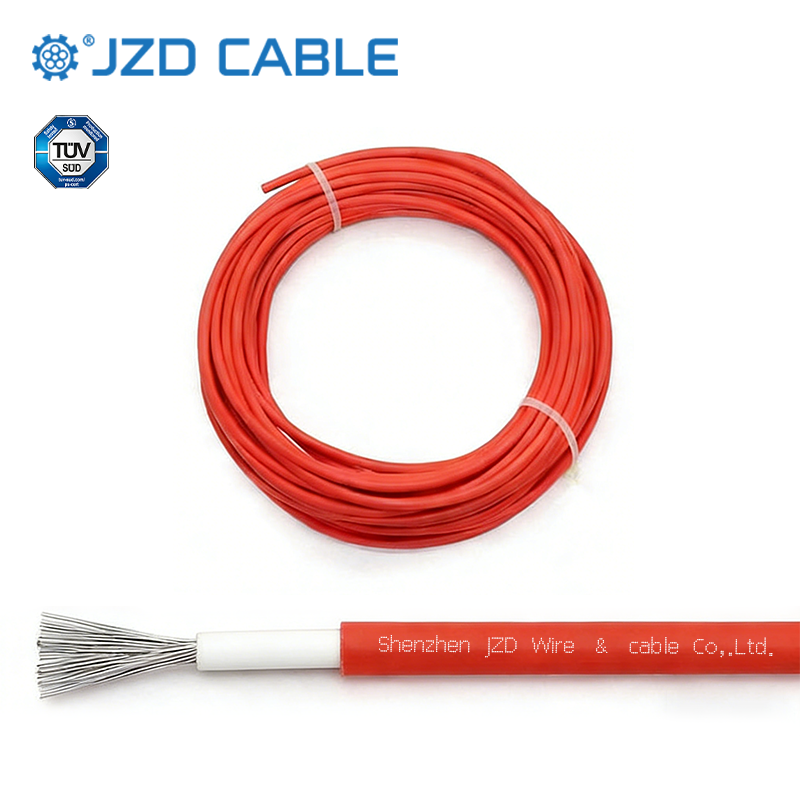

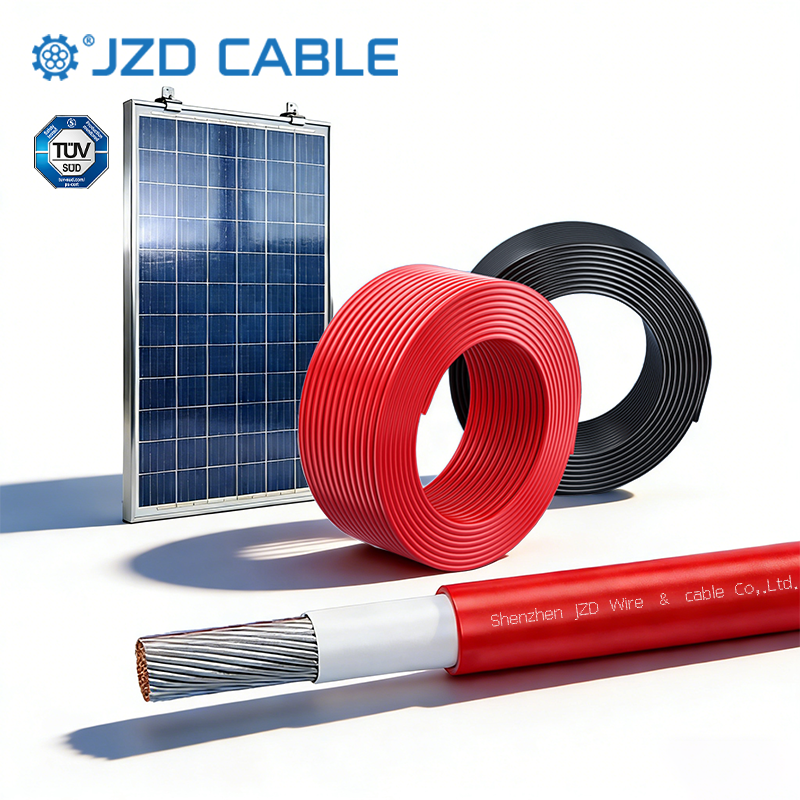

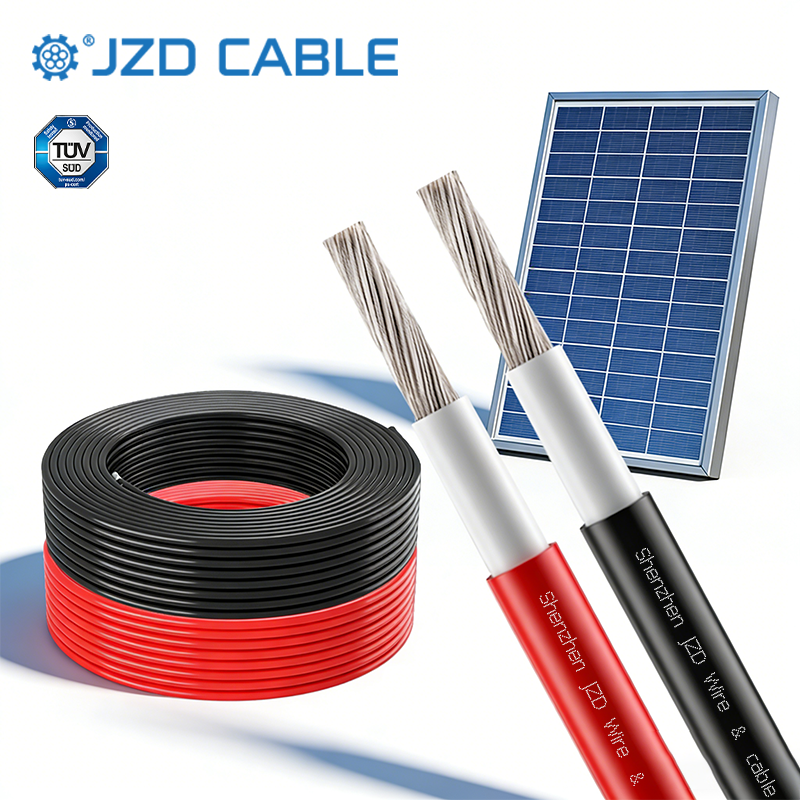

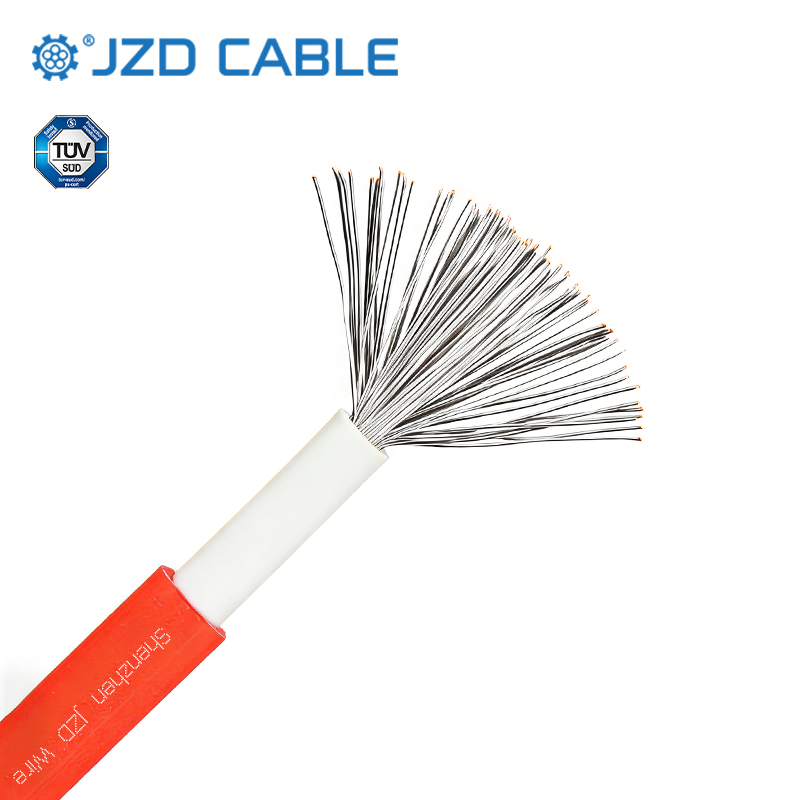

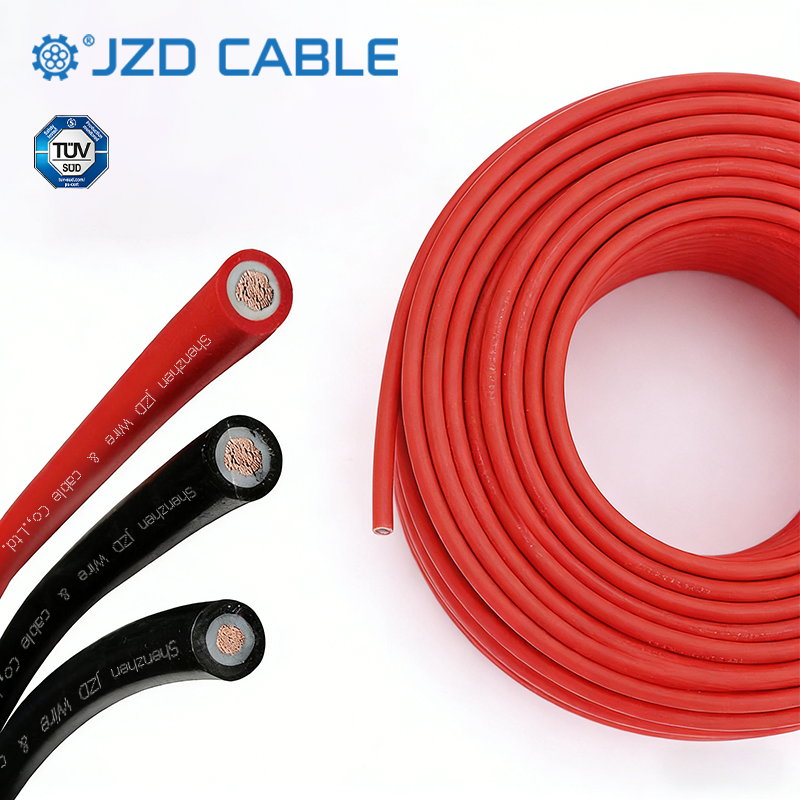

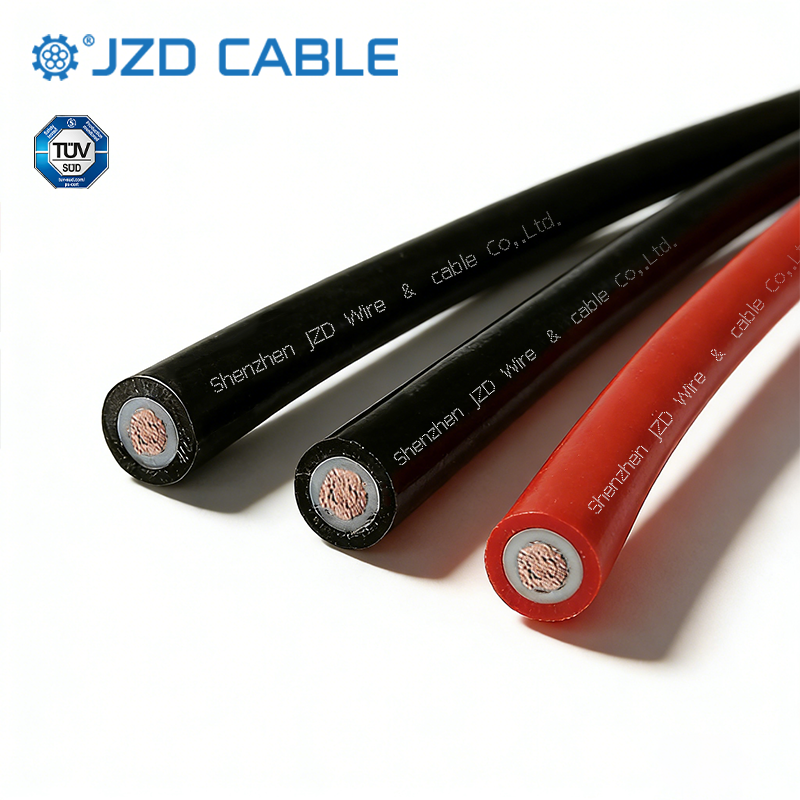

The H1Z2Z2-K Solar Cable is a specialized single-core photovoltaic cable designed for critical connections within solar power systems. Featuring a tinned copper conductor, double-layer cross-linked polyolefin insulation, and a halogen-free, flame-retardant sheath, this cable is engineered for durability and safety in demanding DC applications. It is TUV-certified (IEC 62930) and excels in environments with high temperatures, UV exposure, and mechanical stress, making it an ideal choice for both internal equipment wiring and protective earthing/grounding circuits.
Key Features:
- Single-Core Design: Optimized for straightforward wiring in combiner boxes, inverters, and as an earthing conductor.
- Superior Insulation: Double-layer, cross-linked material ensures excellent dielectric strength and long-term reliability.
- High-Temperature Resilience: Rated for continuous operation from -40°C to +120°C, perfect for hot climates.
- Safety Compliant: Halogen-free, low smoke emission, and compliant with IEC 60332-1 flame retardancy standards.
Specification
|
No. Of cores x Construction
（mm2）
|
Conductor Construction
（n / mm）
|
Conductor No./mm
|
Insul.
Thick. (mm)
|
Current Aarring Capacity (A)
|
|
1×1.5
|
30/0.25
|
1.58
|
4.9
|
30
|
|
1×2.5
|
50/0.256
|
2.06
|
5.45
|
41
|
|
1×4.0
|
56/0.3
|
2.58
|
6.15
|
55
|
|
1×6
|
84/0.3
|
3.15
|
7.15
|
70
|
|
1×10
|
142/0.3
|
4.0
|
9.05
|
98
|
|
1×16
|
228/0.3
|
5.7
|
10.2
|
132
|
|
1×25
|
361/0.3
|
6.8
|
12.0
|
176
|
|
1×35
|
494/0.3
|
8.8
|
13.8
|
218
|
|
1×50
|
418/0.39
|
10.0
|
16.0
|
280
|
|
1×70
|
589/0.39
|
11.8
|
18.4
|
350
|
|
1×95
|
798/0.39
|
13.8
|
21.3
|
410
|
Application
-
PV System Earthing / GroundingServe as a dedicated grounding conductor for solar panel frames, mounting structures, and equipment, ensuring safety and compliance with electrical codes.
-
Internal DC Wiring in Combiner Boxes & InvertersUsed for clean, reliable internal connections between string inputs, fuses, and surge protection devices within enclosure.
-
DC String Connections in Large-Scale Solar FarmsEmployed in conjunction with twin-core cables for specific routing needs or as jumpers within junction boxes for complex array layouts.
-
Solar Tracking SystemsSuitable for the moving parts of solar trackers, where flexibility, temperature resistance, and a single conductor are required for power or sensor connections.
