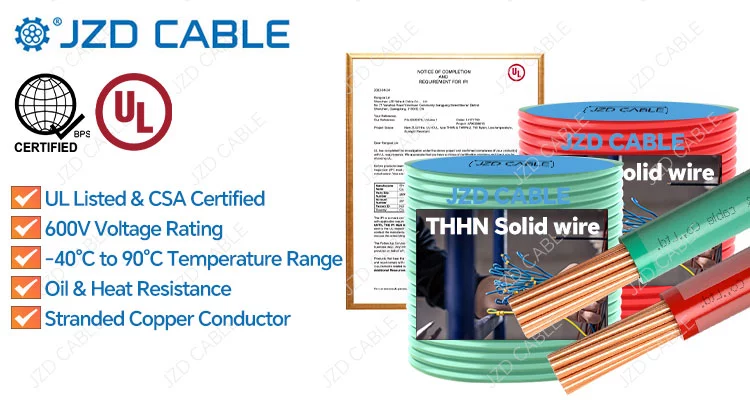

UL 83 CSA THHN/THWN/T90 Copper Wire 14AWG-1AWG Stranded Nylon PVC Cable

UL 83 CSA THHN/THWN/T90 Copper Wire 14AWG-1AWG Stranded Nylon PVC Cable

Standard
UL83 CSA C22.2 NO.75
Voltage
600V
Conductor
Copper
Insulation
PVC
Sheath
Nylon
Max Operating Temp
90℃

Categories ,

UL Stranded Nylon PVC Cable

Experience superior performance with our UL 83 and C-SA certified THHN/THHN/T90-rated electric wire. Engineered with high-conductivity stranded copper cores and dual-layer Nylon-PVC insulation, this cable excels in durability and safety. Ideal for 600V applications, it withstands temperatures up to 90°C (194°F) in dry conditions and 75°C (167°F) in wet environments. Available in AWG sizes 14 to 1, our wire meets rigorous UL 83 and Canadian Standards Association (C-SA) requirements, ensuring reliable power distribution in commercial, industrial, and residential settings. Flame-retardant, oil-resistant, and abrasion-proof—trust JZD for compliant, long-lasting electrical solutions.

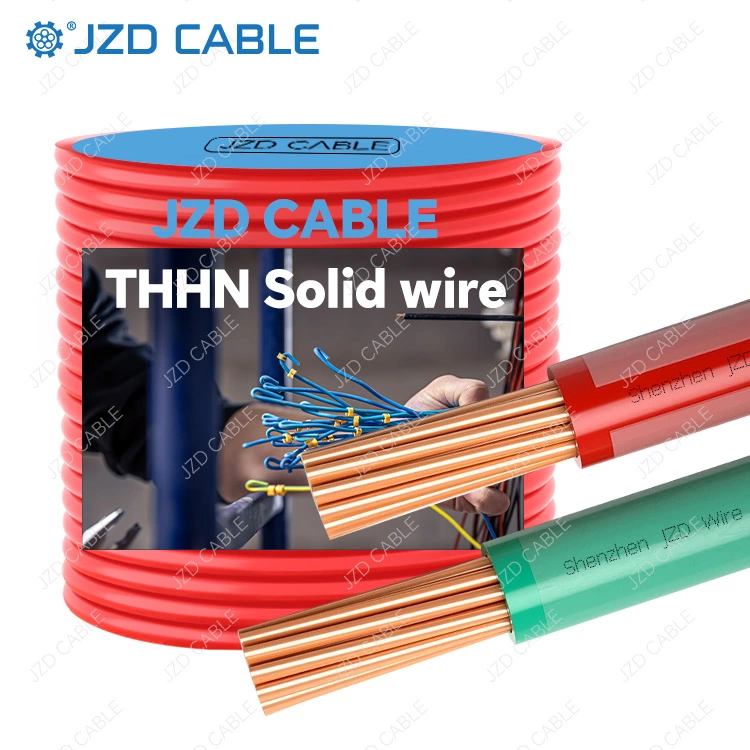

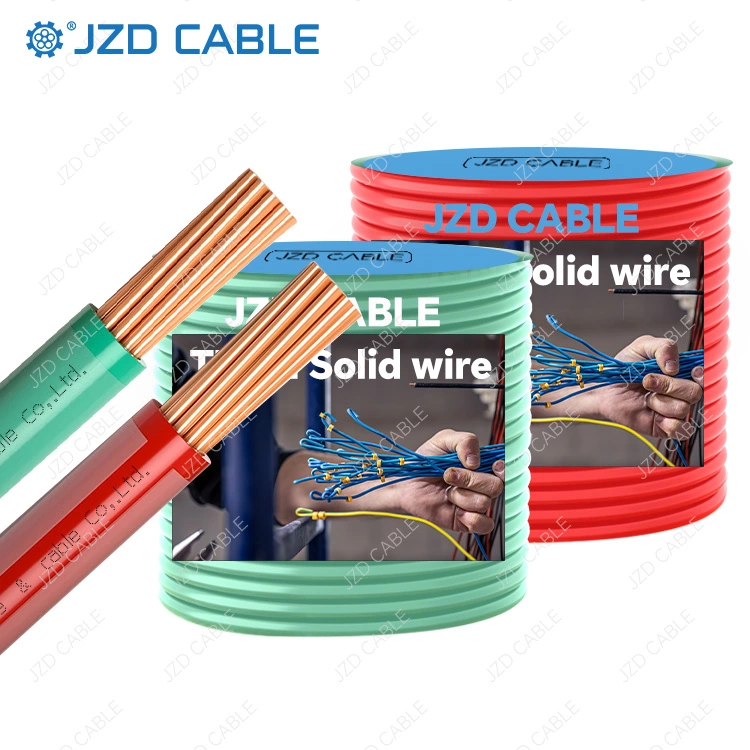

UL Stranded Nylon PVC Cable UL Stranded Nylon PVC Cable UL Stranded Nylon PVC Cable

Specification

THHN/THWN-2 Cable Technical Parameters
Conductor Insulation Thickness
(mils)
Jacket Thickness
(mils)
Nominal O.D.
(mils)
Approx. Net Wt.
Per 1000′ (lbs.)
Allowable Ampacities+
60°C 75°C 90°C
14* 1 15 4 102 15 15 15 15
12* 1 15 4 119 23 20 20 20
10* 1 20 4 150 36 30 30 30
14* 19 15 4 109 16 15 15 15
12* 19 15 4 128 24 20 20 20
10* 19 20 4 161 38 30 30 30
8 19 30 5 213 63 40 50 55
6 19 30 5 249 95 55 65 75
4 19 40 6 318 152 70 85 100
3 19 40 6 346 189 85 100 115
2 19 40 6 378 234 95 115 130
1 19 50 7 435 299 110 130 145
1/0 19 50 7 474 372 125 150 170
2/0 19 50 7 518 462 145 175 195
3/0 19 50 7 568 575 165 200 225
4/0 19 50 7 624 718 195 230 260
250 37 60 8 694 851 215 255 290
300 37 60 8 747 1012 240 285 320
350 37 60 8 797 1174 260 310 350
400 37 60 8 842 1334 280 335 380
500 37 60 8 926 1655 320 380 430
600 61 70 9 1024 1987 350 420 475
750 61 70 9 1126 2464 400 475 535
1000 61 70 9 1275 3257 455 545 615

* Sizes 14, 12, and 10 AWG are available with Technology only in Barrel configurations. Standard put ups vary from the ones shown on this chart for standard 14-10 AWG THHN

+Allowable ampacities shown are for general use as specified by the 2014 Edition of the National Electrical Code Sections 310.15 and 240.4(D)

Unless the equipment is marked for use at higher temperatures the conductor shall be limited to the following per NEC 110.14(C):

  • 60°C – When terminated to equipment for circuits rated 100 amperes or less or marked for 14 – 1 AWG conductors
  • 75°C – When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG
  • 90°C – THHN dry locations and THWN-2 wet or dry locations for ampacity adjustment purposes using NEC section 310.15

Application

  • Industrial Wiring​​: Perfect for conduit installations in factories, control panels, and machinery due to THWN wet-location rating.
  • ​Building Construction​​: Use in commercial/residential complexes for branch circuits, feeders, and service entrances (NEC/CEC compliant).
  • ​HVAC Systems​​: T90 thermal stability supports heating/cooling equipment wiring in plenums and ducts.
  • ​Renewable Energy​​: Safely connect solar inverters and wind turbines in outdoor damp environments.
  • ​Maintenance & Repairs​​: Ideal for retrofitting aging electrical systems in wet locations (e.g., basements, parking garages).

JZD Factory

JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.

jzdcable factory

Certification

UL Stranded Nylon PVC Cable

Exhibitation

April 2025 Exhibition in Indonesia

April 2025 Exhibition in Indonesia

May 2025 Exhibition in the Philippines

May 2025 Exhibition in the Philippines

FAQ

Q: Are you a manufacturer or trading company?

A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.

Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.

Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
