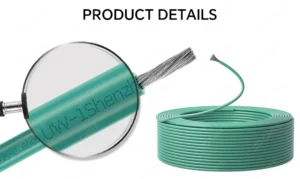

UL1015 Hook-Up Wire
The UL1015 Hook-Up Wire from JZD Cable is a premium-grade electrical wire designed for safe, reliable internal wiring in electronic and electrical equipment. Featuring annealed bare copper conductors and PVC insulation, this wire meets rigorous UL Standard 1015 for superior heat resistance (80°C), flame retardancy, and dielectric strength. Rated for 600V voltage with excellent resistance to abrasion, solvents, and moisture, it ensures stable performance in demanding environments. RoHS compliant and available in 18-10 AWG gauges.
Key Benefits:
- Safety Certified: UL E307522 certified for quality & fire safety compliance
- Flexible & Durable: Easy to route in tight spaces with crush-resistant insulation
- Wide Compatibility: Ideal for AC/DC circuits in industrial, commercial & DIY projects

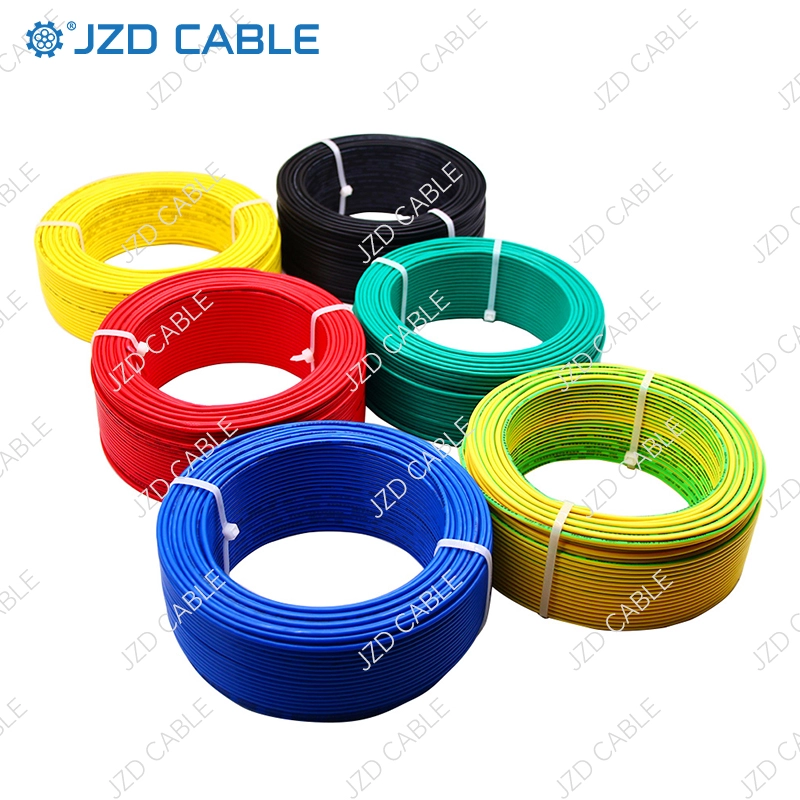

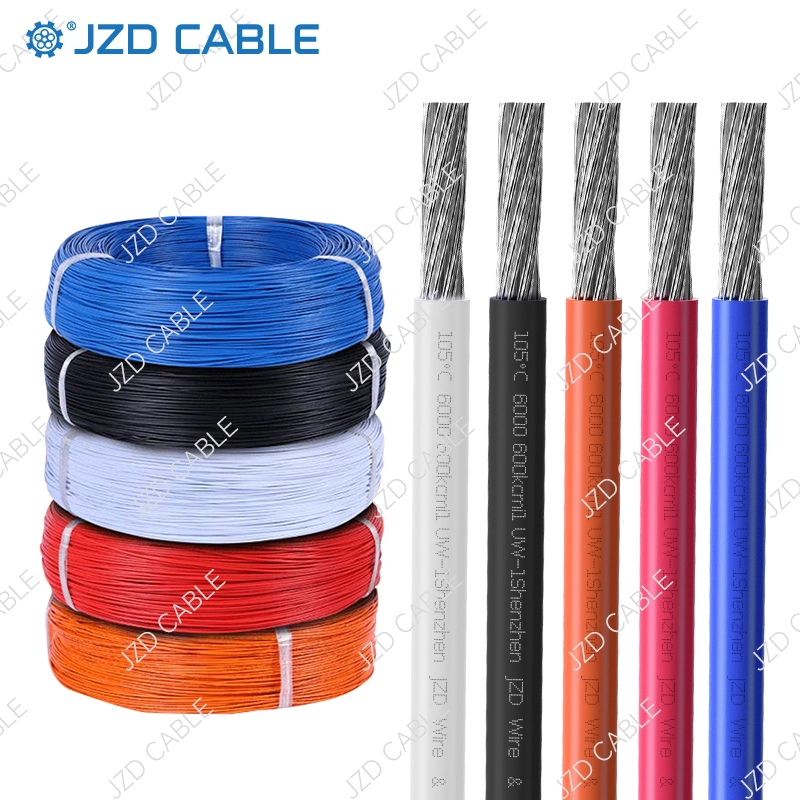

- Customizable: 20+ colors & spool lengths to match project requirements

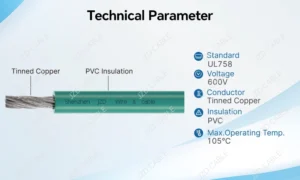

Specification
|
CONDUCTOR
|
INSULATION
|
MAX.COND. RESISTANCE (Q/km,20°C,DC)
|
DIELECTRIC STRENGTH (VAC, Imin)
|
|||
|
AWG
|
CONSTRUCTION
(No./mm) |
DIA.
(mm) |
THICKNESS (mm)
|
O.D.
(mm) |
||
|
30
|
1/0.254
|
0.25
|
0.40
|
1.05
|
361
|
2,000
|
|
7/0.10
|
0.30
|
0.40
|
1.10
|
381
|
||
|
28
|
1/0.32
|
0.32
|
0.39
|
1.10
|
227
|
2,000
|
|
7/0.127
|
0.38
|
0.41
|
1.20
|
239
|
||
|
7/0.127OS-1*
|
0.38
|
0.41
|
1.20
|
239
|
||
|
26
|
1/0.404
|
0.40
|
0.43
|
1.25
|
143
|
2,000
|
|
7/0.16
|
0.48
|
0.41
|
1.30
|
150
|
||
|
7/0.16OS-1*
|
0.48
|
0.41
|
1.30
|
150
|
||
|
24
|
1/0.511
|
0.51
|
0.42
|
1.35
|
89.3
|
2,000
|
|
11/0.16
|
0.61
|
0.40
|
1.40
|
94.2
|
||
|
7/0.200S-1*
|
0.60
|
0.40
|
1.40
|
94.2
|
||
|
22
|
1/0.643
|
0.64
|
0.43
|
1.50
|
56.4
|
2000
|
|
17/0.16
|
0.76
|
0.42
|
1.60
|
59.4
|
||
|
7/0.254 OS-1*
|
0.76
|
0.42
|
1.60
|
59.4
|
||
|
20
|
1/0.813
|
0.81
|
0.42
|
1.65
|
35.2
|
2,000
|
|
26/0.16
|
0.94
|
0.43
|
1.80
|
36.7
|
||
|
7/0.32OS-1*
|
0.96
|
0.42
|
1.80
|
36.7
|
||
|
18
|
1/1.024
|
1.02
|
0.41
|
1.85
|
22.2
|
2,000
|
|
41/0.16
|
1.18
|
0.47
|
2.10
|
23.2
|
||
|
7/0.4040S-1*
|
1.21
|
0.45
|
2.10
|
23.2
|
||
|
16
|
1/1.29
|
1.29
|
0.46
|
2.20
|
14.0
|
2,000
|
|
26/0.254
|
1.49
|
0.46
|
2.40
|
14.6
|
||

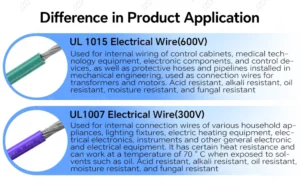

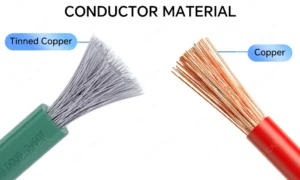

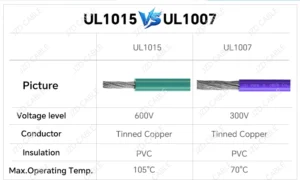

Comparison

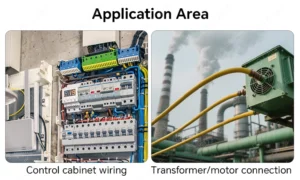

Application
- Industrial Controls: Wiring of CNC machines, motor controls, & PLC panels
- Appliance Wiring: Internal circuits in refrigerators, power tools, HVAC systems
- Automotive Electronics: Non-engine compartment wiring (12V/24V systems)
- Renewable Energy: Low-voltage connections in solar inverters & battery backups
- Consumer Electronics: Prototyping boards, robotics, and power supply wiring

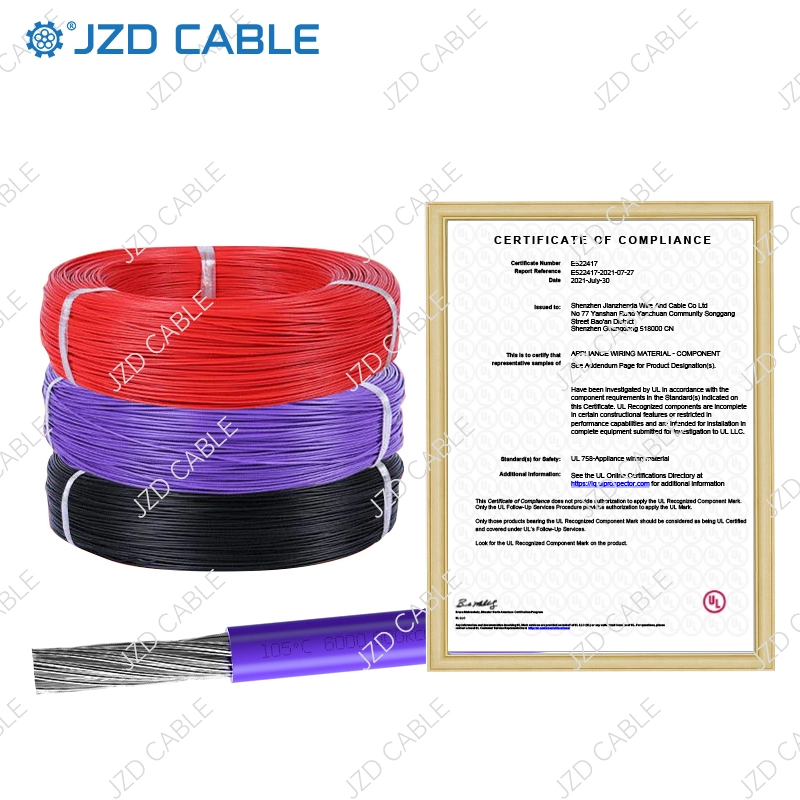

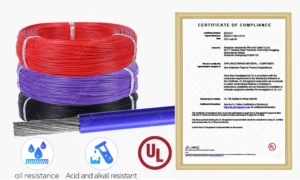

Certification
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
