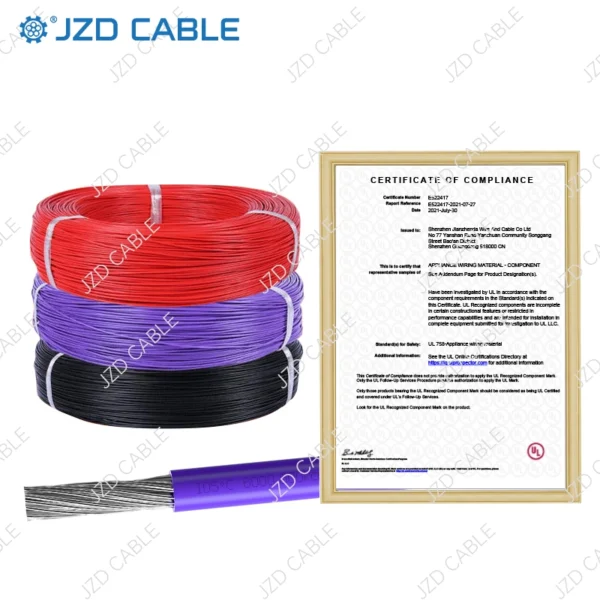

UL1015 Hook-Up Wire
Engineered for high-density power distribution in mission-critical environments, JZD Cable’s UL1015 wire delivers reliable 600V power transmission within data center cabinets, integrated electrical control panels, and rack PDUs. Certified to UL 1015 and RoHS standards, this heavy-duty hook-up wire features:
- 105°C heat-resistant PVC insulation for sustained loads in confined spaces
- Flexible Class B stranding (19-65 strands) to simplify complex routing
- VW-1 flame rating for enhanced safety in electrical clusters
- Low capacitance & EMI interference for stable power delivery
Key Upgrades for Industrial Use:
- ✅ Optimized for 40A+ current loads (vs. standard 30A)
- ✅ Oil/Chemical-Resistant Insulation (IEC 60811-2-1 compliant)
- ✅ Color-Coding Options (Red/Black/Yellow for phases, Green/Yellow for ground)
- ✅ Shielded Variants Available (Foil + Braid for noise-sensitive applications)
Specification
|
CONDUCTOR
|
INSULATION
|
MAX.COND. RESISTANCE (Q/km,20°C,DC)
|
DIELECTRIC STRENGTH (VAC, Imin)
|
|||
|
AWG
|
CONSTRUCTION
(No./mm) |
DIA.
(mm) |
THICKNESS (mm)
|
O.D.
(mm) |
||
|
30
|
1/0.254
|
0.25
|
0.40
|
1.05
|
361
|
2,000
|
|
7/0.10
|
0.30
|
0.40
|
1.10
|
381
|
||
|
28
|
1/0.32
|
0.32
|
0.39
|
1.10
|
227
|
2,000
|
|
7/0.127
|
0.38
|
0.41
|
1.20
|
239
|
||
|
7/0.127OS-1*
|
0.38
|
0.41
|
1.20
|
239
|
||
|
26
|
1/0.404
|
0.40
|
0.43
|
1.25
|
143
|
2,000
|
|
7/0.16
|
0.48
|
0.41
|
1.30
|
150
|
||
|
7/0.16OS-1*
|
0.48
|
0.41
|
1.30
|
150
|
||
|
24
|
1/0.511
|
0.51
|
0.42
|
1.35
|
89.3
|
2,000
|
|
11/0.16
|
0.61
|
0.40
|
1.40
|
94.2
|
||
|
7/0.200S-1*
|
0.60
|
0.40
|
1.40
|
94.2
|
||
|
22
|
1/0.643
|
0.64
|
0.43
|
1.50
|
56.4
|
2000
|
|
17/0.16
|
0.76
|
0.42
|
1.60
|
59.4
|
||
|
7/0.254 OS-1*
|
0.76
|
0.42
|
1.60
|
59.4
|
||
|
20
|
1/0.813
|
0.81
|
0.42
|
1.65
|
35.2
|
2,000
|
|
26/0.16
|
0.94
|
0.43
|
1.80
|
36.7
|
||
|
7/0.32OS-1*
|
0.96
|
0.42
|
1.80
|
36.7
|
||
|
18
|
1/1.024
|
1.02
|
0.41
|
1.85
|
22.2
|
2,000
|
|
41/0.16
|
1.18
|
0.47
|
2.10
|
23.2
|
||
|
7/0.4040S-1*
|
1.21
|
0.45
|
2.10
|
23.2
|
||
|
16
|
1/1.29
|
1.29
|
0.46
|
2.20
|
14.0
|
2,000
|
|
26/0.254
|
1.49
|
0.46
|
2.40
|
14.6
|
||
Comparison
Application
Focused on Power Distribution & Control Systems:
- Data Center Rack PDUs
Primary/secondary power wiring for server racks, blade enclosures, and cabinet busways.
- Integrated Electrical Cabinets
- Main power rails in modular control panels
- Circuit breaker interconnections
- Transformer terminal wiring
- HVAC Power Clusters
High-amperage wiring for CRAC/CRAH units and condenser control panels.
- UPS & Backup Power Systems
Battery array interlinks, inverter output circuits, and static switch wiring.
- Industrial PLC Enclosures
Motor drive power feeds (VFDs), I/O module distribution, and safety relay loops.
- Power Monitoring Systems
CT/PT sensor leads, power meter connections, and gateway comms wiring.
