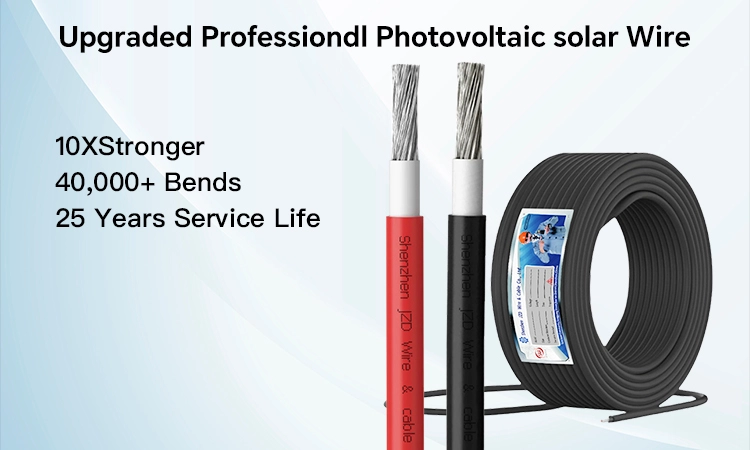

Aluminum Solar Cable
Engineered for extreme reliability, JZDCable’s aluminum solar cable delivers premium performance in demanding environments. With a 1000/2000V voltage rating and XLPO (Cross-linked Polyolefin) insulation, it offers superior electrical safety and durability. Designed to withstand harsh outdoor conditions, this cable features Wind Proof, Sun Proof (UV resistant), Rain Proof (waterproof), and Snow Proof (freeze-resistant) capabilities—ensuring year-round power transmission stability. Ideal for solar farms, rooftops, and off-grid installations, its lightweight aluminum core reduces costs without compromising efficiency. Certified to global standards (IEC/UL), it guarantees long-term safety and sustainability for any solar project.
Specification
| Conductor | Nominal Insulation Thickness (mm) |
Nominal sheath Thickness (mm) |
Approx. Overall Diam. (mm) |
Approx. Weight (kg/km) |
Minimum Insulation |
Max. Conductor Resistance DC@20℃ (MΩ.km) |
||
| Nominal Area (mm²) |
Approx. Diam. (mm) |
20℃ (MΩ.km) |
90℃ (MΩ.km) |
|||||
| 1×1.5 | 1.57 | 0.7 | 0.8 | 4.7 | 38 | 860 | 0.86 | 13.7 |
| 1×2.5 | 2.04 | 0.7 | 0.8 | 5.2 | 45 | 690 | 0.69 | 8.21 |
| 1×4 | 2.6 | 0.7 | 0.8 | 5.6 | 60 | 580 | 0.58 | 5.09 |
| 1×6 | 3.16 | 0.7 | 0.8 | 6.3 | 90 | 500 | 0.50 | 3.39 |
| 1×10 | 4.5 | 0.7 | 0.8 | 7.6 | 131 | 420 | 0.42 | 1.95 |
| 1×16 | 5.7 | 0.7 | 0.9 | 9.0 | 187 | 340 | 0.34 | 1.24 |
| 1×25 | 7.2 | 0.9 | 1.0 | 11.2 | 267 | 340 | 0.34 | 0.795 |
| 1×35 | 8.5 | 0.9 | 1.1 | 12.7 | 368 | 290 | 0.29 | 0.565 |
| 1×50 | 9.4 | 1.0 | 1.2 | 14.5 | 560 | 270 | 0.27 | 0.393 |
| 1×70 | 11.1 | 1.1 | 1.2 | 16.5 | 756 | 250 | 0.25 | 0.277 |
| 1×95 | 13.1 | 1.1 | 1.3 | 18.7 | 1036 | 220 | 0.22 | 0.210 |
| 1×120 | 14.8 | 1.2 | 1.3 | 20.4 | 1309 | 210 | 0.21 | 0.164 |
| 1×150 | 16.5 | 1.4 | 1.4 | 22.7 | 1636 | 210 | 0.21 | 0.132 |
| 1×185 | 18.3 | 1.6 | 1.6 | 25.2 | 2000 | 200 | 0.20 | 0.108 |
| 1×240 | 21.0 | 1.7 | 1.7 | 28.5 | 2607 | 200 | 0.20 | 0.0817 |
| 2×1.5 | 1.57 | 0.7 | 0.8 | 4.8*10.5 | 78 | 860 | 0.86 | 13.7 |
| 2×2.5 | 2.04 | 0.7 | 0.8 | 5.2*11.8 | 92 | 690 | 0.69 | 8.21 |
| 2×4 | 2.6 | 0.7 | 0.8 | 5.6*12.8 | 122 | 580 | 0.58 | 5.09 |
| 2×6 | 3.16 | 0.7 | 0.8 | 6.3*13.7 | 182 | 500 | 0.50 | 3.39 |
| 2×10 | 4.5 | 0.7 | 0.8 | 8.0*16.8 | 264 | 420 | 0.42 | 1.95 |
| 2×16 | 5.7 | 0.7 | 0.9 | 9.0*19.8 | 376 | 340 | 0.34 | 1.24 |
Application
Specifically built for seamless integration across solar energy systems, this cable excels in:
- Utility-Scale Solar Farms: Connect vast photovoltaic arrays across rugged terrains (mountains/fields), leveraging its 1500V capacity and weather resistance to minimize power loss over long distances.
- Rooftop PV Installations: Withstand urban wind turbulence, intense sun exposure, and seasonal rain/snow on commercial or residential rooftops.
- Off-Grid & Remote Power Stations: Reliable energy transfer in harsh climates—from desert sun to alpine snow zones—thanks to its multi-proof design.
- Agricultural Solar Solutions: Power irrigation systems or greenhouses exposed to extreme weather, backed by corrosion-resistant XLPO insulation.
Certification
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
FAQ
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
