Selecting the right cable type is critical for ensuring safety and efficiency in industrial and building power systems. XHHW/XHHW-2 and RHH/RHW-2, as representative types of XLPE-insulated cables, are widely used in renewable energy, commercial buildings, and industrial power distribution. This article provides an in-depth analysis of their features, differences, and applications, along with common selection pitfalls and solutions to help you make informed decisions for your projects.
What Are XHHW/XHHW-2 and RHH/RHW-2 Cables?
- XHHW Cables: Suitable for wet environments up to 75°C or dry environments up to 90°C. Rated voltage: 600V.
- XHHW-2 Cables: Rated for wet or dry environments up to 90°C. Rated voltage: 600V.
- RHH Cables: Designed for dry environments up to 90°C. Rated voltage: 600V or 2000V.
- RHW-2 Cables: Suitable for wet or dry environments up to 90°C. Rated voltage: 600V or 2000V.

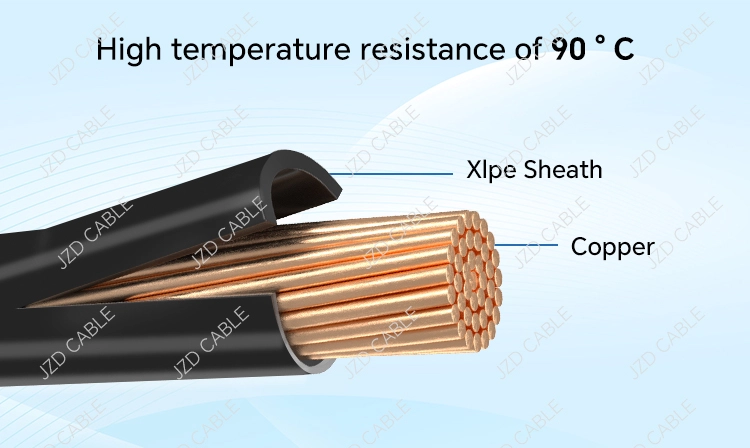

- Conductor: Annealed copper (ASTM B3 compliant).
- Insulation: Thermoset XLPE, offering low toxicity, moisture resistance, UV resistance, low smoke zero halogen (LSZH), and flame retardancy.
- Installation temperature: Not below -5°C.
- Minimum bending radius: 10x the cable’s outer diameter.
- Maximum short-circuit conductor temperature: 250°C (≤5 seconds).
Key Features
1. Environmental Adaptability
Operates in temperatures from -5°C to 90°C (wet or dry), making it ideal for outdoor, direct burial, or conduit installations.
2. Safety and Compliance

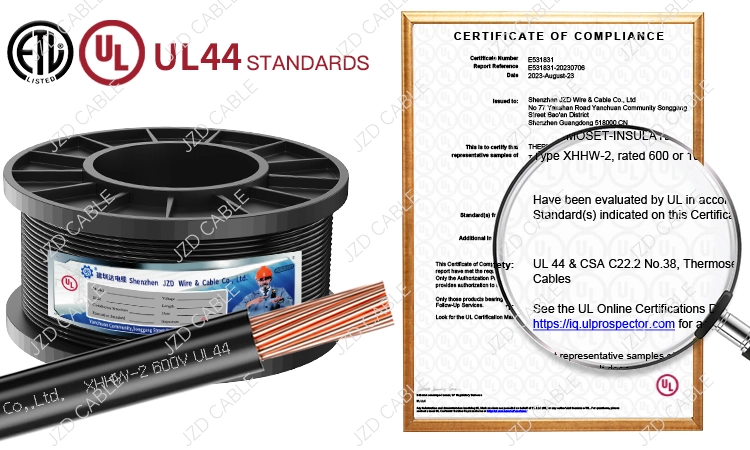

Flame-retardant, LSZH, and compliant with UL 44 standards. Suitable for hazardous locations (Class HI).
3. Mechanical Strength
Resists crushing, environmental stress cracking, and mechanical tension for easy installation and maintenance.
4. Electrical Performance
High dielectric strength, low tangent delta (tanδ), and excellent insulation resistance.
Typical Applications
- Commercial and Residential Buildings: Service entrance cables, branch circuits, and distribution panels.

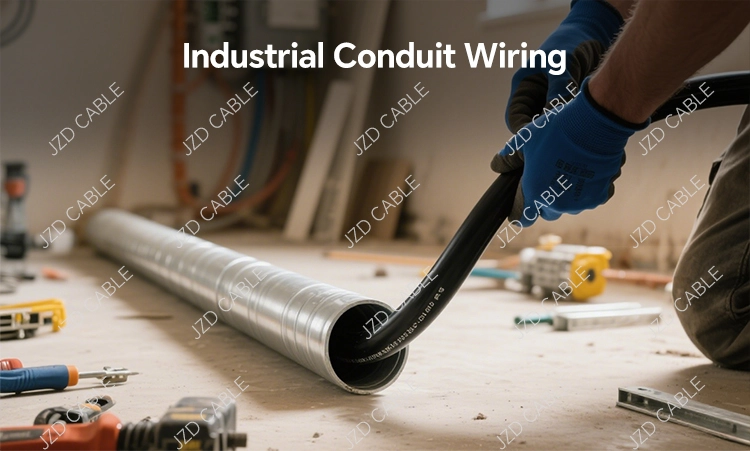

- Industrial Infrastructure: Trench, highway service areas, underground conduits, and overhead cable trays.
- Special Environments: Chemical plants, outdoor facilities requiring UV or corrosion resistance.
- Renewable Energy and Smart Grids: Meets high-temperature, LSZH, and longevity demands for solar/wind projects.
Common Selection Mistakes and How to Avoid Them
-
Incorrect Conductor Size or Voltage Rating: Oversized or undersized cables can cause overheating, voltage drops, or safety hazards. Always match cable specs to load requirements.
-
Improper Installation: Avoid excessive bending or compression during installation to prevent insulation damage and short circuits. Follow industry standards.
-
Ignoring Environmental Factors: Consider temperature, chemical exposure, and mechanical stress to prevent premature aging or failures.
-
Using Low-Quality Cables: Cheap cables may save costs initially but lead to frequent failures, safety risks, and higher long-term expenses.
-
Overlooking Certifications: Ensure compliance with UL, CE, or TUV standards to avoid regulatory issues.
Pro Tips:
- Evaluate environmental conditions, mechanical needs, and electrical requirements.
- Verify certifications and ensure cables meet project-specific parameters.
