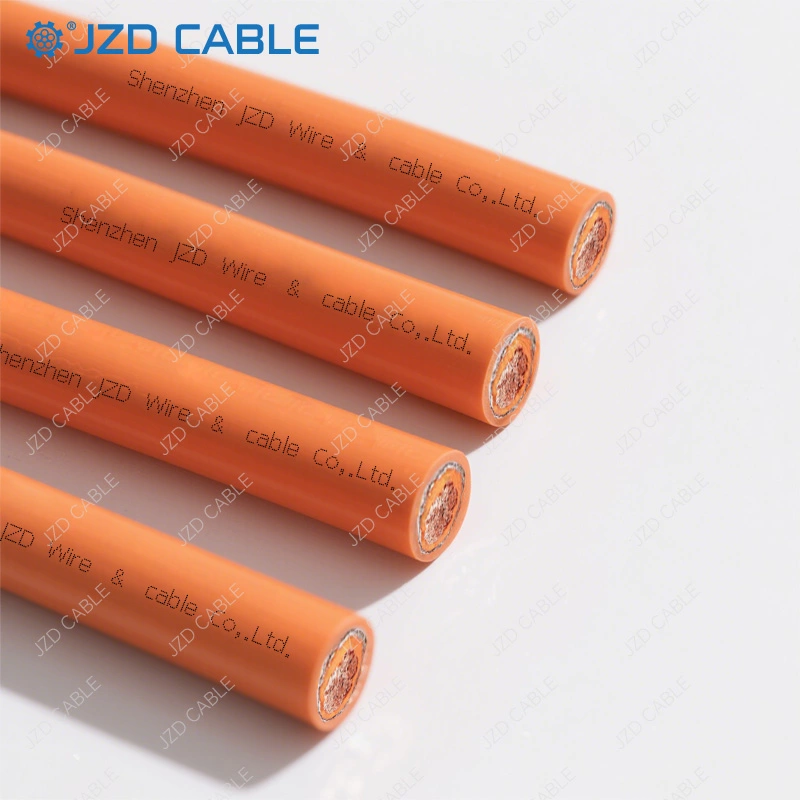

Silicone High Voltage Cable for EVs

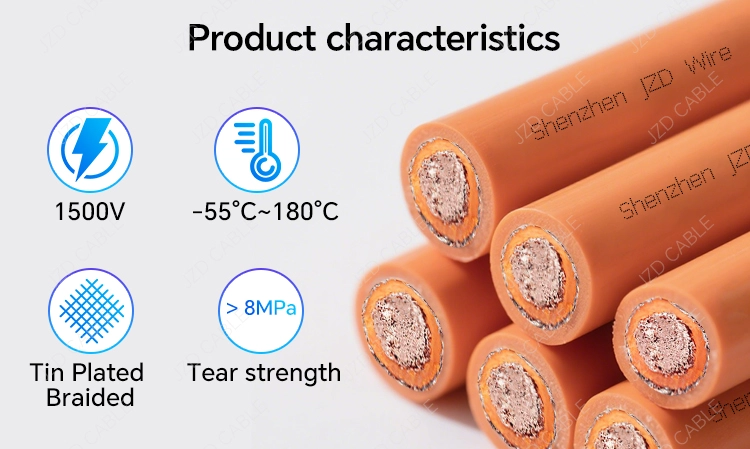

JZD Cable’s premium silicone-insulated high-voltage cables deliver exceptional performance for demanding electric vehicle applications. Engineered with flame-retardant SILICONE RUBBER insulation (UL-94 V0 rated), our cables withstand extreme temperatures (-55°C to +180°C continuous, +205°C short-term) while maintaining 1000V AC / 1500V DC power transmission integrity.
Key Technical Advantages:
✓ Multi-Layer Shield Construction

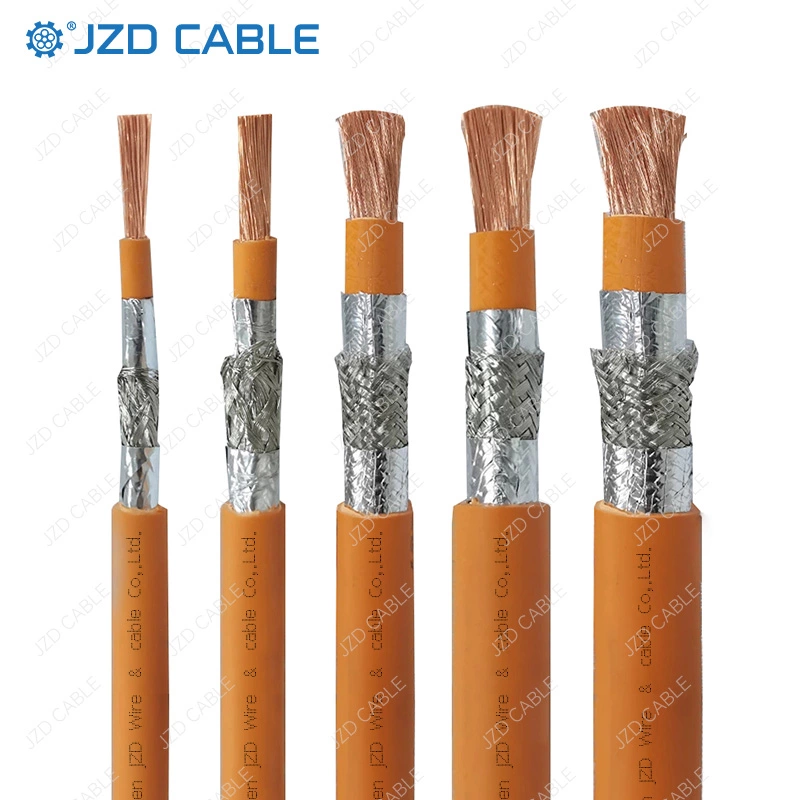

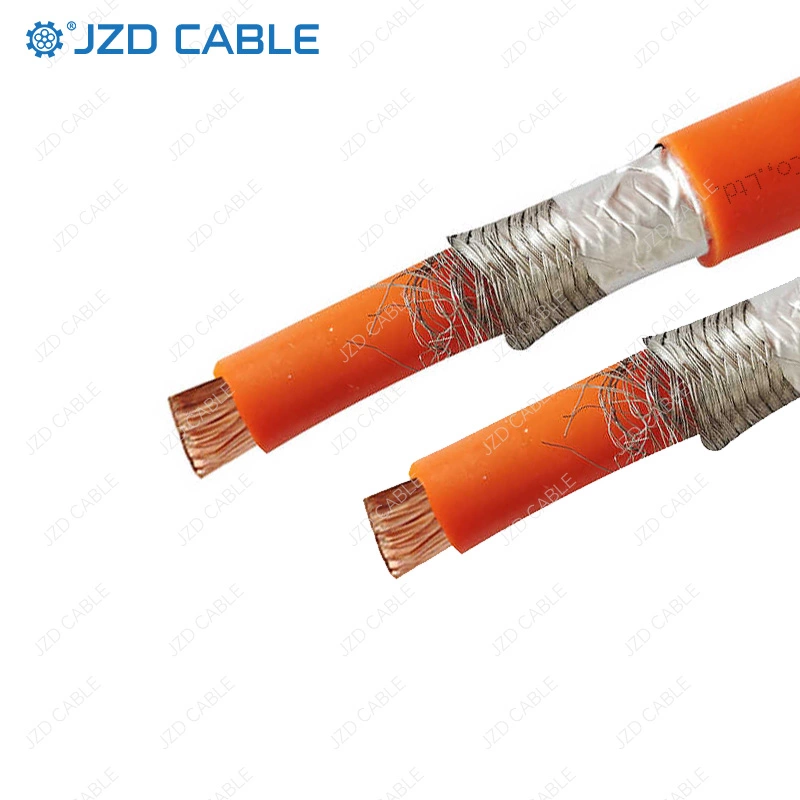

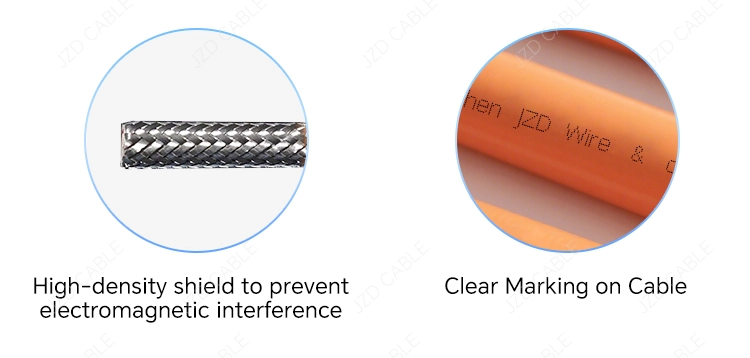

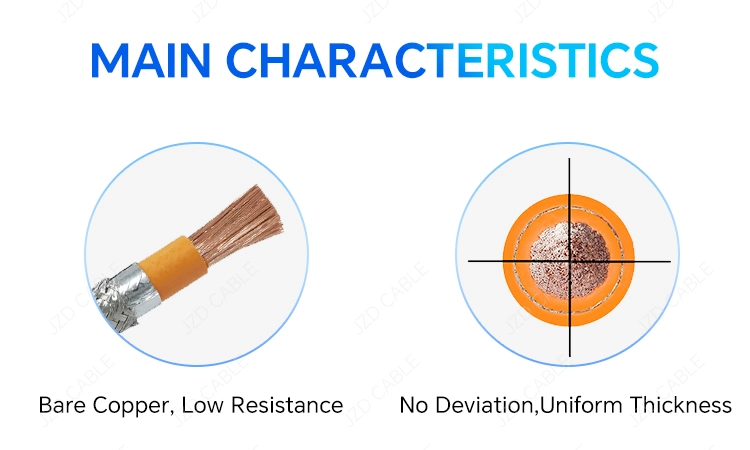

Concentric conductor → Silicone insulation → AL foil shield → Braided coverage (20% min) → Tape reinforcement
✓ Rigorous Testing Compliance
8KV spark tested | 1×10<sup>13</sup>Ω·cm volume resistivity | 5KV/5min dielectric strength
✓ Critical Automotive Certifications
Meets ISO 6722-1 | LV112 | SAE J1654 | RoHS/REACH compliant
✓ Aging Resilience
3000h@180°C long-term aging | 240h@205°C short-term endurance
✓ Standard Colors
Orange (default), Red, Black
Application
Optimized for New Energy Transportation & Industrial Systems
- 🚗 EV Powertrains: Battery-to-inverter connections, motor wiring harnesses
- ⚡ Charging Infrastructure: DC fast-charging station internal cabling
- 🔋 Energy Storage Systems: BMS interconnects in solar/wind farms
- 🏭 Robotics & Automation: High-flexibility cable carriers in assembly lines
- 🚌 Electric Commercial Vehicles: Bus/truck high-voltage distribution systems
- 🚛 Marine Electrification: Battery packs for electric vessels
Certification
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
FAQ
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
