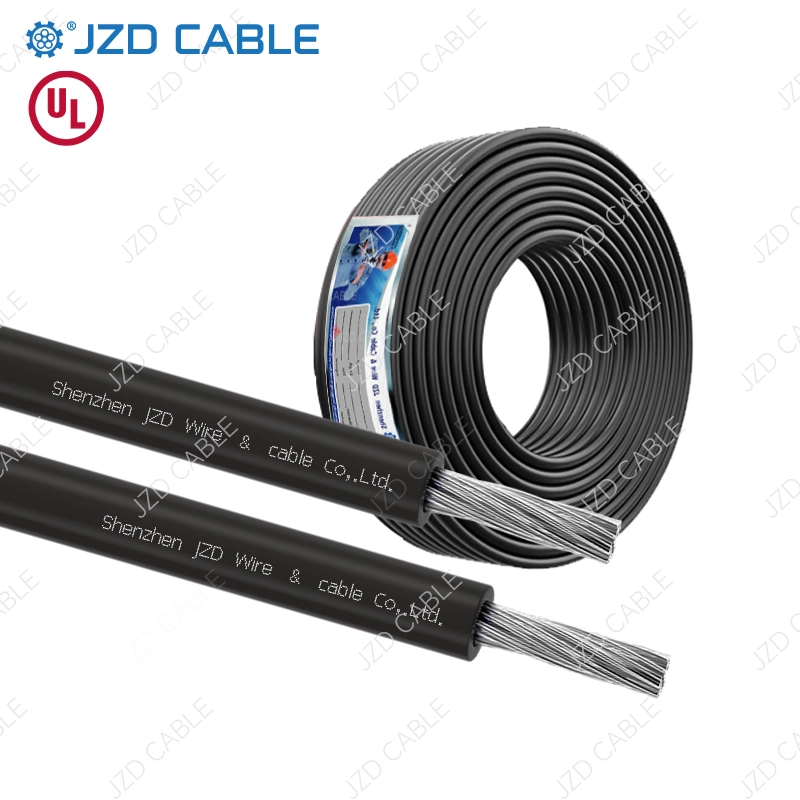

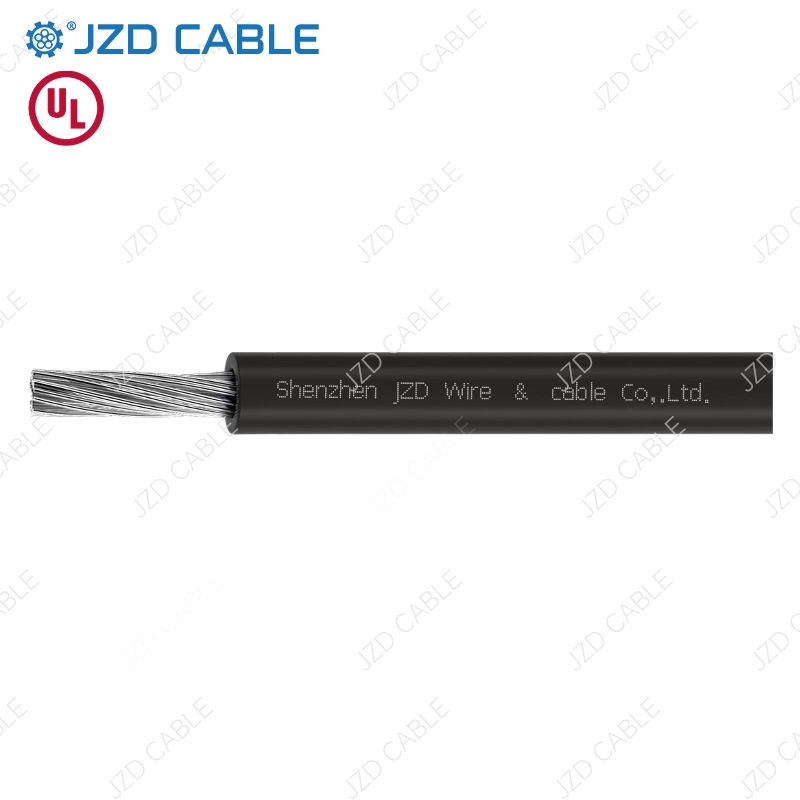

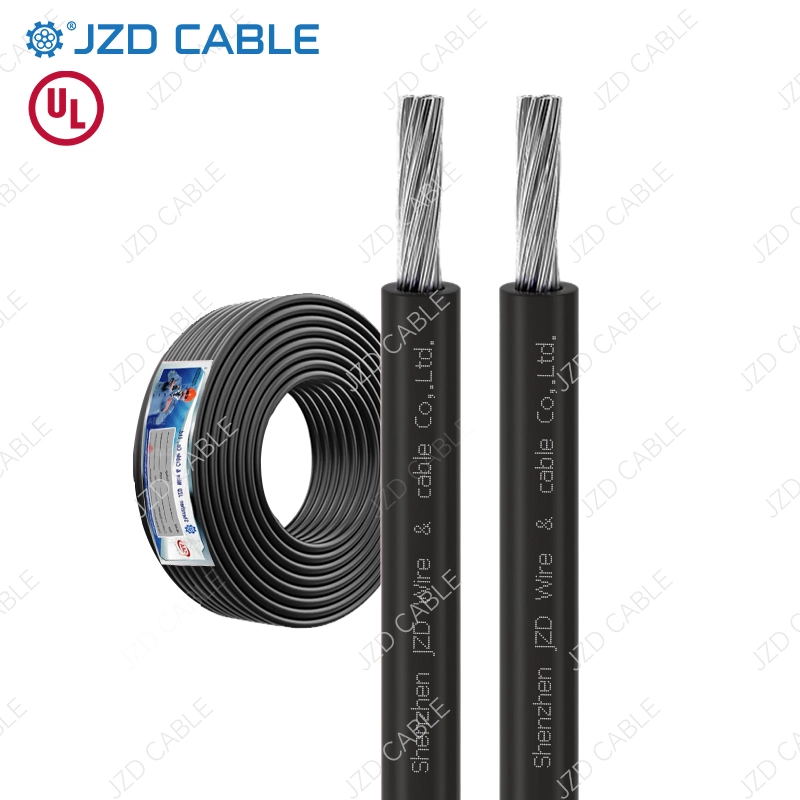

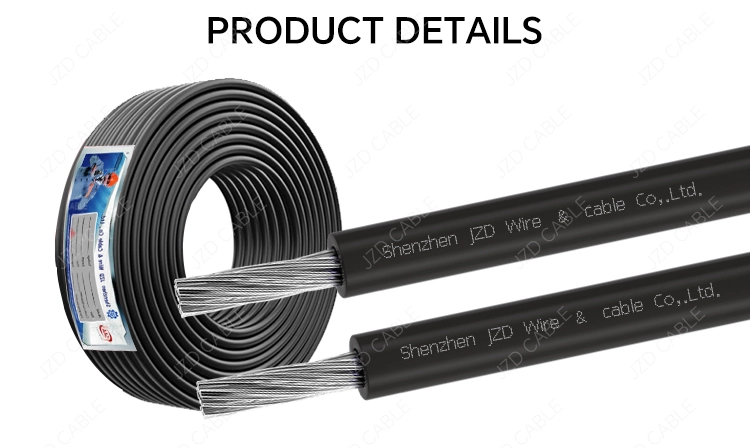

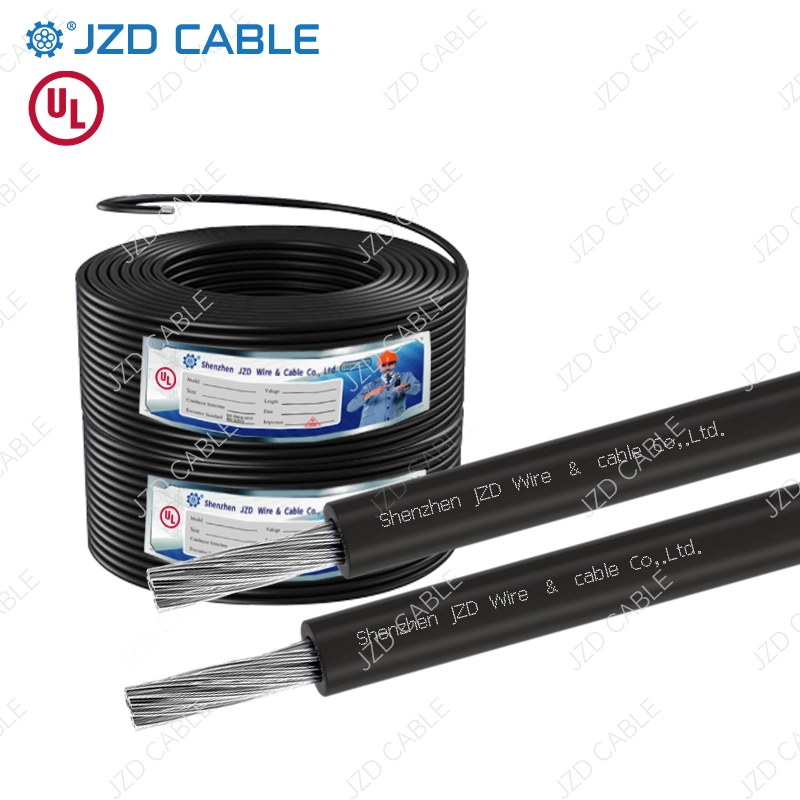

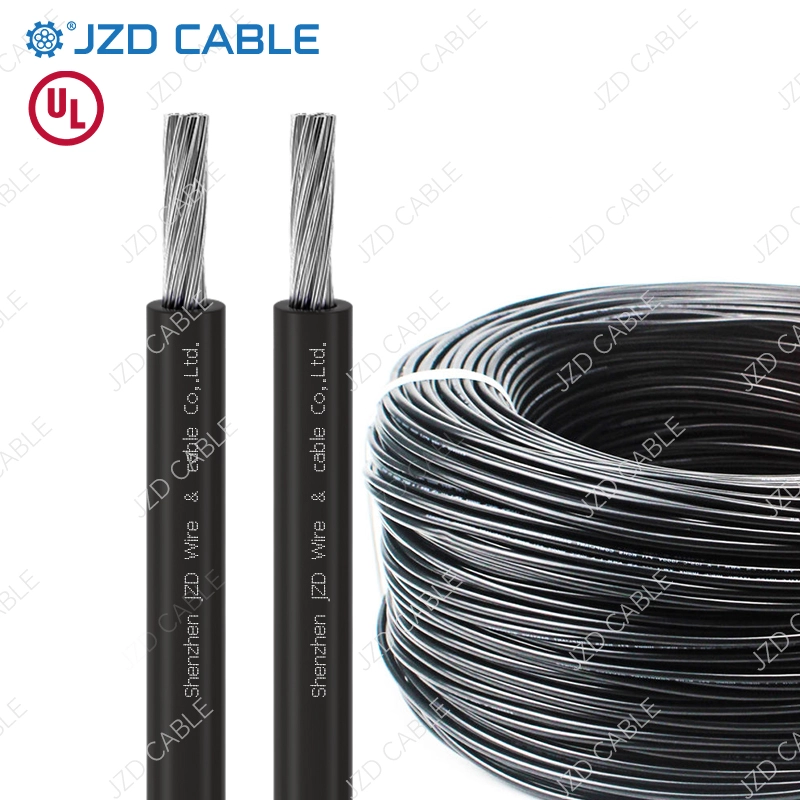

UL10269 Hook-Up Wire
JZD Cable’s enhanced UL10269 Hook-Up Wire delivers superior performance for demanding electrical applications. Engineered with a tinned copper conductor and robust PVC insulation, this premium wire operates at 1000V and withstands temperatures up to 105°C (221°F). Certified to UL Standard 10269, it ensures exceptional conductivity, corrosion resistance, and long-term reliability in high-heat environments.

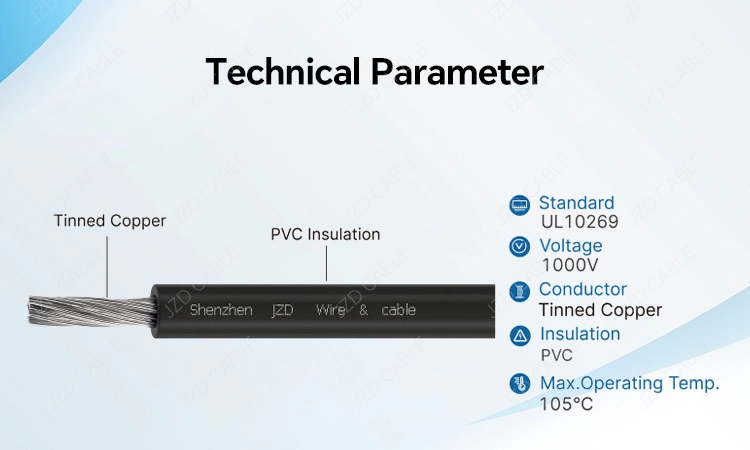

Key Specifications & Benefits:
- Voltage Rating: 1000V (Ideal for industrial power circuits)
- Temperature Rating: 105°C continuous operation

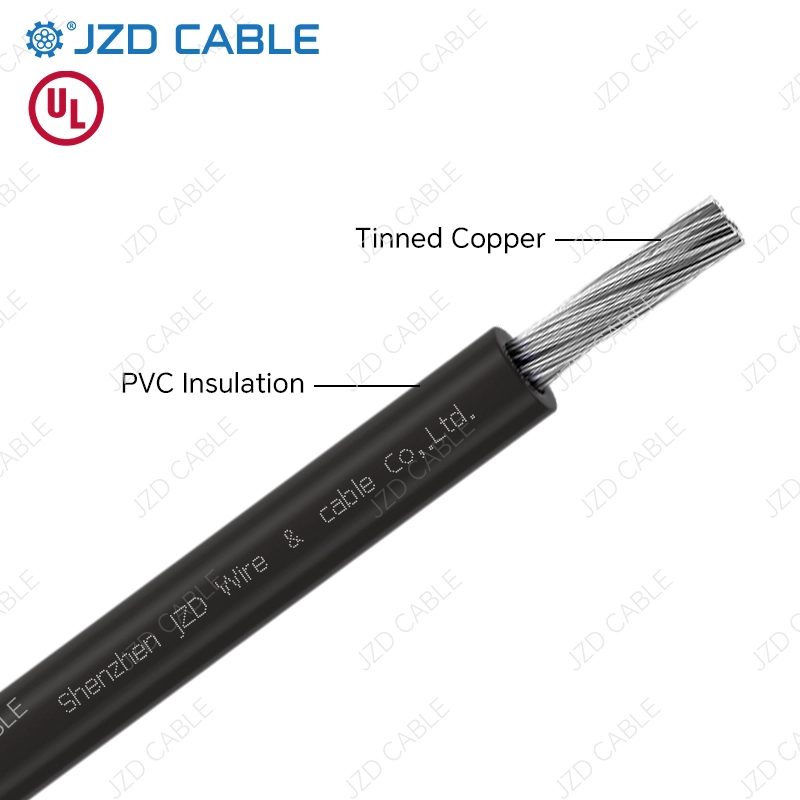

- Conductor: Stranded tinned copper (superior corrosion/solderability vs. bare copper)

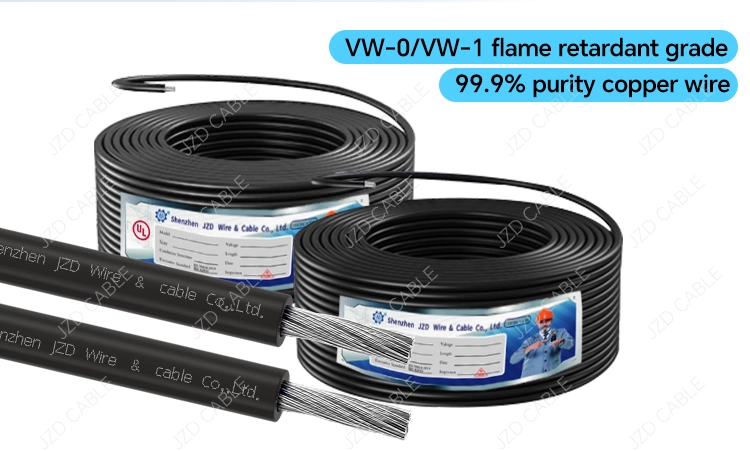

- Insulation: Flame-retardant PVC (UL 10269 compliant)
- Flexibility: Easy routing in dense panels and enclosures

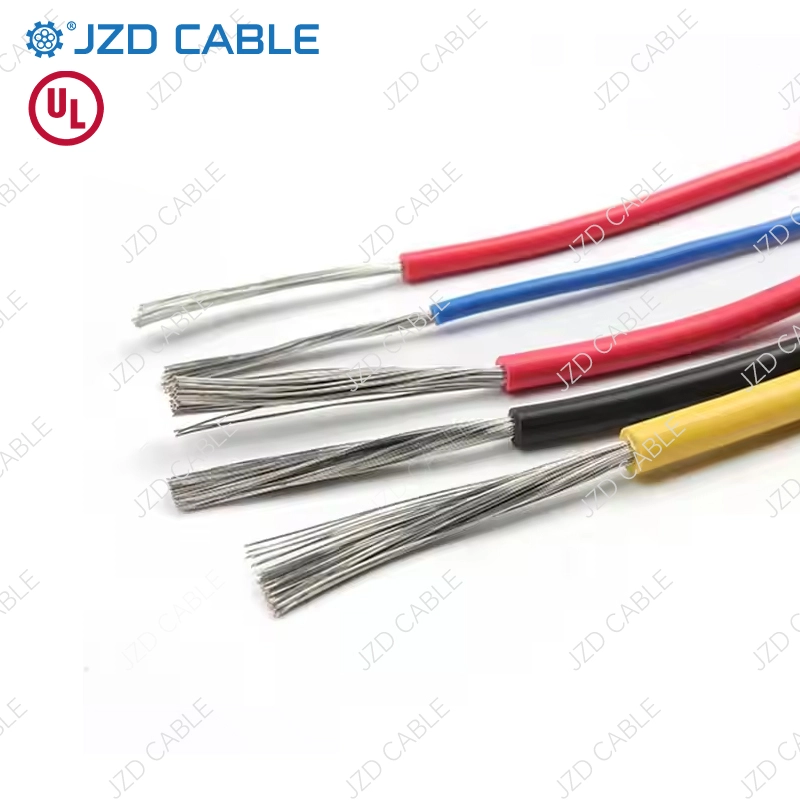

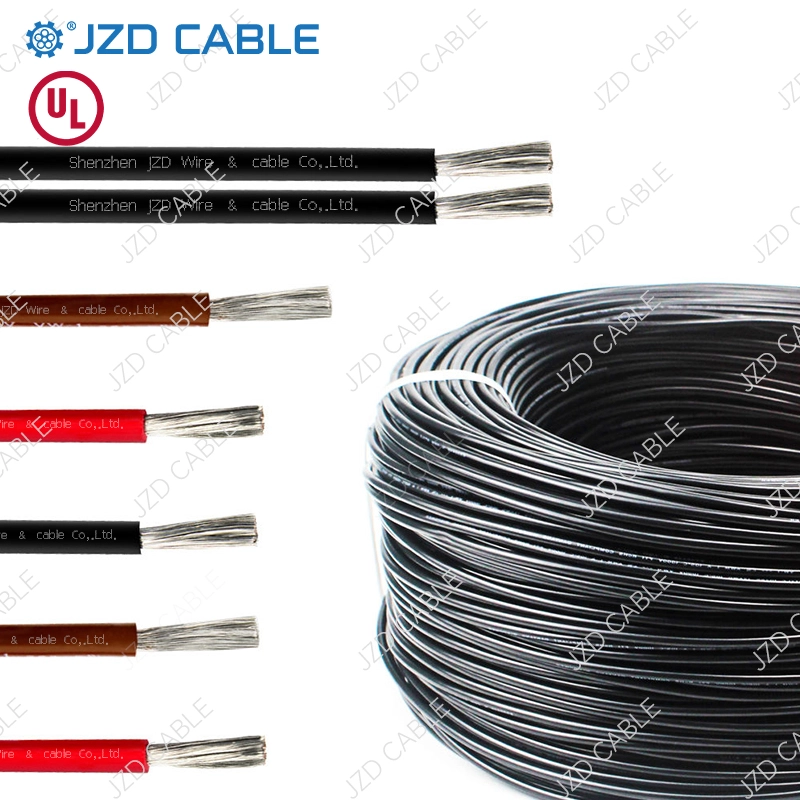

- Colors: Standard/custom options (Black, Red, Yellow, Green, etc.)
- Performance: Low resistance, oxidation-resistant tinning
Specification
| Part Number | Conductor Construction | Nom. Insulation Wall Thickness | Cable | Max. Conductor Resistance at 20°C | ||
|---|---|---|---|---|---|---|
| Conductor Size | No.of strands/Wire Diameter | Nom. Overall Diameter | Weight Approx. | |||
| AWG | Nos./mm | mm | mm | Kg/km | Ω/km | |
| 42577XX* | 10 | 104/0.254 | 0.76 | 5.30 | 64.00 | 3.41 |
| 42576XX | 8 | 168/0.254 | 1.14 | 6.48 | 107.97 | 2.18 |
| 42575XX | 6 | 266/0.254 | 1.52 | 8.27 | 173.59 | 1.38 |
| 42574XX | 4 | 420/0.254 | 1.52 | 9.60 | 254.74 | 0.865 |
| 42573XX | 2 | 665/0.254 | 1.52 | 11.50 | 386.30 | 0.549 |
| 42572XX | 1 | 836/0.254 | 2.03 | 13.49 | 503.40 | 0.436 |
| 42590XX | 1/0 | 1064/0.254 | 2.03 | 14.64 | 614.41 | 0.345 |
| 42591XX | 2/0 | 1323/0.254 | 2.03 | 15.96 | 760.30 | 0.276 |
| 42592XX | 3/0 | 1666/0.254 | 2.03 | 17.33 | 933.14 | 0.219 |
| 42494XX | 4/0 | 2107/0.254 | 2.03 | 18.99 | 1151.96 | 0.173 |
| S42581XX | 18 | 1/1.024 | 0.80 | 2.72 | 14.58 | 21.4 |
| S42580XX | 16 | 1/1.294 | 0.80 | 2.99 | 19.92 | 13.5 |
Application
Optimized for high-heat/high-voltage scenarios where reliability is critical:
- Industrial Control Panels: Main power feeds, PLC wiring, and motor controls in machinery.
- HVAC Systems: Blower motors, compressor wiring, and heat-exchanger connections.
- Power Distribution: Internal wiring in transformers, UPS systems, and switchgear (≤1000V).
- Appliances: Ovens, industrial fryers, commercial dishwashers, and other heat-intensive equipment.
- Renewable Energy: Junction boxes and wiring in solar inverters/battery systems.
- Marine/Outdoor Electronics: Tinned copper resists saltwater corrosion in control cabinets.
- Automation Systems: Robotic arms, conveyors, and CNC machinery requiring heat durability.
