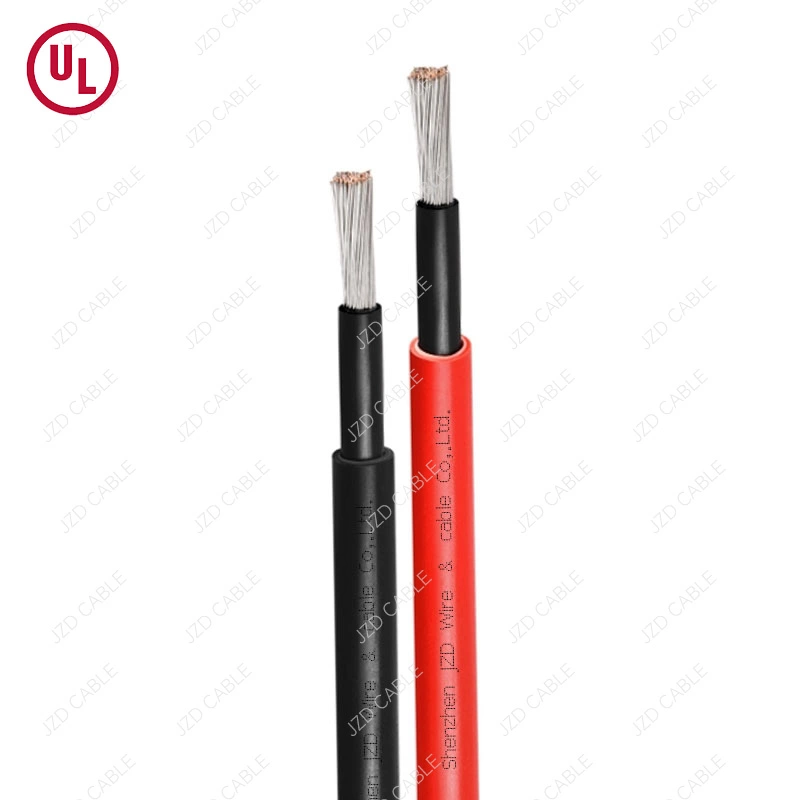

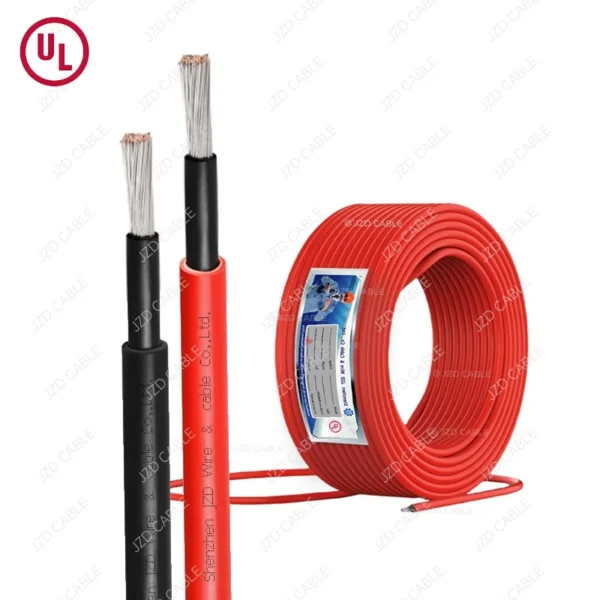

UL4703 PV1-F Solar Cable
ZD Cable offers high-performance UL4703 Certified PV Wire (Type PV1-F), designed specifically for demanding photovoltaic (PV) solar applications in the United States market.
- Certification: Strictly complies with UL4703 standards for Photovoltaic Wire, ensuring safety, reliability, and acceptance in North American solar installations.
- Voltage Ratings: Available in 600V and 1000V/2000V options to meet diverse system voltage requirements. (Note: The 1000V rating is typically for grounded DC circuits, and 2000V for ungrounded DC circuits per NEC).

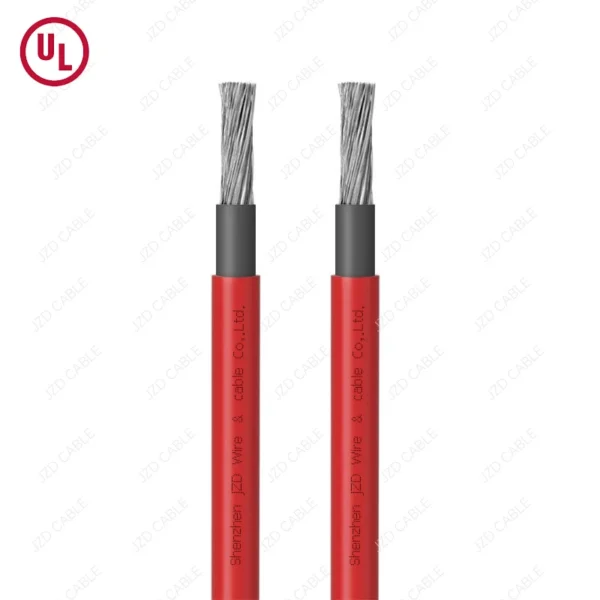

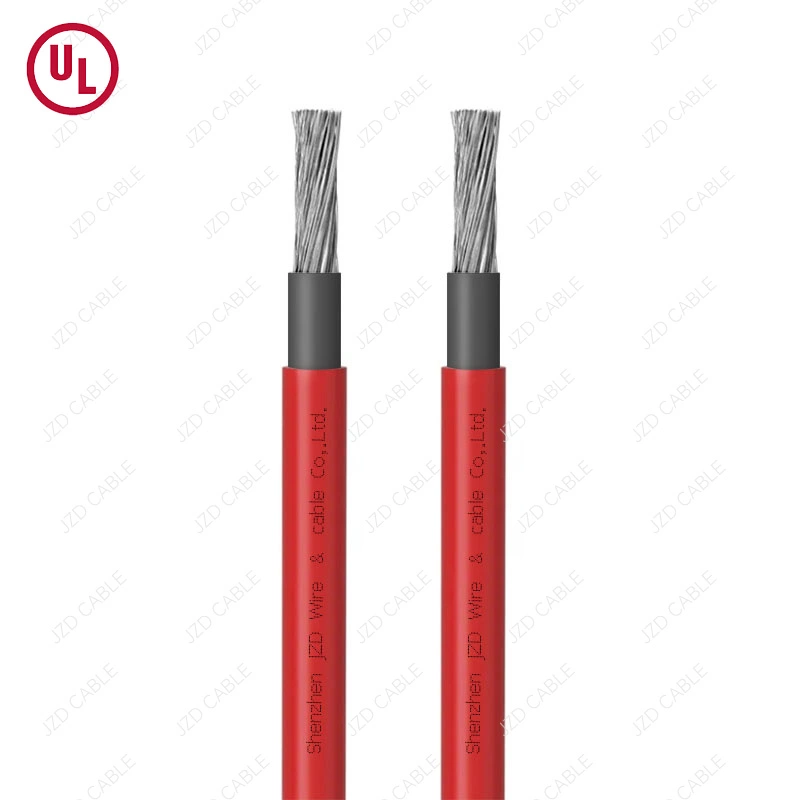

- Robust Construction:

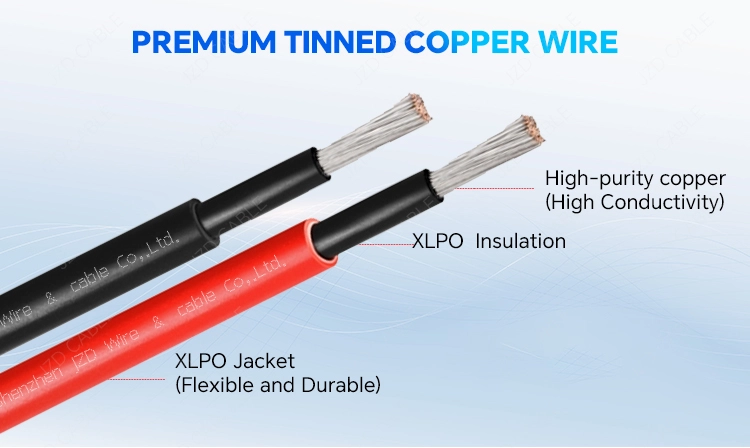

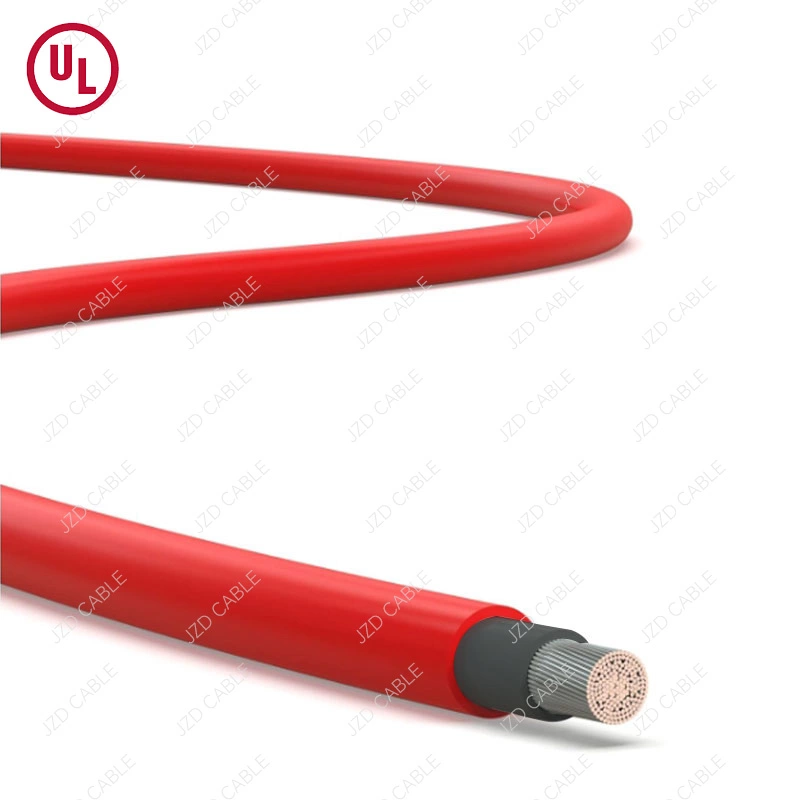

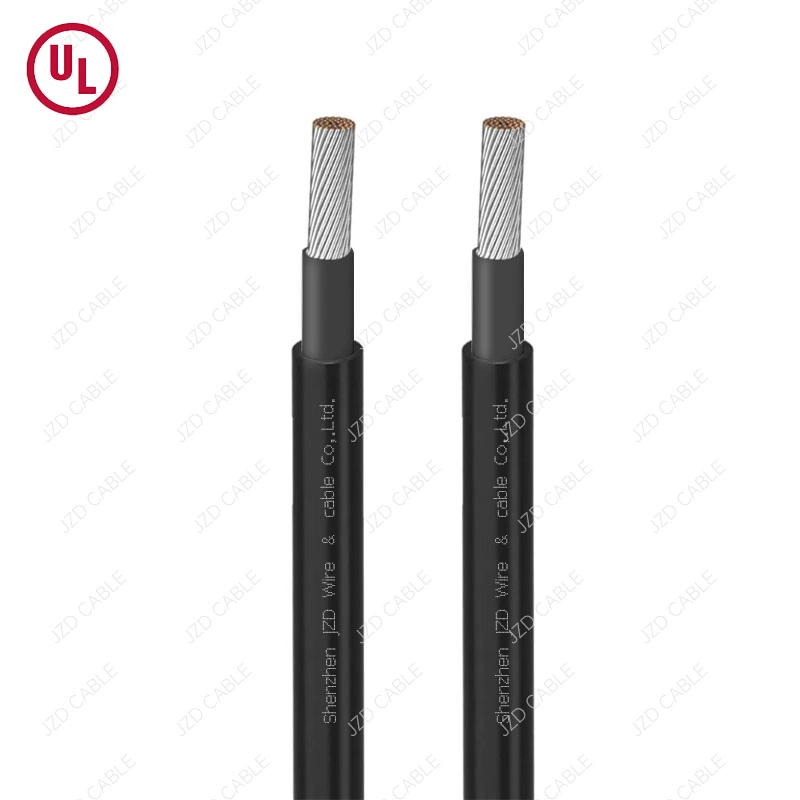

- Conductor: High-purity stranded copper conductor, typically tinned for enhanced corrosion resistance.

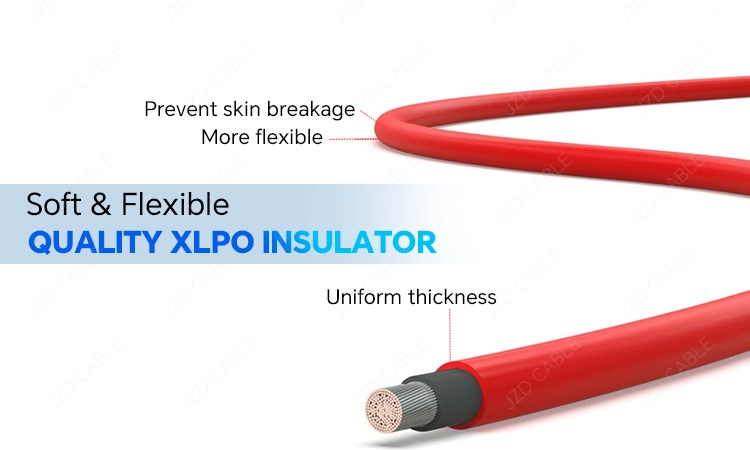

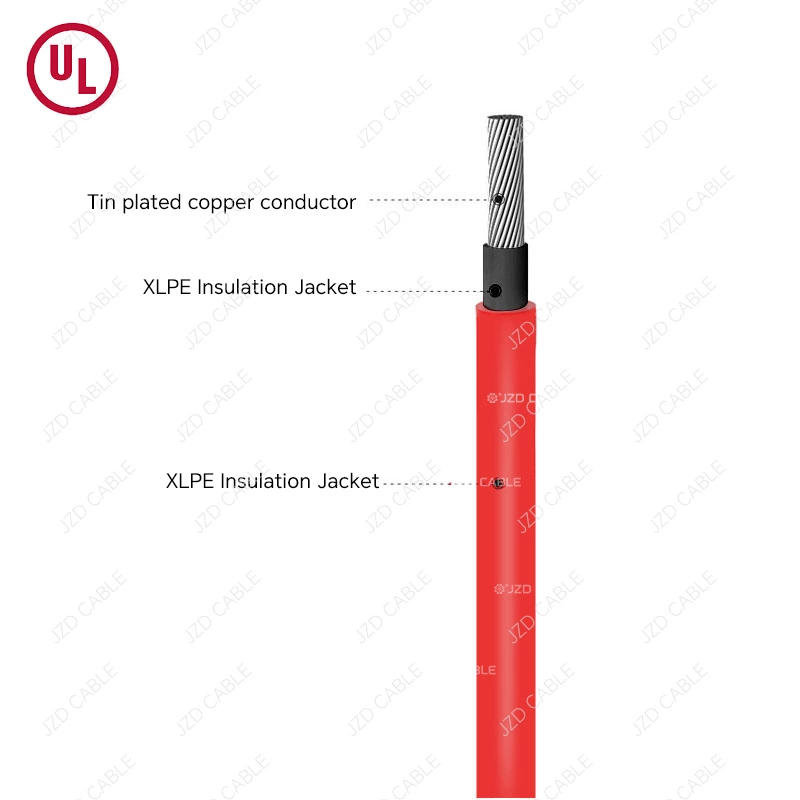

- Insulation & Jacket: Premium Cross-Linked Polyethylene (XLPE) for both insulation and the outer jacket. XLPE provides superior resistance to sunlight (UV), extreme temperatures (-40°C to +90°C), ozone, abrasion, chemicals, and moisture – essential for long-term outdoor exposure.
- Key Properties:
- Weather & UV Resistant: Excellent protection against harsh outdoor environments.
- Flame Retardant: Meets stringent UL flame tests.
- Low Smoke & Halogen Free (LSHF/LSZH): Safer for personnel and property in case of fire (RoHS Compliant).
- Flexibility: Facilitates easy handling and installation within conduit, trays, or exposed on structures.
- Long Service Life: XLPE materials ensure long-term reliability and minimal degradation in solar fields.
- Compliance: Meets RoHS and relevant industry standards (besides UL4703).
Specification
| PV WIRE VOLTAGE:600V MAX.OPERATING TEMP-40℃-90℃ | |||||||||
| Specifications (AWG) |
Conductor structure |
Conductor section |
Insulation thickness |
Insulation outer diameter |
Sheath thickness |
Nom O.D | weight | Bare Copper |
Tinned Copper |
| mm² | mm | mm | mm | mm | kg/km | ||||
| 14 | 41/0.254 | 2.08 | 1.14 | 4.2 | 0.76 | 5.8 | 51.2 | 8.61 | 9.25 |
| 12 | 65/0.254 | 3.31 | 1.14 | 4.7 | 0.76 | 6.3 | 66.4 | 5.43 | 5.82 |
| 10 | 105/0.254 | 5.26 | 1.14 | 5.3 | 0.76 | 6.9 | 88.8 | 3.41 | 3.66 |
| 8 | 165/0.254 | 8.37 | 1.52 | 6.8 | 0.76 | 8.4 | 135 | 2.18 | 2.35 |
| 6 | 266/0.254 | 13.3 | 1.52 | 8.3 | 0.76 | 9.9 | 194.2 | 1.38 | 1.48 |
| 4 | 420/0.254 | 21.15 | 1.52 | 9.6 | 0.76 | 11.2 | 276.8 | 0.865 | 0.928 |
| 2 | 665/0.254 | 33.62 | 1.52 | 11.5 | 0.76 | 13.1 | 406.6 | 0.549 | 0.59 |
| PV WIRE VOLTAGE:1000,2000V MAX.OPERATING TEMP-40℃-90℃ | |||||||||
| Specifications (AWG) |
Conductor structure |
Conductor section |
Insulation thickness |
Insulation outer diameter |
Sheath thickness |
Nom O.D | weight | Bare Copper |
Tinned Copper |
| mm² | mm | mm | mm | 0.76 | kg/km | ||||
| 14 | 41/0.254 | 2.08 | 1.52 | 1.52 | 5 | 0.76 | 6.6 | 8.61 | 9.25 |
| 12 | 65/0.254 | 3.31 | 1.52 | 1.52 | 5.4 | 0.76 | 7 | 5.43 | 5.82 |
| 10 | 105/0.254 | 5.26 | 1.52 | 1.52 | 6.05 | 0.76 | 7.6 | 3.41 | 3.66 |
| 8 | 165/0.254 | 8.37 | 1.77 | 1.77 | 7.3 | 0.76 | 8.9 | 2.18 | 2.35 |
| 6 | 266/0.254 | 13.3 | 1.77 | 1.77 | 8.8 | 0.76 | 10.4 | 1.38 | 1.48 |
| 4 | 420/0.254 | 21.15 | 1.77 | 1.77 | 10.1 | 0.76 | 11.7 | 0.865 | 0.928 |
| 2 | 665/0.254 | 33.62 | 1.77 | 1.77 | 12 | 0.76 | 13.6 | 0.549 | 0.59 |
Application
JZD Cable’s UL4703 PV1-F Wire is the essential interconnection cable specifically engineered for DC circuits in photovoltaic power systems operating in the US and requiring UL listing. Its primary uses include:
- Module-to-Module Interconnections: Connecting individual solar panels together within an array string.
- String-to-Combiner Box Wiring: Running the primary DC cables from the solar strings into a central combiner box.
- Combiner Box to Inverter Wiring: Connecting the output of the combiner box to the DC input terminals of the central or string inverter(s).
- Wiring Within PV Junction Boxes: Internal wiring inside component boxes certified for the application.
- Exposed Runs on Racking Systems: Suitable for use on PV module support structures where appropriately secured and protected according to NEC guidelines (e.g., using appropriate cable management).
- Use in Conduit or Raceways: Installed inside conduit, trunking, or cable trays for added physical protection where required.
- Residential, Commercial & Utility-Scale PV Systems: Versatile cable suitable for all scales of grid-tied or off-grid solar installations demanding UL4703 listed components.

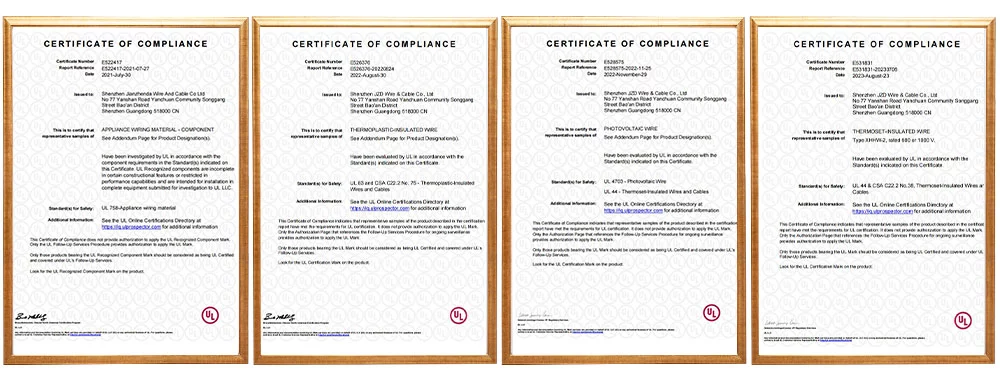

Certification
