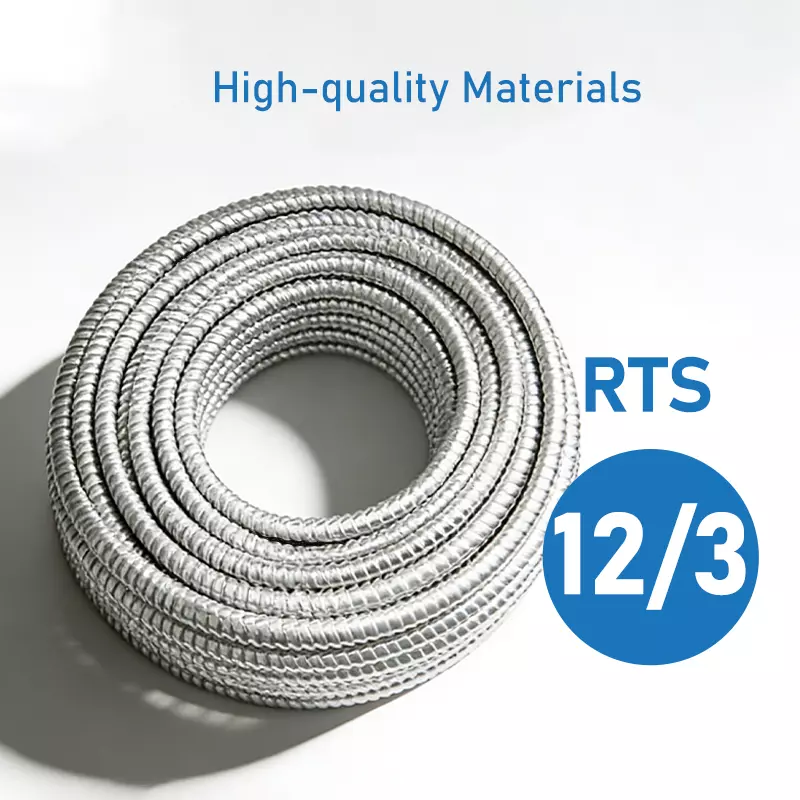

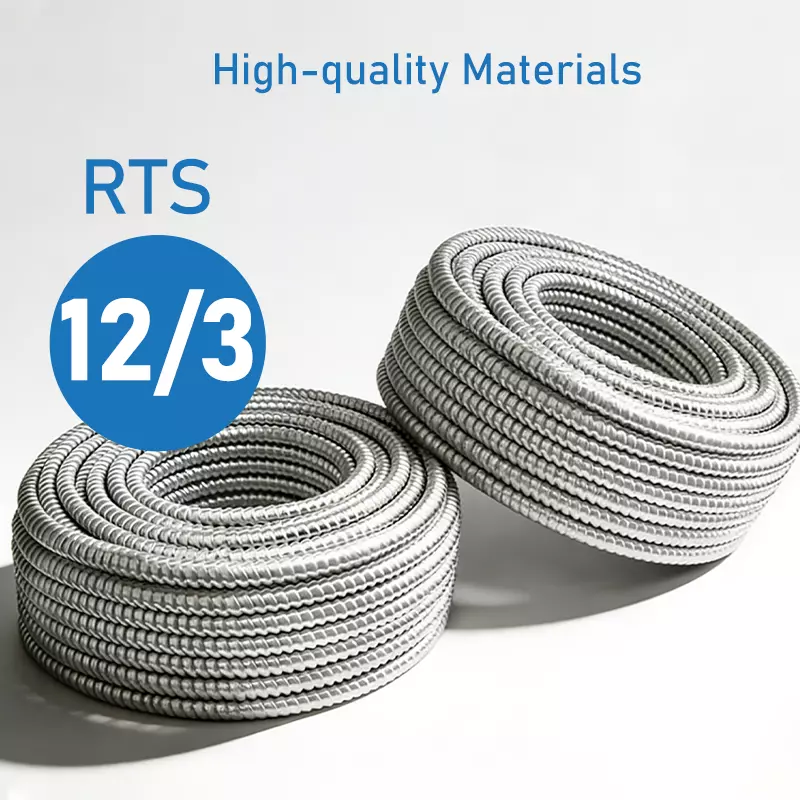

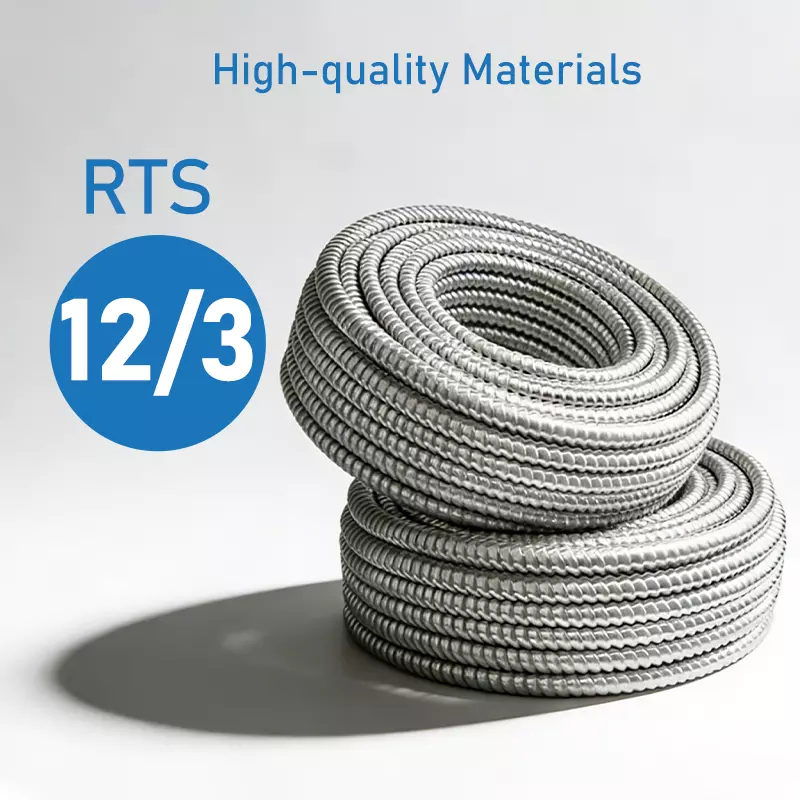

12/3 MC Cable

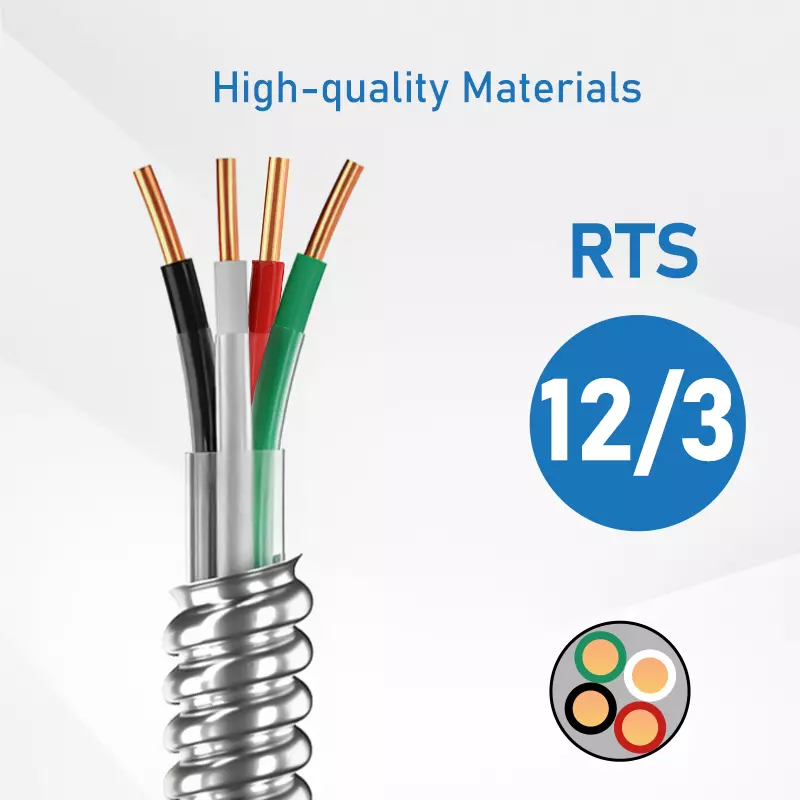

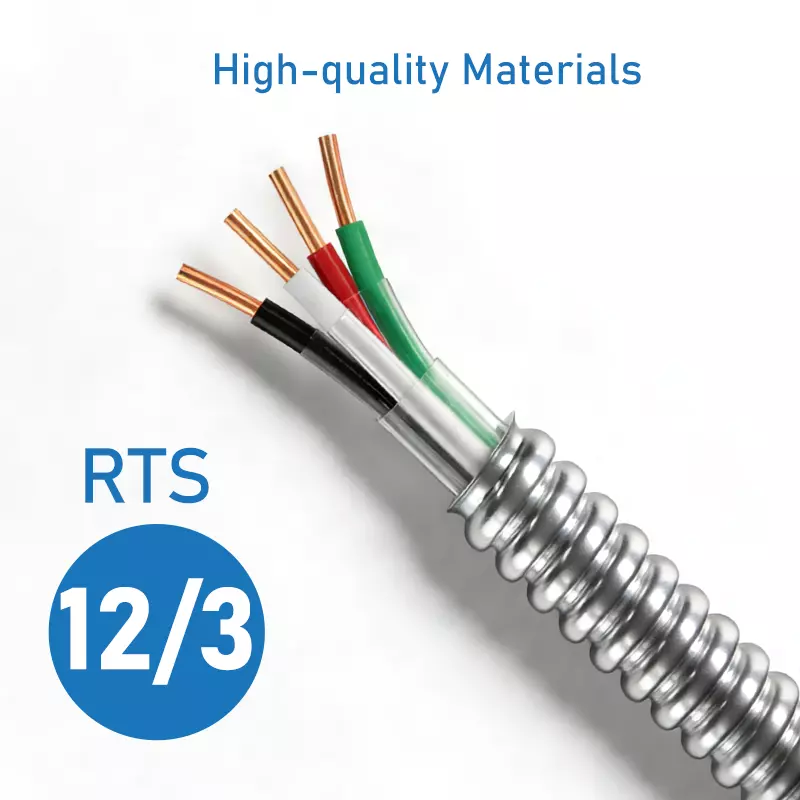

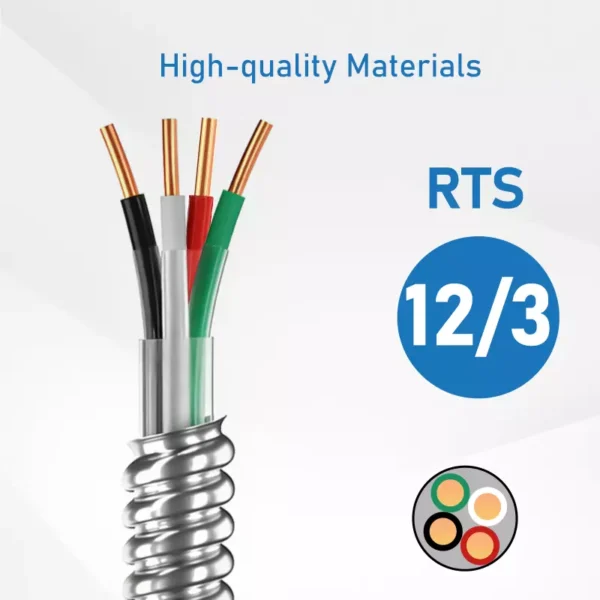

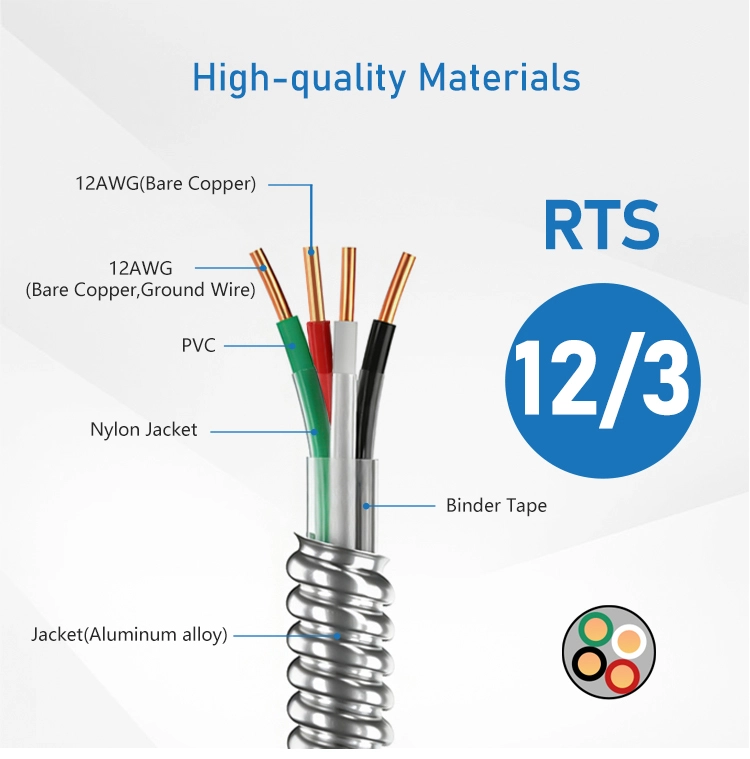

JZD Cable’s 12/3 MC Cable is a UL-listed, aluminum-interlocked armored cable designed for reliable power distribution in demanding environments. This 12 AWG, 3-conductor + ground configuration provides two hot wires, one neutral, and a dedicated ground—ideal for three-way switching, split receptacles, and shared-neutral circuits. Fully compliant with UL 1569, NEC Article 330, and NFPA 70, it delivers 600V voltage capacity with a 90°C dry / 75°C wet temperature rating.
Key Features:
✅ UL Certification: Meets UL 83, UL 1479 (firestop), UL 1569, and UL 1581 standards.

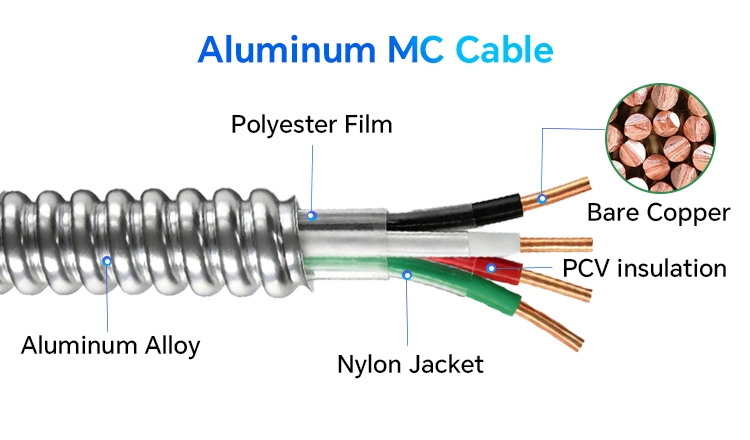

✅ Robust Construction: Solid copper conductors with THHN/THWN-2 insulation for moisture/chemical resistance.
✅ Aluminum Interlocked Armor: Lightweight, corrosion-resistant, and crush-proof—no conduit required.
✅ Fire-Rated: Listed for 1‑, 2‑, and 3‑hour through‑penetration firestop systems (UL 1479).
✅ Easy Installation: Pre‑lubricated armor simplifies pulling; anti‑short bushing not needed.
Specification
|
CONDUCTOR
SIZE* (AWG) |
CONDUCTOR TYPE
|
GROUNDING CONDUCTOR SIZE (AWG)**
|
OVERALL DIAMETER (inches)
|
AMPACITY (AMPS)
|
||
|
60°C
|
75°C
|
90°C
|
||||
|
14/2
|
Solid
|
14
|
0.439
|
15
|
15
|
15
|
|
14/3
|
Solid
|
14
|
0.464
|
15
|
15
|
15
|
|
14/4
|
Solid
|
14
|
0.494
|
15
|
15
|
15
|
|
12/2
|
Stranded
|
12
|
0.494
|
20
|
20
|
20
|
|
12/2
|
Solid
|
12
|
0.475
|
20
|
20
|
20
|
|
12/3
|
Stranded
|
12
|
0.527
|
20
|
20
|
20
|
|
12/3
|
Solid
|
12
|
0.505
|
20
|
20
|
20
|
|
12/4
|
Stranded
|
12
|
0.564
|
20
|
20
|
20
|
|
12/4
|
Solid
|
12
|
0.539
|
20
|
20
|
20
|
|
10/2
|
Stranded
|
10
|
0.566
|
30
|
30
|
30
|
|
10/2
|
Solid
|
10
|
0.542
|
30
|
30
|
30
|
|
10/3
|
Solid
|
10
|
0.580
|
30
|
30
|
30
|
|
10/4
|
Stranded
|
10
|
0.653
|
30
|
30
|
30
|
|
10/4
|
Solid
|
10
|
0.623
|
30
|
30
|
30
|
|
8/2
|
Stranded
|
10
|
0.678
|
40
|
50
|
55
|
|
8/3
|
Stranded
|
10
|
0.678
|
40
|
50
|
55
|
|
8/4
|
Stranded
|
10
|
0.732
|
40
|
50
|
55
|
|
6/2
|
Stranded
|
8
|
0.716
|
55
|
65
|
75
|
|
6/3
|
Stranded
|
8
|
0.756
|
55
|
65
|
75
|
|
6/4
|
Stranded
|
8
|
0.819
|
55
|
65
|
75
|
|
4/3
|
Stranded
|
8
|
0.986
|
70
|
85
|
95
|
|
4/4
|
Stranded
|
8
|
1.077
|
70
|
85
|
95
|
|
3/3
|
Stranded
|
6
|
1.053
|
85
|
100
|
110
|
|
3/4
|
Stranded
|
6
|
1.152
|
85
|
100
|
110
|
|
2/3
|
Stranded
|
6
|
1.130
|
95
|
115
|
130
|
|
2/4
|
Stranded
|
6
|
1.239
|
95
|
115
|
130
|
Application
Our 12/3 MC Cable is engineered for versatile, code‑compliant installations:
- Commercial & Multi‑Residential Buildings
- Branch circuits, feeder lines, and service distribution.
- Lighting controls (three‑way switching), HVAC systems, and elevator power.
- Industrial & Institutional Facilities
- Motor controls, conveyor systems, and machinery wiring.
- Hazardous locations (Class I Div. 2, Class II Div. 2, Class III Div. 1).
- Entertainment & Assembly Venues
- Theaters, motion‑picture studios, and places of assembly (100+ people) per NEC 518.4/520.5.
- IT & Data Environments
- Under‑raised‑floor wiring for IT equipment (NEC Article 645).
- Environmental air‑handling spaces (NEC 300.22(C)).
- Retrofit & Renovation Projects
- Exposed or concealed runs; fished in plaster or installed in cable tray/raceways.
