ZC-YJV Power Cable 0.6/1kV 4×95+2x50mm²

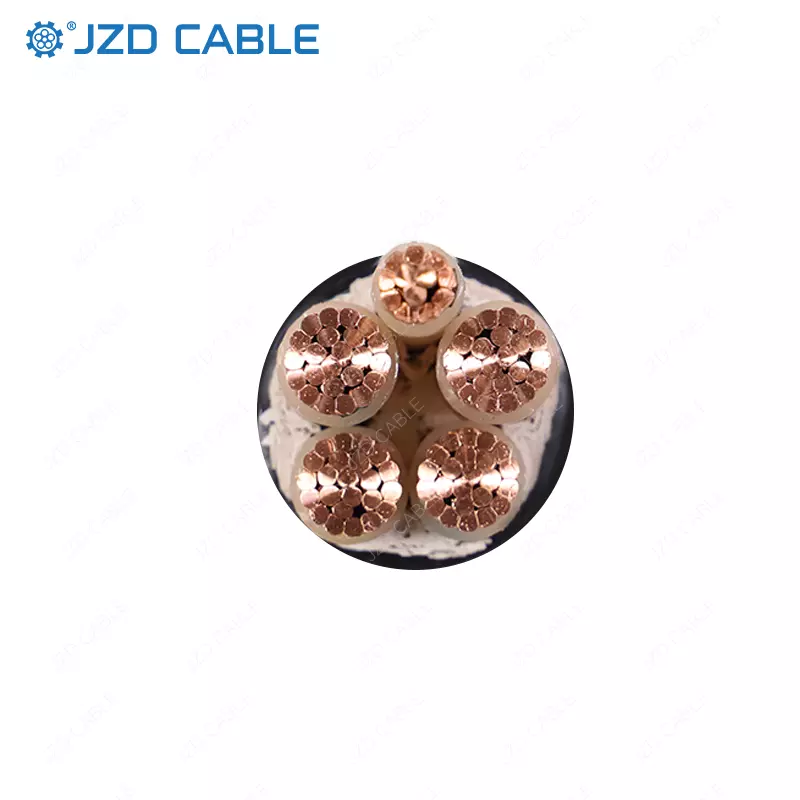

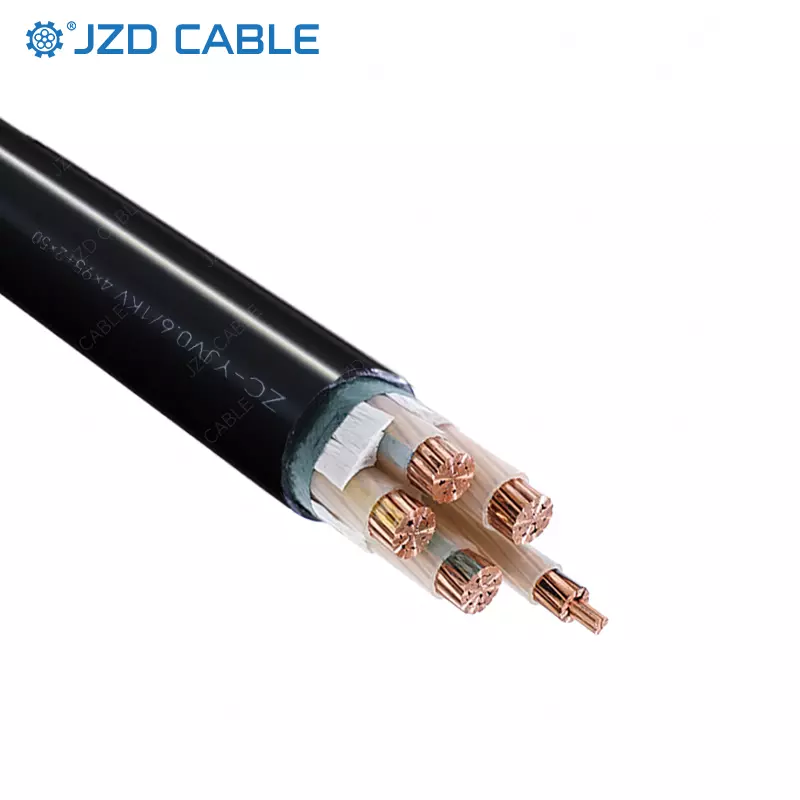

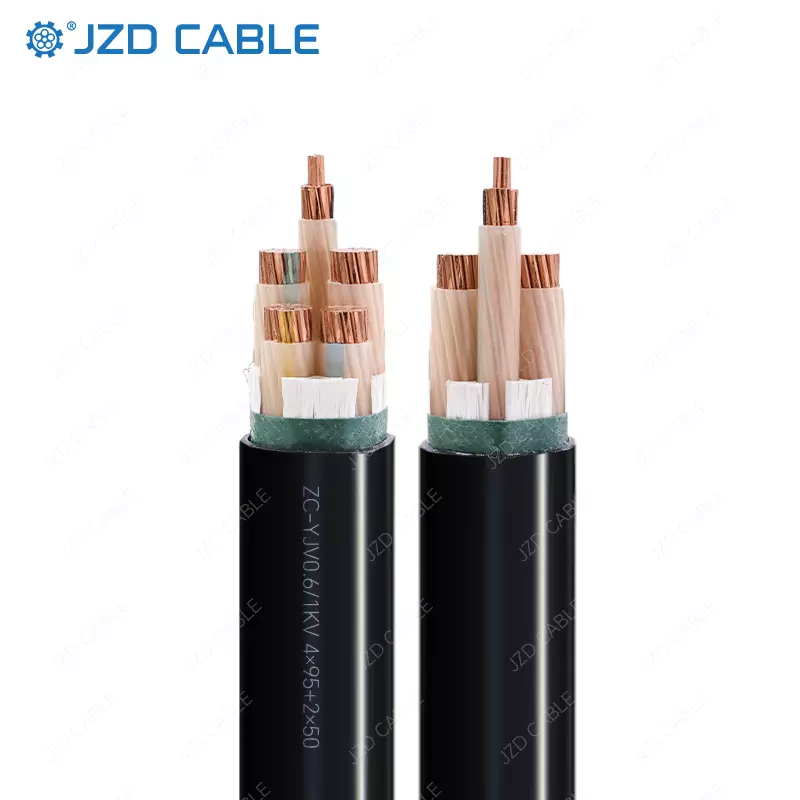

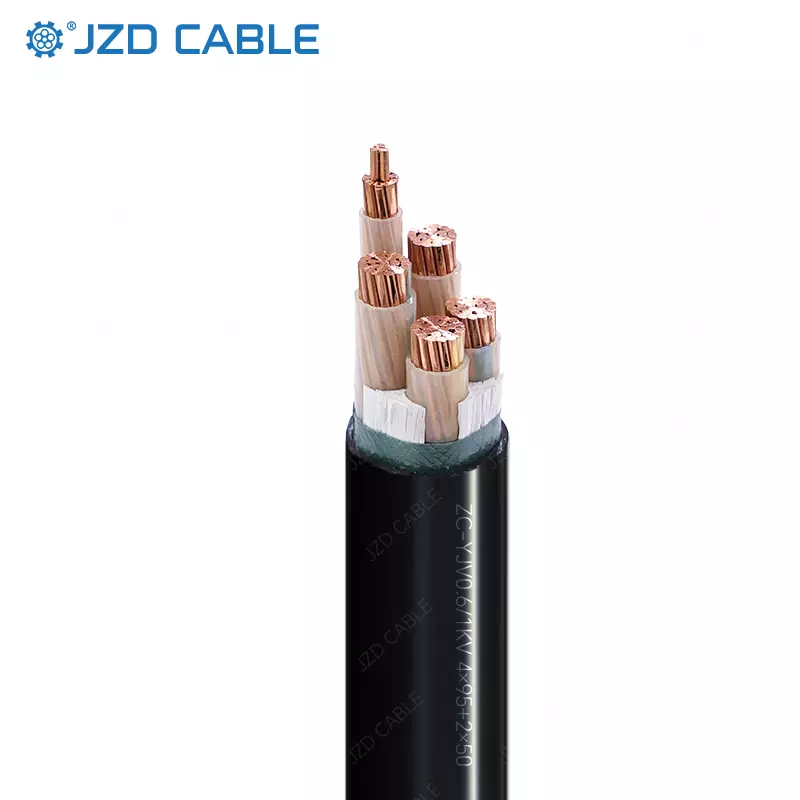

Our ZC-YJV Flame Retardant Class C Power Cable in the configuration 4x95mm²+2x50mm² is engineered for high-capacity three-phase, four-wire plus earth electrical distribution systems where enhanced fire safety is critical. Rated for 0.6/1kV, this cable features four 95mm² phase conductors, one 50mm² neutral conductor, and one 50mm² protective earth conductor, all made of high-conductivity copper. It is insulated with flame-retardant cross-linked polyethylene (XLPE) and sheathed with flame-retardant polyvinyl chloride (PVC).
Key Differentiators
- Three-Phase, Four-Wire + Earth Configuration: The 4×95+2x50mm² design is specifically tailored for modern three-phase systems requiring a separate neutral and a substantial protective earth conductor, capable of handling high and potentially unbalanced loads.
- Flame Retardant Class C Performance: Certified to inhibit flame propagation, providing a critical safety upgrade over standard (non-Z) YJV cables. This is especially important for high-power cables often installed in bundled or high-risk areas.
- High-Current Carrying Capacity: The large 95mm² phase conductors are designed for applications with substantial power demands, ensuring efficient energy transmission with minimal losses.
- Enhanced Safety for Grouped Installations: The flame-retardant construction of both insulation and sheath provides vital protection when cables are installed in groups within trays, ducts, or risers, a common scenario for main power feeds.
- Performance and Safety: Offers the current-carrying capacity and durability of standard YJV cables, augmented with verified flame-retardant properties for applications demanding a higher safety standard.
Application
This cable is designed for high-power, three-phase, four-wire plus earth distribution networks that require reliable performance and an added layer of fire safety.
- Commercial Building Main Risers & Feeders: Supplying power from the main service entrance to distribution panels in large office buildings, shopping malls, and hotels, where its flame-retardant properties are crucial for vertical installations.
- Industrial Plant Power Distribution: Powering heavy machinery, high-capacity manufacturing lines, and large-scale HVAC systems in factories and warehouses.
- Critical Infrastructure & Data Centers: Used for robust power distribution in hospitals, data centers, and transportation hubs, where system reliability and fire containment are top priorities.
- Cable Tray & Duct Installations: Particularly suitable for grouped installations in cable management systems, where its Class C flame retardant performance helps prevent fire from propagating between cables.
Certification
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
