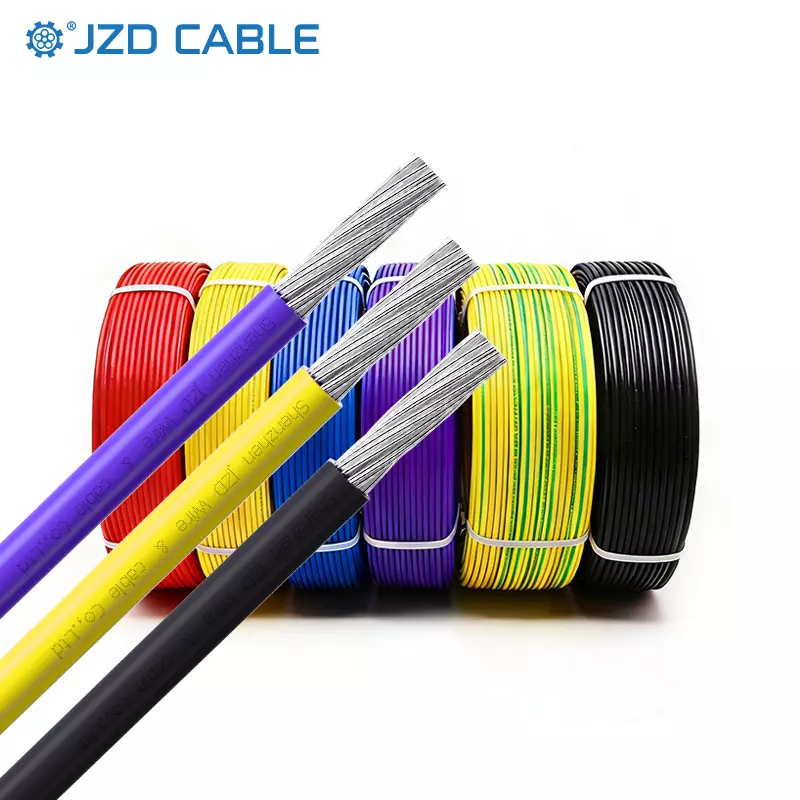

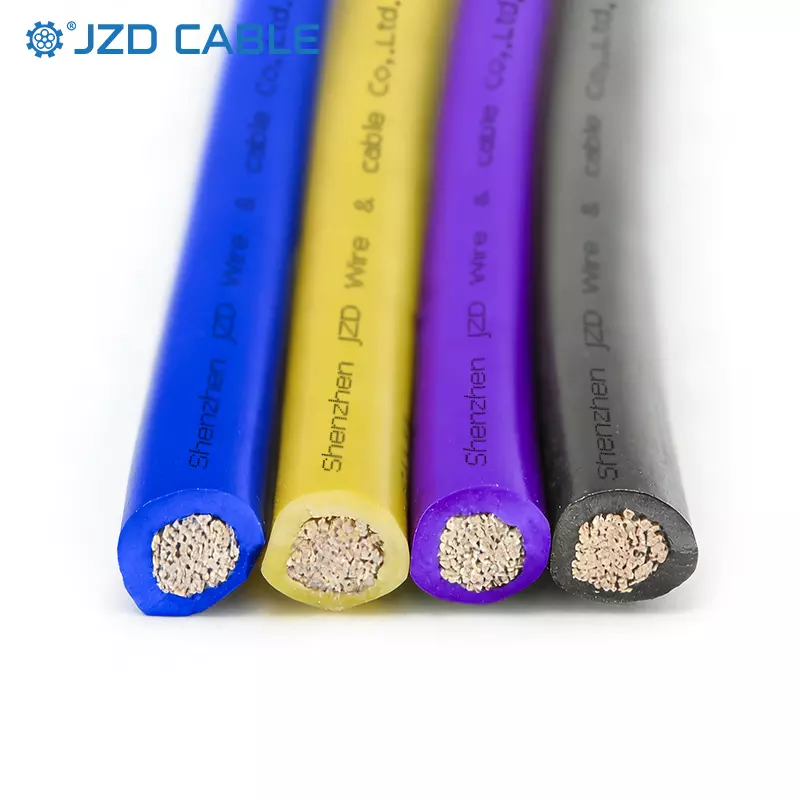

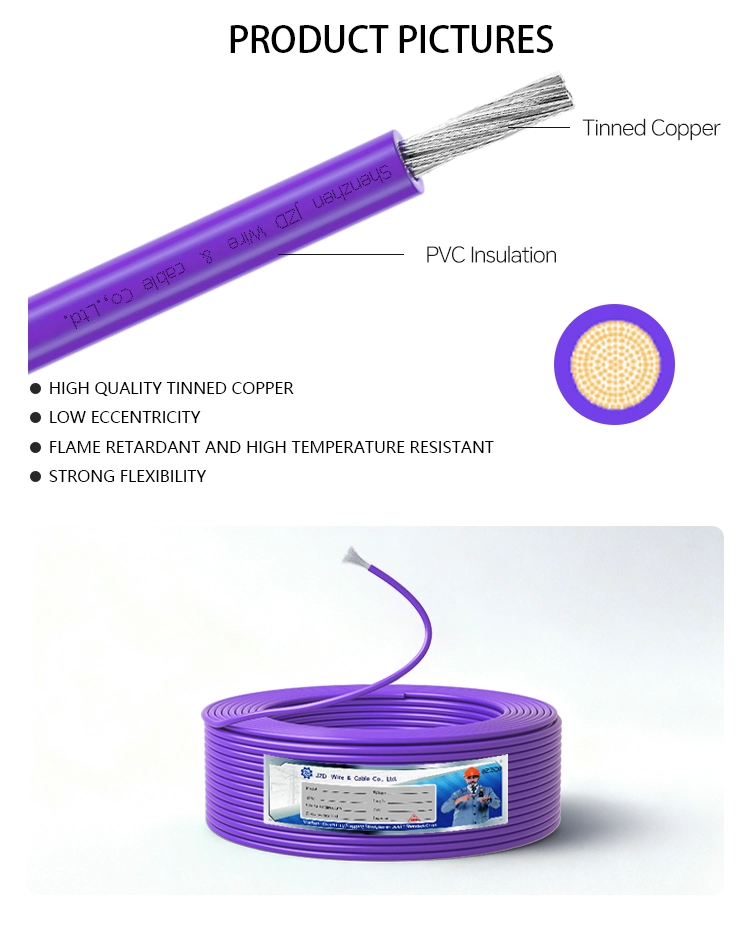

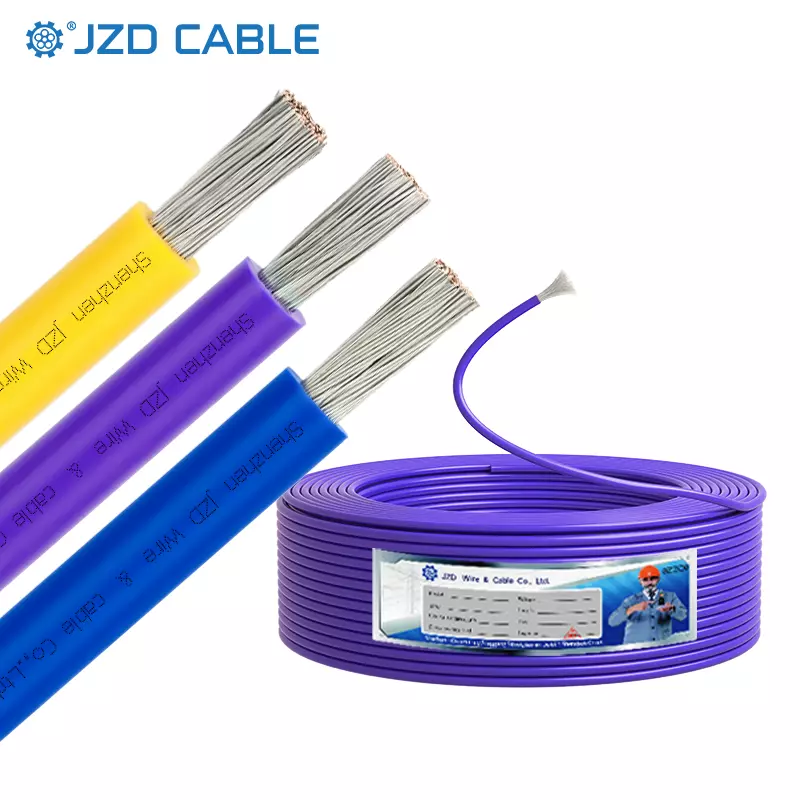

UL1007 Hook-Up Wire

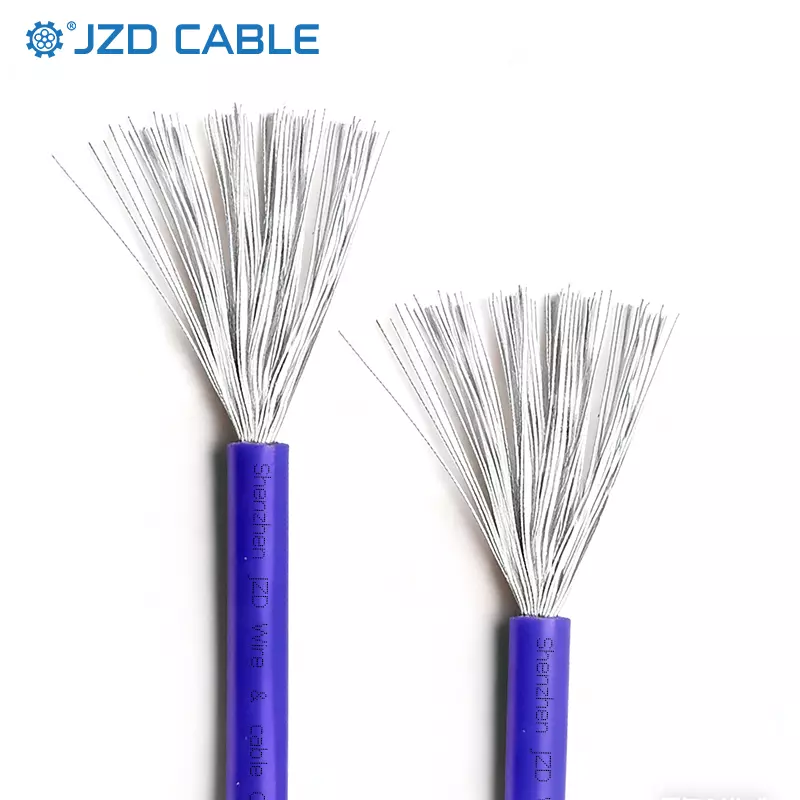

UL1007 Electronic Hook‑Up Wire from JZD Cable is a UL758‑certified, PVC‑insulated single‑conductor wire designed for internal wiring in electronic and electrical equipment. Rated for 300V and 80°C (105°C optional), it features stranded tinned copper conductors and thin‑wall PVC insulation that delivers superior flexibility and space‑saving performance. The wire meets UL VW‑1 flame‑retardant and CSA FT1 standards, ensuring safety in demanding environments. Available in 30‑16 AWG with a wide range of colors, it is RoHS/REACH compliant and suitable for automated assembly and high‑density wiring applications.

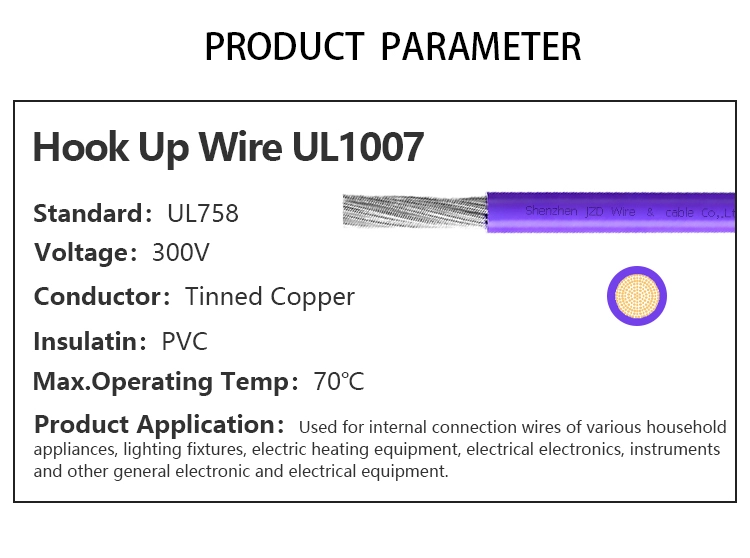

Key Specifications:
- Voltage Rating: 300V AC/DC
- Temperature Rating: 80°C (standard), 105°C (optional)

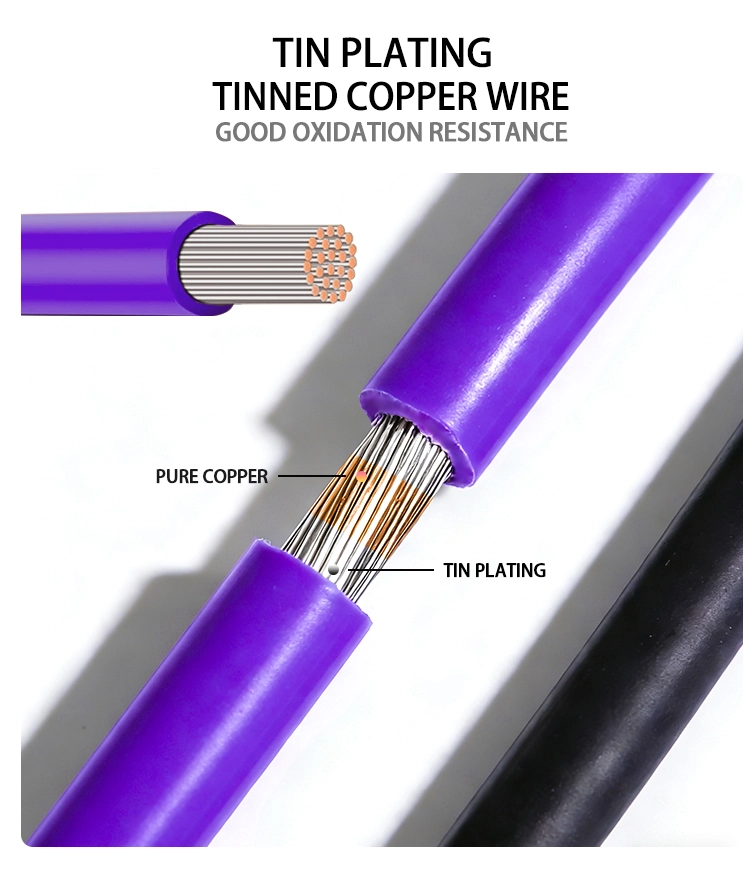

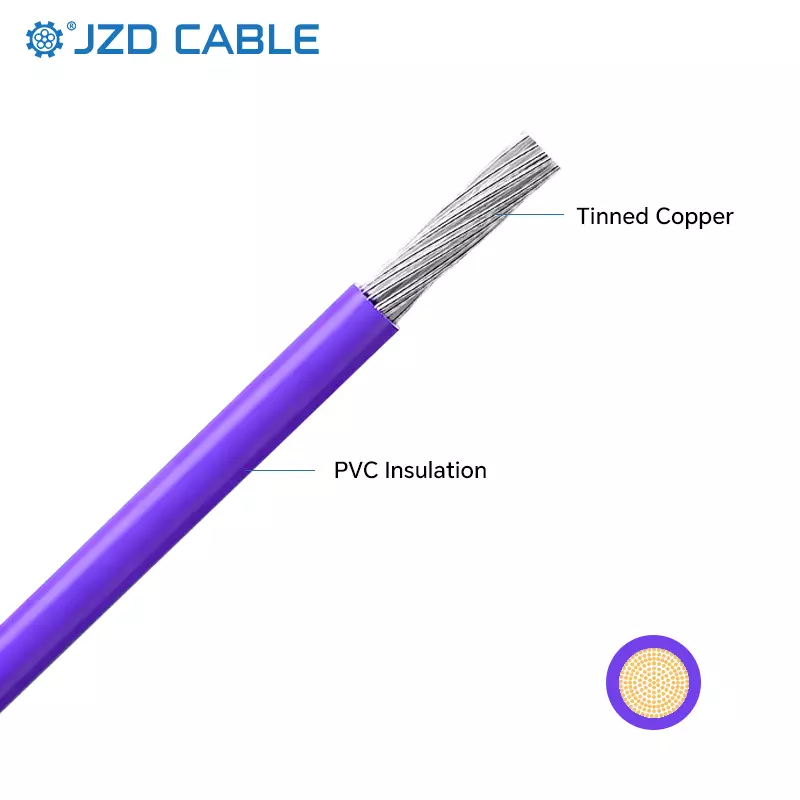

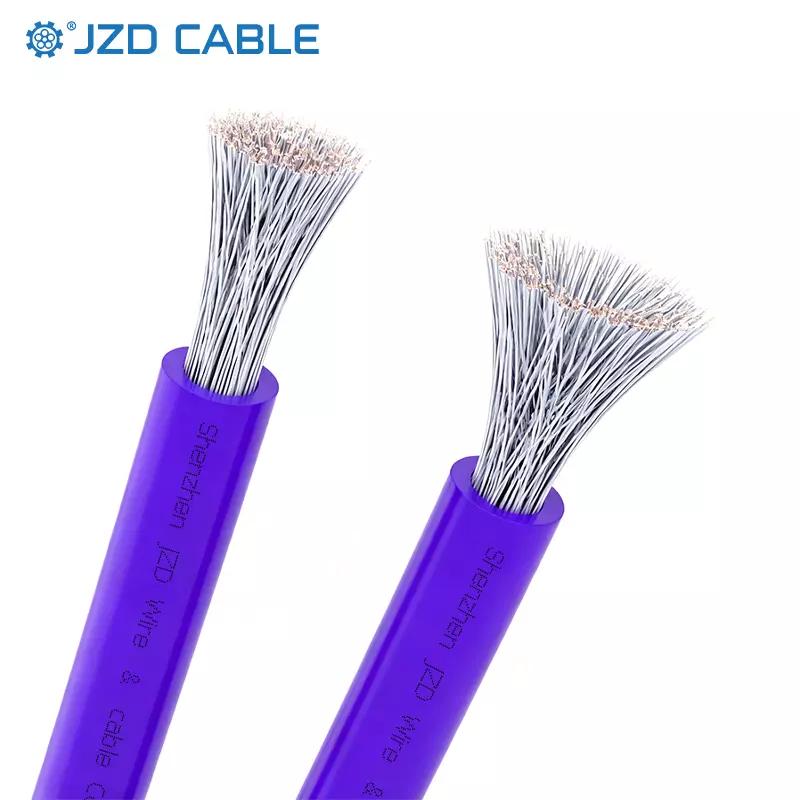

- Conductor: Stranded/solid bare or tinned copper
- Insulation: PVC, nominal thickness 0.41 mm (16 mils)
- Gauge Range: 30 AWG to 16 AWG
- Certifications: UL758, UL1581, CSA C22.2 No. 210.2, VW‑1 flame test
Specification
|
CONDUCTOR
|
INSULATION
|
MAX.COND. RESISTANCE (Q/km,20°C,DC)
|
DIELECTRIC STRENGTH (VAC, Imin)
|
|||
|
AWG
|
CONSTRUCTION
(No./mm) |
DIA.
(mm) |
THICKNESS (mm)
|
O.D.
(mm) |
||
|
30
|
1/0.254
|
0.25
|
0.40
|
1.05
|
361
|
2,000
|
|
7/0.10
|
0.30
|
0.40
|
1.10
|
381
|
||
|
28
|
1/0.32
|
0.32
|
0.39
|
1.10
|
227
|
2,000
|
|
7/0.127
|
0.38
|
0.41
|
1.20
|
239
|
||
|
7/0.127OS-1*
|
0.38
|
0.41
|
1.20
|
239
|
||
|
26
|
1/0.404
|
0.40
|
0.43
|
1.25
|
143
|
2,000
|
|
7/0.16
|
0.48
|
0.41
|
1.30
|
150
|
||
|
7/0.16OS-1*
|
0.48
|
0.41
|
1.30
|
150
|
||
|
24
|
1/0.511
|
0.51
|
0.42
|
1.35
|
89.3
|
2,000
|
|
11/0.16
|
0.61
|
0.40
|
1.40
|
94.2
|
||
|
7/0.200S-1*
|
0.60
|
0.40
|
1.40
|
94.2
|
||
|
22
|
1/0.643
|
0.64
|
0.43
|
1.50
|
56.4
|
2000
|
|
17/0.16
|
0.76
|
0.42
|
1.60
|
59.4
|
||
|
7/0.254 OS-1*
|
0.76
|
0.42
|
1.60
|
59.4
|
||
|
20
|
1/0.813
|
0.81
|
0.42
|
1.65
|
35.2
|
2,000
|
|
26/0.16
|
0.94
|
0.43
|
1.80
|
36.7
|
||
|
7/0.32OS-1*
|
0.96
|
0.42
|
1.80
|
36.7
|
||
|
18
|
1/1.024
|
1.02
|
0.41
|
1.85
|
22.2
|
2,000
|
|
41/0.16
|
1.18
|
0.47
|
2.10
|
23.2
|
||
|
7/0.4040S-1*
|
1.21
|
0.45
|
2.10
|
23.2
|
||
|
16
|
1/1.29
|
1.29
|
0.46
|
2.20
|
14.0
|
2,000
|
|
26/0.254
|
1.49
|
0.46
|
2.40
|
14.6
|
||
Comparison
Application
UL1007 wire is the go‑to solution for low‑voltage internal wiring across diverse industries due to its balance of flexibility, safety, and cost‑effectiveness.
Primary Application Areas:
- Consumer Electronics: Internal wiring of TVs, printers, monitors, gaming consoles, and power adapters.
- LED Lighting Systems: Low‑voltage connections in LED strips, fixtures, and signage.
- Appliance Wiring: Microwave ovens, washing machines, coffee makers, and other household appliances.
- Industrial Controls: Wiring for PLC panels, sensors, meters, and instrumentation.
- Automotive Electronics: Non‑engine‑compartment wiring (e.g., dashboard, audio systems, sensors).
- IoT & Smart Devices: Connections in routers, smart‑home devices, and wearable electronics.
- Medical Equipment: Diagnostic devices and patient monitors (where low‑noise signal integrity is critical).
- Renewable Energy: Low‑voltage wiring in solar micro‑inverters and battery‑monitoring systems.
Certification
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
