ZC-YJV Fire Resistant Cable

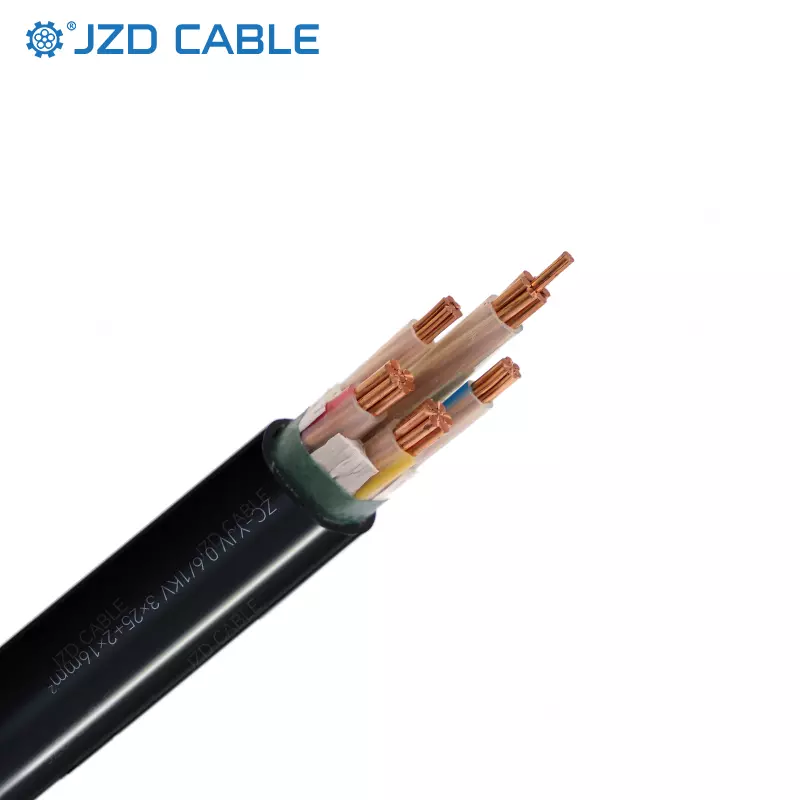

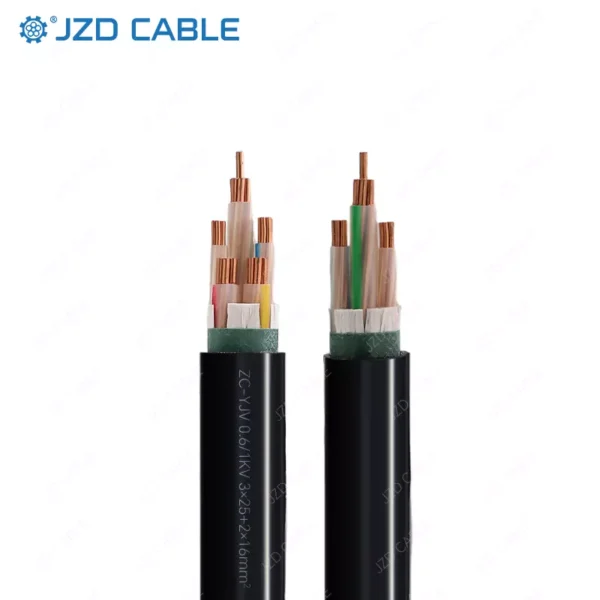

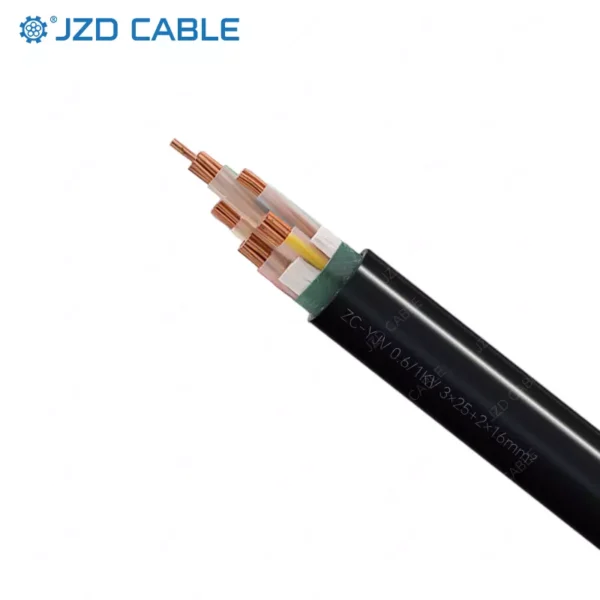

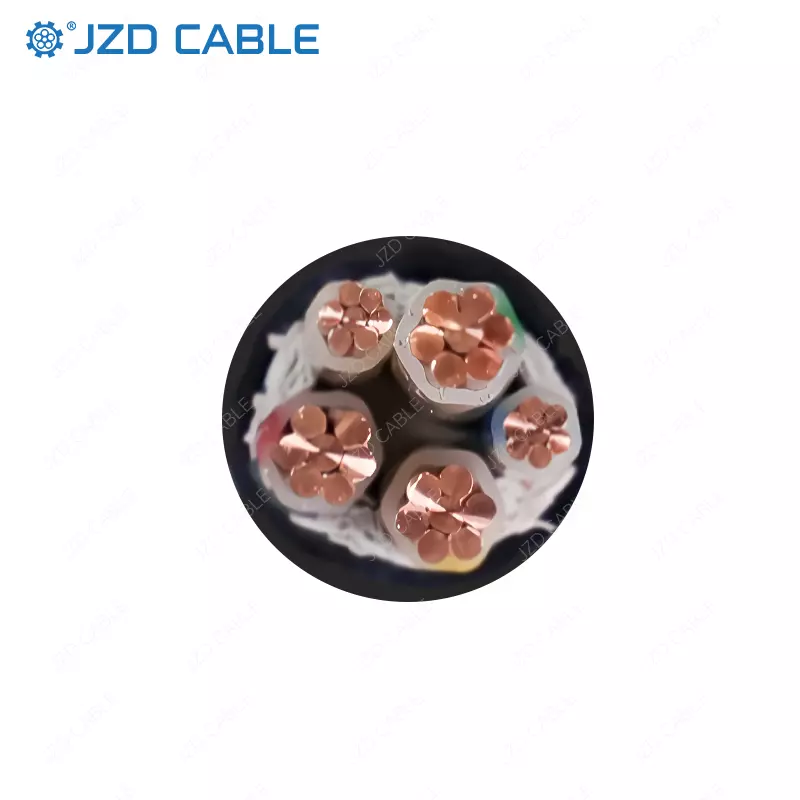

Our ZC-YJV flame retardant power cable is specifically engineered to inhibit the spread of flame along its length in the event of a fire, significantly reducing the risk of fire propagation through cable trays, ducts, or shafts. Rated at 0.6/1kV, this cable configuration consists of three 25mm² phase conductors and two 16mm² neutral/earth conductors, all made of high-conductivity copper for efficient power distribution.
Key Differentiators
- Flame Propagation Inhibition: The core function is to limit the spread of flame along the cable. Once the external fire source is removed, the cable is designed to self-extinguish, unlike standard YJV cables which may continue to burn.
- Material Formulation: Uses specialized flame-retardant compounds in both its insulation (XLPE) and sheath (PVC), which is a key differentiator from the materials used in standard grades.
- Compliance with Class C Standard: Manufactured and tested to meet recognized flame retardant class standards (e.g., IEC 60332, Class C), which involves stricter performance criteria than those for non-retardant cables.
- Application for Group Installations: Specifically suited and often specified for vertical runs and bundled installations where limiting fire spread is a major safety concern, providing an essential safety upgrade over standard cables in such scenarios.
Application
The ZC-YJV flame retardant cable is essential for installations where slowing fire spread is a key safety consideration, particularly in vertically bundled runs or crowded areas.
- Vertical Shafts and Risers: Ideal for main power risers in multi-story buildings, such as apartments, hotels, and office towers, where preventing fire from traveling between floors is critical.
- Commercial Complexes and Public Spaces: Suitable for power distribution in shopping malls, cinemas, airports, and subway stations where large numbers of people are present.
- Cable Bundles and Trays: Recommended for use in grouped installations within cable trays, ladders, or ducts, where the risk of flame propagation between cables is higher.
- General Installations Requiring Enhanced Safety: A prudent choice for hospitals, schools, data centers, and industrial plants seeking an added layer of fire safety beyond standard cables.
Certification
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
