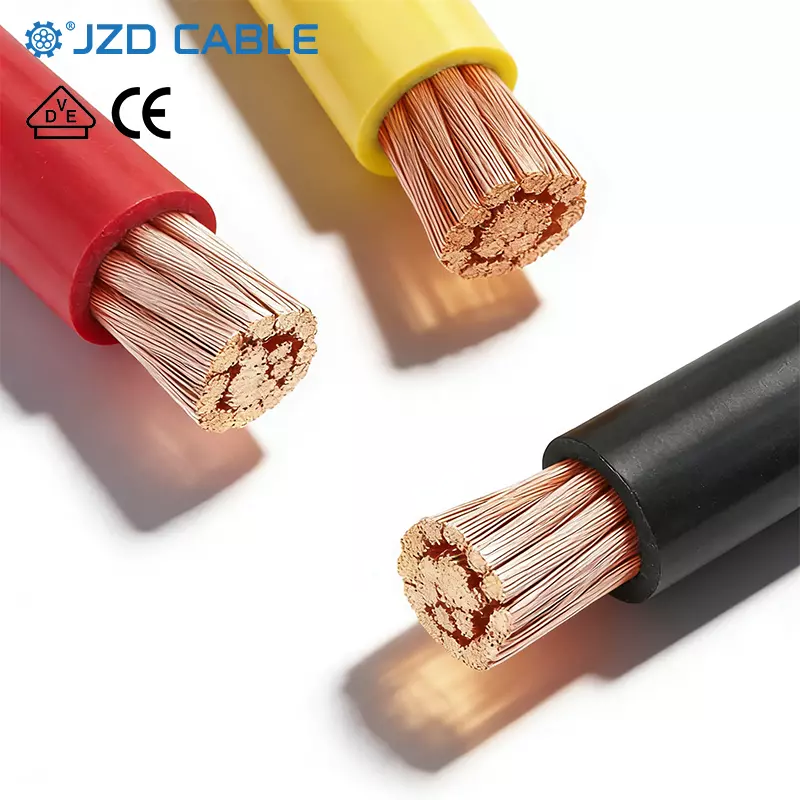

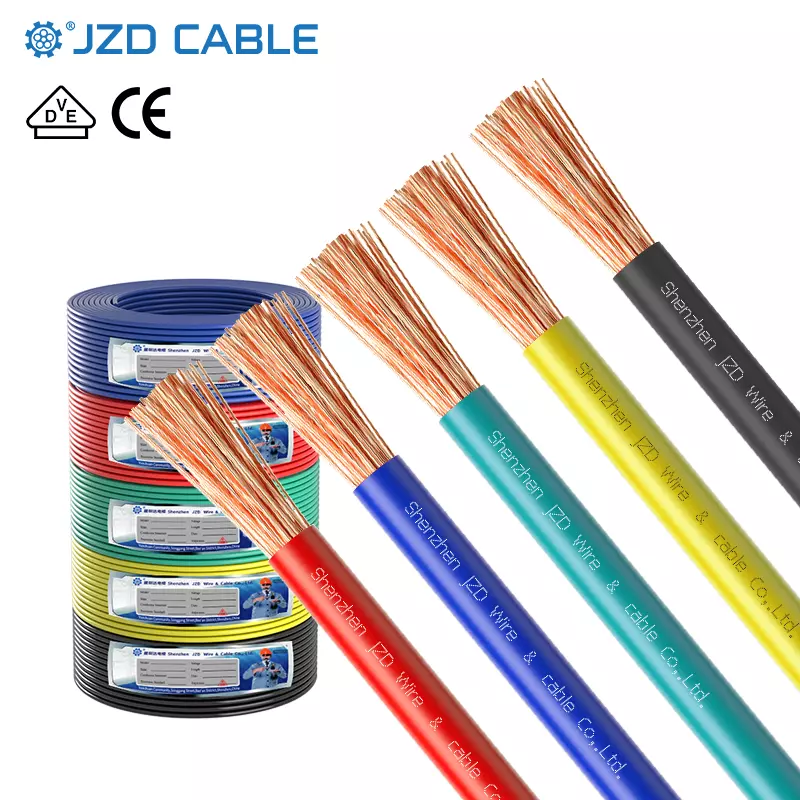

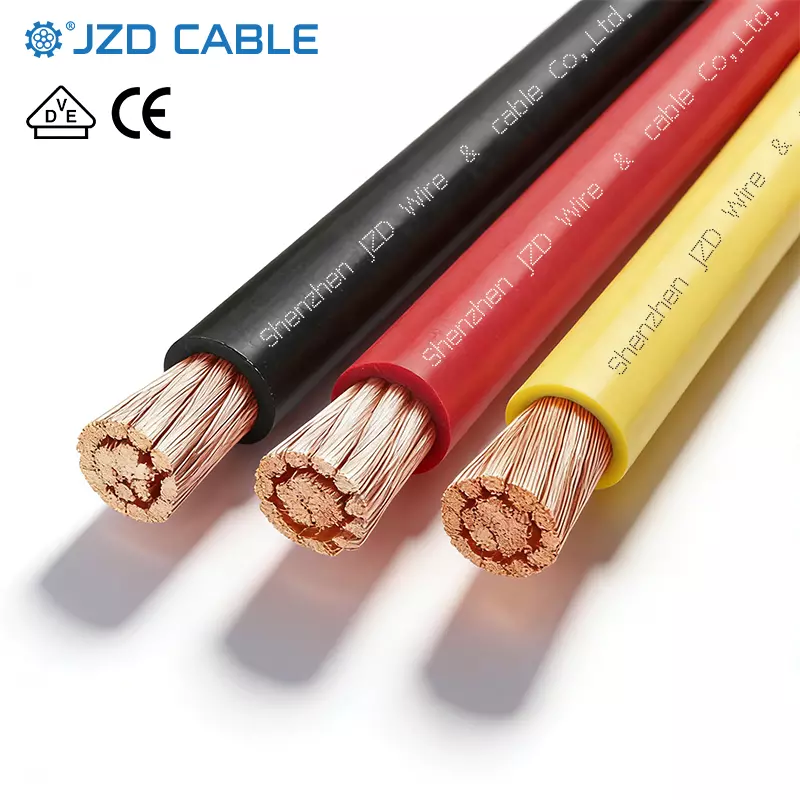

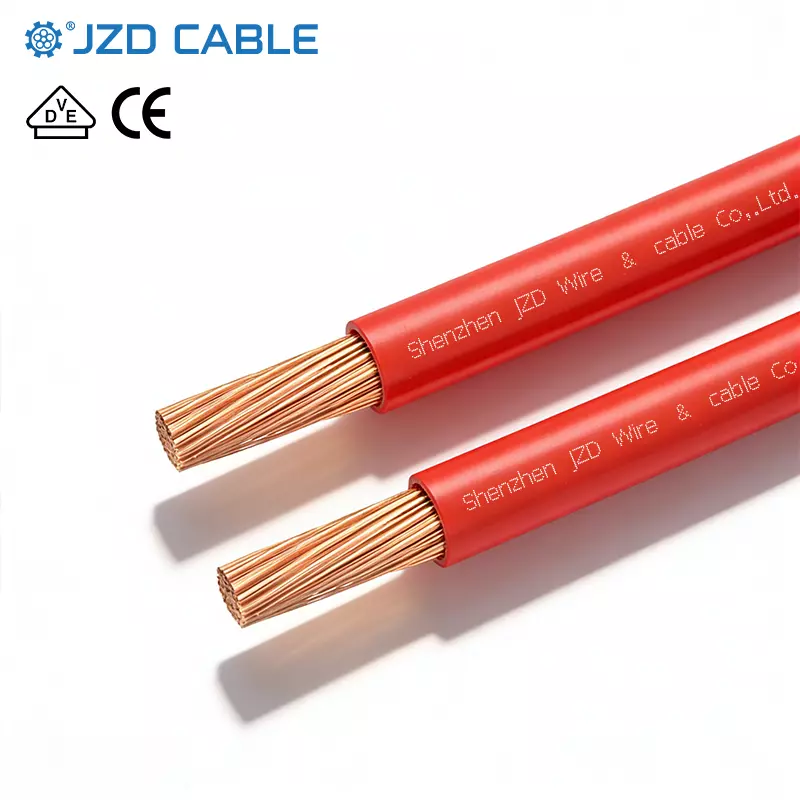

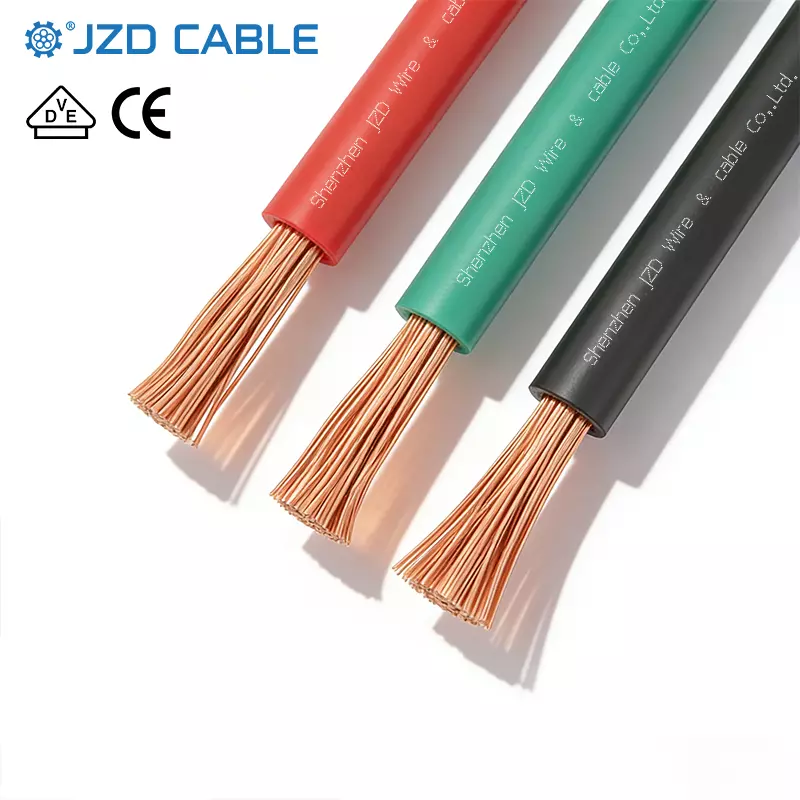

H05V-K/H07V-K Cable

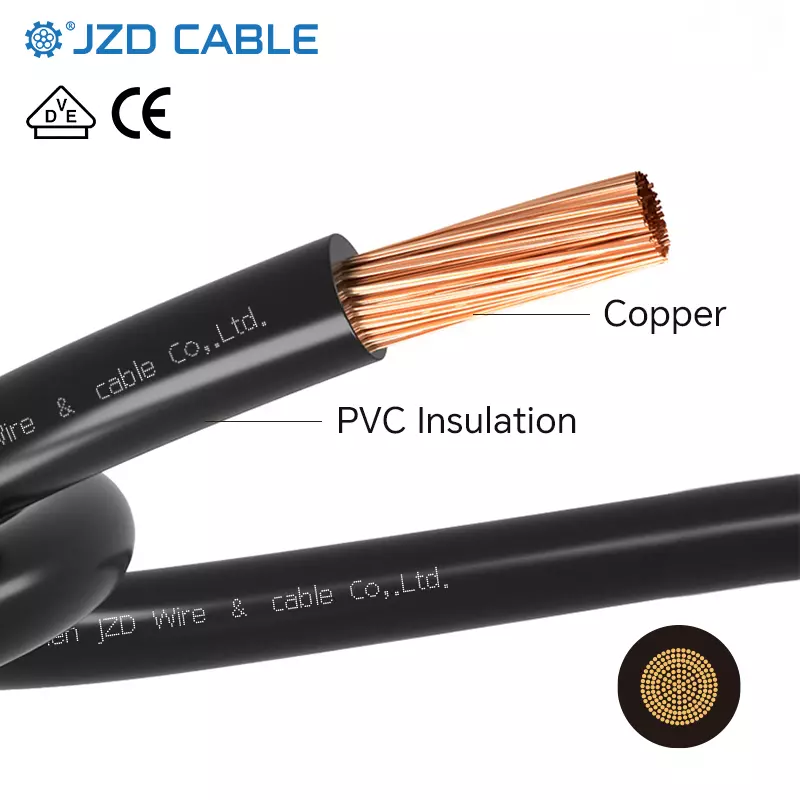

The H05V-K and H05V-K cables are VDE-certified, single-core, PVC-insulated cables with a solid copper conductor (Class 1 per IEC 60228). Designed for fixed electrical installations in dry or moderately damp indoor locations, these cables provide reliable performance in residential, commercial, and light industrial applications.
The “K” designation denotes a solid conductor, which ensures stable terminations and ease of installation in fixed settings such as conduits, trunking, or embedded wall systems. Rated for continuous operation at up to +70°C, these cables are flame-retardant and comply with European harmonization standards.
Specification
| H05V-K/H07V-K | ||||||
|
Voltage level
|
Nominal section (mm2)
|
Toplimit of overall diameter ( mm)
|
Maximum DC resistance (20℃ ) (Ω/ km)
|
Minimum insulation resistance (70℃ ) (MΩ. km)
|
Recommended value of carrying capacity (A)
|
Reference weight (kg/ km)
|
|
300/500
|
0.3
|
2.3
|
69.2
|
0.016
|
10
|
6.2
|
|
0.4
|
2.5
|
48.2
|
0.014
|
11.7
|
8.0
|
|
|
0.5
|
2.5
|
39
|
0.013
|
13.3
|
9.0
|
|
|
0.75
|
2.7
|
26
|
0.011
|
17.0
|
12.2
|
|
|
1
|
2.8
|
19.5
|
0.010
|
20.0
|
14.8
|
|
|
450/750
|
1.5
|
3.4
|
13.3
|
0.010
|
25.4
|
21.6
|
|
2.5
|
4.1
|
7.98
|
0.009
|
34.5
|
34
|
|
|
4
|
4.8
|
4.95
|
0.007
|
44.5
|
50
|
|
|
6
|
5.3
|
3.30
|
0.006
|
58.3
|
75
|
|
|
10
|
6.8
|
1.91
|
0.0056
|
79.5
|
132
|
|
|
16
|
8.1
|
1.21
|
0.0046
|
111
|
197
|
|
|
25
|
10.2
|
0.780
|
0.0044
|
146
|
289
|
|
|
35
|
11.7
|
0.554
|
0.0038
|
180
|
380
|
|
|
50
|
13.9
|
0.386
|
0.0037
|
225
|
549
|
|
|
70
|
16.0
|
0.272
|
0.0032
|
280
|
754
|
|
Application
1. Appliances & Power Tools (Internal Wiring)
- Household Appliances: Internal connections in vacuum cleaners, food processors, and blenders where cords experience twisting and movement.
- Power Tools: Wiring for drills, angle grinders, and saws that require high flexibility at the strain relief and entry points.
- Small Motors: Connections within fans, pumps, and other motor-driven devices subject to vibration.
2. Control Systems & Automation
- Control Cabinets & Panels: Wiring for door-mounted components, sliding drawers, or any internal connections that need repeated flexing during maintenance.
- Robotics & Automated Machinery: Wiring for moving arms, grippers, and sensors where continuous flexing is required.
- Machine Tool Wiring: Connections to moving parts on lathes, CNC machines, and other industrial equipment.
3. Specialized Equipment & Installations
- Medical Equipment: Internal wiring for movable arms or sections on diagnostic devices (subject to specific medical standards).
- Testing & Measurement Devices: Wiring for leads, probes, and internal connections in portable test equipment.
- Tight Space Installations: Ideal for complex routing in confined spaces where a highly flexible cable is necessary for installation.
