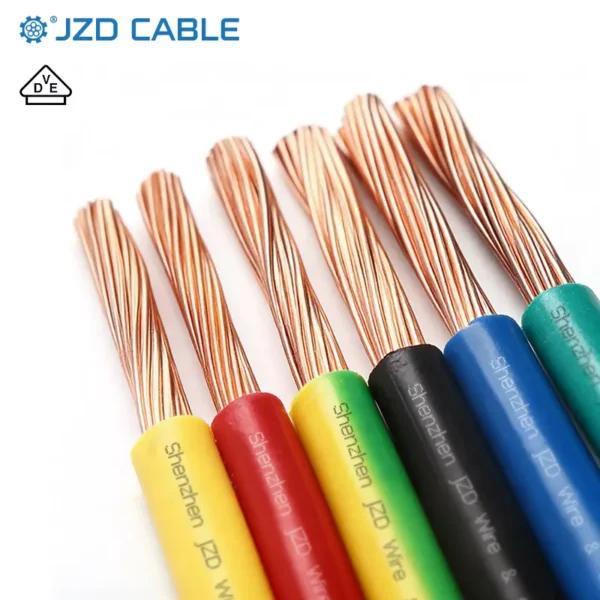

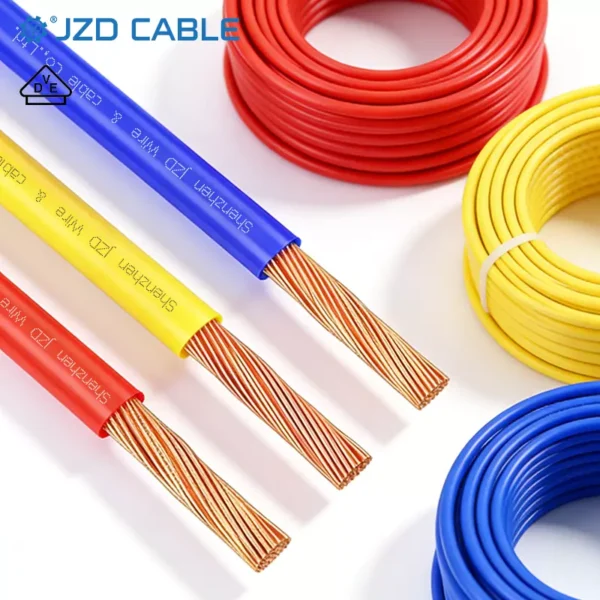

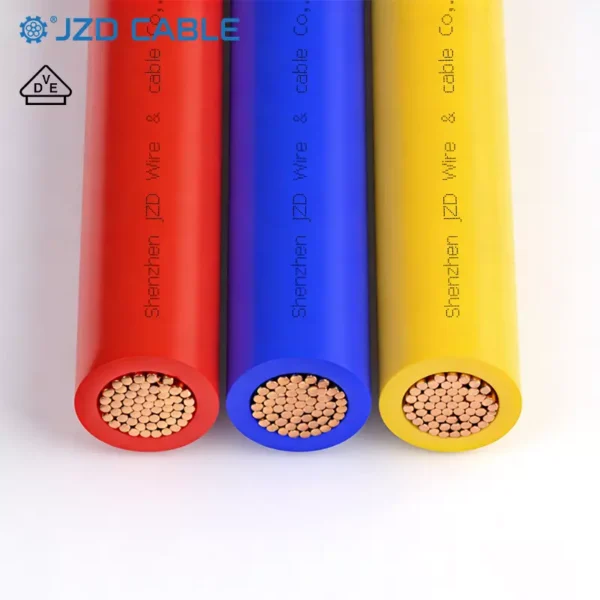

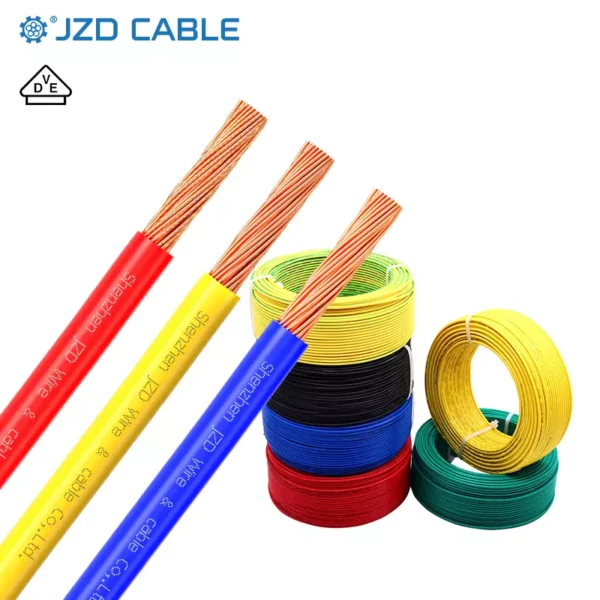

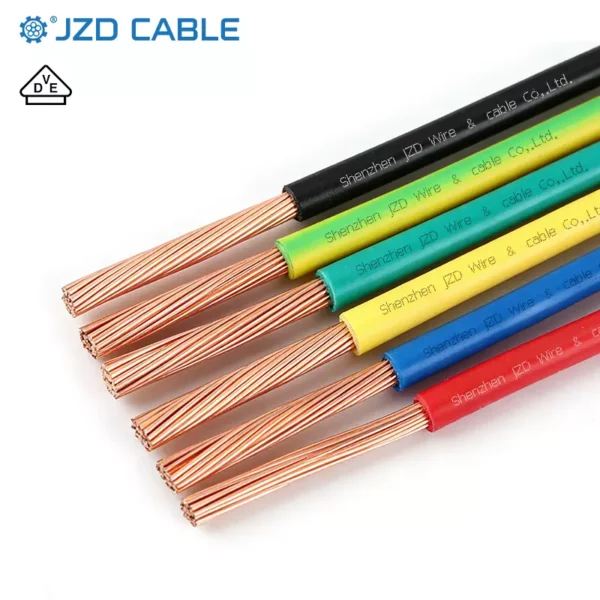

H05V-R/H07V-R Cable
JZD’s H05V‑R/H07V‑R series are European‑harmonized single‑core cables with stranded conductors and no outer sheath, designed for fixed or non‑continuous flexible installations in industrial, commercial and residential projects.
Key Features
- VDE Certification – Fully compliant with VDE 0281, VDE 0295 and HD 21.3 S3, ensuring acceptance across the European market.

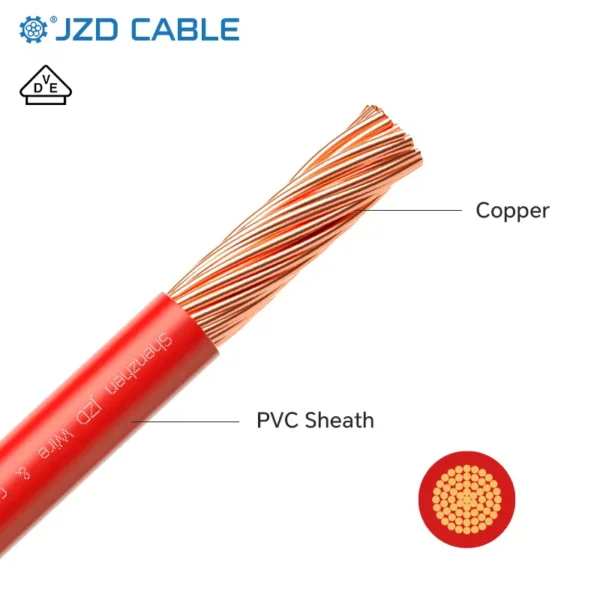

- High‑Conductivity Conductor – Class‑2 stranded (tinned) copper per VDE 0295 / IEC 60228, offering excellent flexibility and low resistance.
- Robust PVC Insulation – PVC (TI1) insulation rated for ‑30 °C to +70 °C (fixed) / ‑5 °C to +70 °C (flexible) installation.
- Voltage Ratings – H05V‑R: 300/500 V; H07V‑R: 450/750 V.
- Flame‑Retardant – Meets IEC 60332‑1/HD 405.2 standards for enhanced safety in industrial environments.
- RoHS Compliant – Free of hazardous substances, meeting EU environmental directives
Specification
|
Nominal cross section area
|
Nominal Insulation Thickness
|
Nominal Overall diameter
|
Approx Weight
|
Max. D.C. Resistance of Conductor (20°C)
|
|
mm²
|
mm
|
mm
|
kg/km
|
Ω/km
|
|
1.5
|
0.7
|
2.9
|
22
|
12.1
|
|
2.5
|
0.8
|
3.6
|
32
|
7.41
|
|
4
|
0.8
|
4.1
|
50
|
4.61
|
|
6
|
0.8
|
4.7
|
71
|
3.08
|
|
10
|
1
|
5.9
|
110
|
1.83
|
|
16
|
1
|
6.8
|
164
|
1.15
|
|
25
|
1.2
|
8.4
|
256
|
0.727
|
|
35
|
1.2
|
9.4
|
346
|
0.524
|
|
50
|
1.4
|
11
|
473
|
0.387
|
|
70
|
1.4
|
12.7
|
674
|
0.268
|
|
95
|
1.6
|
14.7
|
913
|
0.193
|
|
120
|
1.6
|
16.2
|
1150
|
0.153
|
|
150
|
1.8
|
18
|
1461
|
0.124
|
|
185
|
2
|
20
|
1749
|
0.0991
|
|
240
|
2.2
|
23
|
2317
|
0.0754
|
|
300
|
2.4
|
25.2
|
3049
|
0.0601
|
|
400
|
2.6
|
28.4
|
3657
|
0.047
|
|
500
|
2.8
|
31.8
|
4700
|
0.0366
|
|
630
|
2.8
|
38.1
|
5890
|
0.0283
|
Application
1. Industrial & Equipment Fields
- Control Cabinets & Switchgear – Internal wiring of electrical cabinets, control rooms and connector panels.
- Machinery & Power Stations – Power and control circuits in industrial machines, generators, and HVAC systems.
- Automation & Robotics – Flexible wiring for moving parts in confined spaces.
2. Building & Lighting Installations
- Fixed or Semi‑Fixed Lighting – Wiring for lighting systems, signal circuits and embedded conduit installations.
- Power Distribution – Main and sub‑circuit wiring in commercial and residential buildings (suitable for conduit, duct or closed installation).
3. Appliance & Internal Wiring
- Household Appliances – Internal connections in refrigerators, washing machines, ovens, air conditioners and water heaters.
- Power Tools & Electronics – Wiring inside switchboards, distribution units and export‑oriented electrical equipment.
4. Special & Demanding Environments
- Frequent‑Bending Applications – Equipment that requires repeated flexing in limited spaces.
- Fire‑/Explosion‑Proof Areas – Installations where flame‑retardant cables are mandated.
Certification
Package & Shipping
JZD Factory
JZD Wire & Cable has been established for over 25 years, We are manufacturing and supplying quality electrical cables to America, Canada, European countries, Philippines. Australia, South American countries, South Africa, ect. JZD Wire & Cable makes customized cables for a complete range in this industry, including single and multi-cores cables, such as : Solar Cable, THHN Nylon Cable, Building wire, Flat TPS Cable, AC Cable, MC Cable, NM-B, NMD90, Fire rated cable, Silicone Cable, ect. High quality products that JZD provided have been taken part in lots of buildings and projects all over the world. Like airports, schools, hospitals, factories, ect.
Exhibitation
April 2025 Exhibition in Indonesia
May 2025 Exhibition in the Philippines
Q: Are you a manufacturer or trading company?
A:We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We’ll pick you up in Shenzhen.
Q: How can I get a sample to test your quality?
A:The samples are free for you. New clients are expected to pay for the courier cost.
Q:What’s your Minimum Order Quantity?
A:Normally 100m. However, the cable is very heavy. You’d better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q:Can I get a discount?
A:It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Q:Does your company accept OEM production?
A:Yes, could print your company name, we even custom the quality card to promote your company.
