Products Supplied:
- JZD YJV 0.6/1kV DC Power Cables (for battery string interconnections)
- JZD YJV 0.6/1kV AC Power Cables (for BESS inverter to switchgear)
- JZD UL1015 Hookup Wire (for BMS battery monitoring)
Specifications & Quantities (Preliminary):
- YJV DC Battery Cables: 1x95mm², 1x120mm², 1x150mm² — 5000 m
- YJV AC Inverter Output: 3x185mm²+1x95mm² — 5000m
- UL1015 Hookup Wire: 16 AWG, 14 AWG, 12 AWG — 10000 m — BMS cell monitoring
Client: BESS integrator
Project Details & Narrative:
BESS — The Data Center’s Energy Buffer
Battery Energy Storage Systems (BESS) are increasingly critical to data center power architectures. They serve multiple roles:
- UPS Replacement / Augmentation: Lithium-ion BESS can replace or supplement traditional lead-acid UPS batteries, offering higher energy density and longer cycle life
- Peak Shaving: Discharging batteries during peak grid pricing periods reduces electricity costs
- Grid Services: Frequency regulation and demand response participation generate revenue
- Renewable Integration: Buffering intermittent solar/wind generation for 24/7 clean energy goals
- Generator Bridging: Providing power during the 10–30 second gap between grid failure and generator startup
A large-scale data center BESS installation involves thousands of battery cells interconnected in series-parallel configurations, connected to power conversion systems (PCS/inverters), and monitored by sophisticated Battery Management Systems (BMS).
The Cable Challenge
BESS cabling is uniquely demanding:
| Cable Function | Requirement | Why It Matters |
|---|---|---|
| Battery string DC interconnects | High DC ampacity, low resistance | Minimizes I²R losses; DC systems are more sensitive to voltage drop than AC |
| BMS cell monitoring | Accurate low-voltage signal transmission | Cell voltage measurements must be precise to ±mV for safe battery operation |
| Temperature sensor wiring | Reliable signal in high-EMI environment | Power electronics generate significant electromagnetic noise |
| PCS to switchgear AC feeders | Standard AC power cable specs | Similar to other data center distribution |
The Project
In 2026, JZD Cable supplied BESS cabling for a 100w MW/MWh battery storage installation for data center name/location.
UL1015 for BMS Cell Monitoring
UL1015 is Appliance Wiring Material (AWM) rated 600V, 105°C — an ideal choice for BMS cell monitoring wiring:
- 105°C temperature rating: Battery cabinets can reach elevated temperatures during charge/discharge cycles; UL1015’s higher rating provides margin
- Stranded copper conductor: Flexibility for routing within tight battery cabinet spaces
- PVC insulation: Good electrical properties for low-voltage signal transmission
- UL recognized: Accepted by BESS integrators and certifying bodies (UL 1973, UL 9540)
How JZD Won
- BESS Application Knowledge: JZD’s technical team demonstrated understanding of BESS-specific requirements — DC cable sizing for battery strings, voltage drop calculations for long string configurations, and appropriate insulation for battery cabinet environments.
- Complete Package: JZD supplied DC battery cables (YJV), AC inverter output cables (YJV), and BMS monitoring wire (UL1015) from a single source.
- Sample Performance: The integrator tested JZD’s UL1015 samples for insulation resistance, voltage withstand, and flexibility — all passed requirements.
- Competitive Pricing: Factory-direct pricing on the bundled cable package delivered savings vs. sourcing from multiple suppliers.
Outcome
- BESS installation completed and commissioned
- Battery string cabling met all DC resistance specifications
- BMS cell monitoring signals clean and accurate — no noise issues attributed to UL1015 wiring
- System achieved UL 9540 certification
About JZD Cable

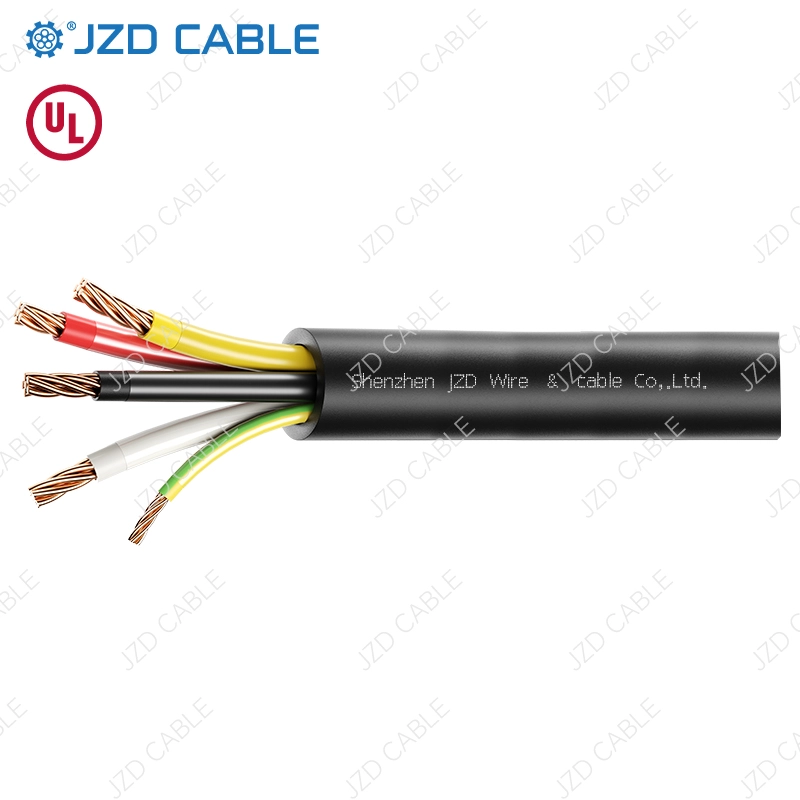

JZD Cable is a professional cable manufacturer with over 20 years of experience, headquartered in Shenzhen, China. We produce a full range of UL-certified building wires — THHN, THWN-2, XHHW-2, NM-B, TC-ER — and export to Southeast Asia, the Pacific, the Middle East, Africa, and the Americas. Our factory operates under ISO 9001 quality management, with every shipment backed by complete certification documentation and batch traceability.
