Project: JZD Cable – Case Study: XHHW-2 & TC-ER Cables for Hospital HVAC & Medical Gas Systems, Philippines
Products Supplied:
- JZD XHHW-2 Power Cable (XLPE, for mechanical room & outdoor equipment feeders)
- JZD THHN Building Wire (for general branch circuits)
Specifications & Quantities (Preliminary):
- XHHW-2: 22mm² to 120mm² — 20000m — AHU/chiller/boiler feeders
- THHN: 3.5mm² to 35mm² — 20000 m — general circuits
Client: Philippine hospital construction contractor
Project Name: Hospital HVAC & Medical Gas System Upgrade, Philippines
Project Details & Narrative:
Hospital HVAC — Life-Critical Environmental Control
Hospital HVAC systems are fundamentally different from commercial building HVAC:
- Infection Control: Operating rooms require laminar airflow with HEPA filtration, positive pressure relative to adjacent spaces, precise temperature (18–24°C) and humidity (40–60% RH)
- Isolation Rooms: Negative pressure for airborne infection isolation, with alarmed pressure monitoring
- Sterile Processing: Specific temperature and humidity for instrument sterilization areas
- Medical Gas Systems: Oxygen, nitrous oxide, medical air, and vacuum systems with centralized alarm monitoring
- 24/7/365 Reliability: No downtime permitted — redundant equipment, emergency power, and fail-safe control systems
Cable selection in this environment must account for: high ambient temperatures in mechanical rooms, outdoor exposure for cooling towers and chillers, EMI shielding for sensitive alarm circuits, and fire safety for patient-occupied areas.
The Project
In 2025, the contractor undertook the HVAC and medical gas system installation/upgrade for Philippines.
The scope included:
- New chiller plant with VFD-driven centrifugal chillers
- Air handling units serving operating theaters, ICU, and general wards
- Medical gas manifold rooms with centralized alarm panels
- Building Management System with monitoring points
Why XHHW-2 for Hospital Mechanical Rooms

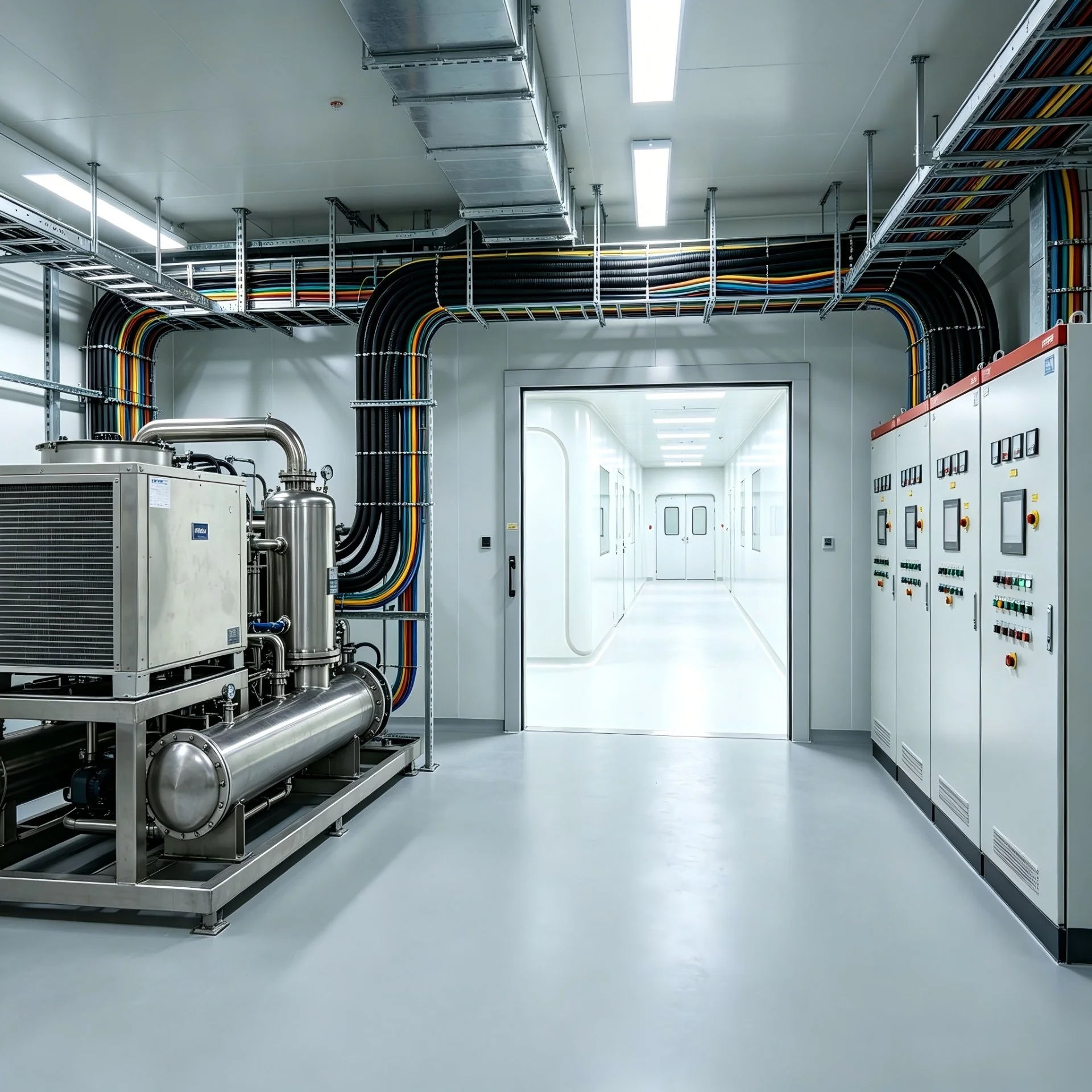

Hospital mechanical rooms house chillers, boilers, medical air compressors, and vacuum pumps — equipment generating significant ambient heat. Standard PVC-insulated cables (75°C wet rating) can degrade over time in these conditions. XHHW-2’s XLPE insulation provides 90°C rating in both wet and dry locations, with superior long-term thermal stability. For hospital applications where reliability is non-negotiable, this margin matters.
Supply & Installation
- JZD supplied the cable package across 1 shipments
- All cables accompanied by UL compliance documentation and factory test reports
- On-site, the electrical contractor reported clean installations with no cable defects
Outcome
The hospital’s HVAC and medical gas systems were commissioned successfully. Post-installation:
- Operating theater environmental parameters met surgical standards
- Medical gas alarm system functioned reliably — zero false alarms attributed to cabling
- BMS integration achieved all control and monitoring objectives
- XHHW-2 feeders in mechanical rooms showed no signs of thermal stress after 2 months
The contractor has since engaged JZD Cable for cables on additional hospital projects.
