UL1015 Hook-Up Wire

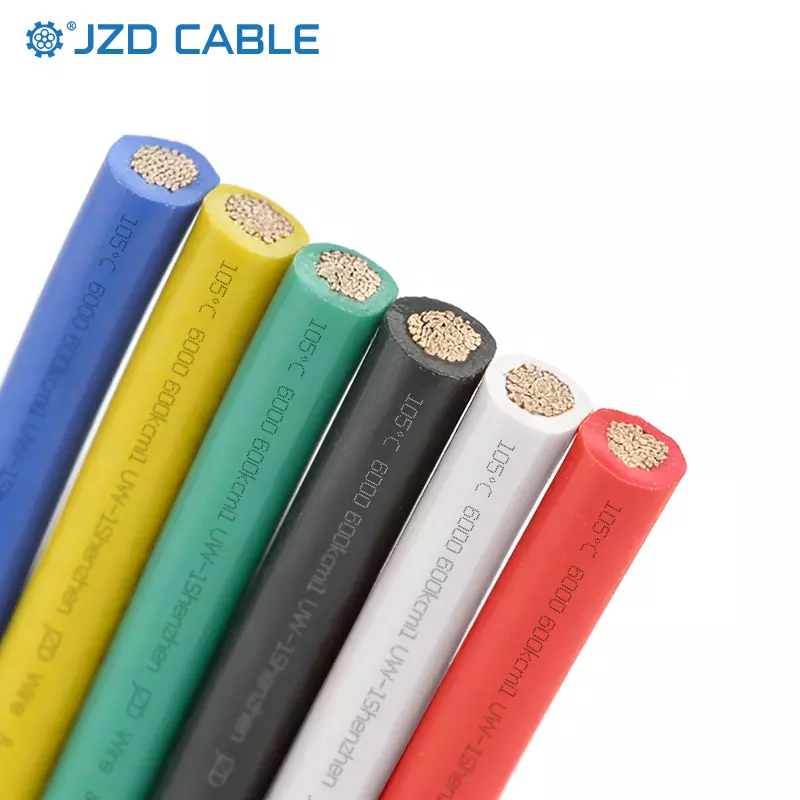

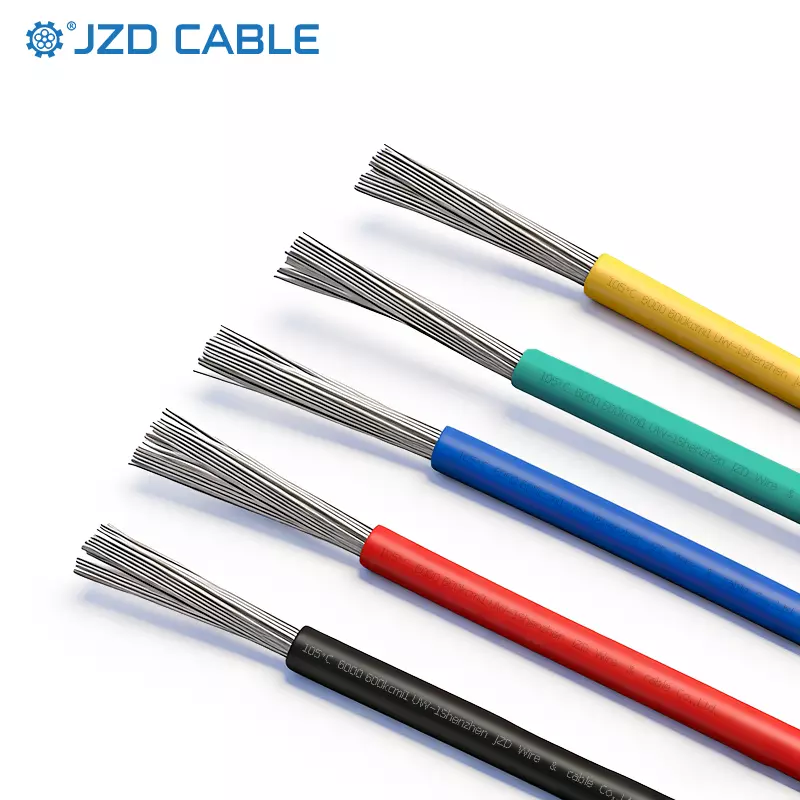

JZD Cable’s UL1015 Hook-Up Wire is a robust, 600V-rated single-conductor cable engineered for internal wiring in industrial control equipment, appliances, and electrical panels. Certified to UL Standard 1015 and RoHS compliant, it features tinned or bare copper conductors (solid or stranded) and flame-retardant PVC insulation that withstands temperatures up to 105°C and resists oils, acids, moisture, and abrasion . With a VW-1 vertical flame rating and optional 80°C oil-resistance, this wire delivers reliable power and signal transmission in demanding environments . Available in AWG 30 to 10 and multiple color-coded options, it simplifies installation and maintenance in fixed or flexible applications.
Key Specifications:
✅ Voltage Rating: 600V AC / 750V DC
✅ Temperature Range: -40°C to +105°C (dry); up to 80°C in oil

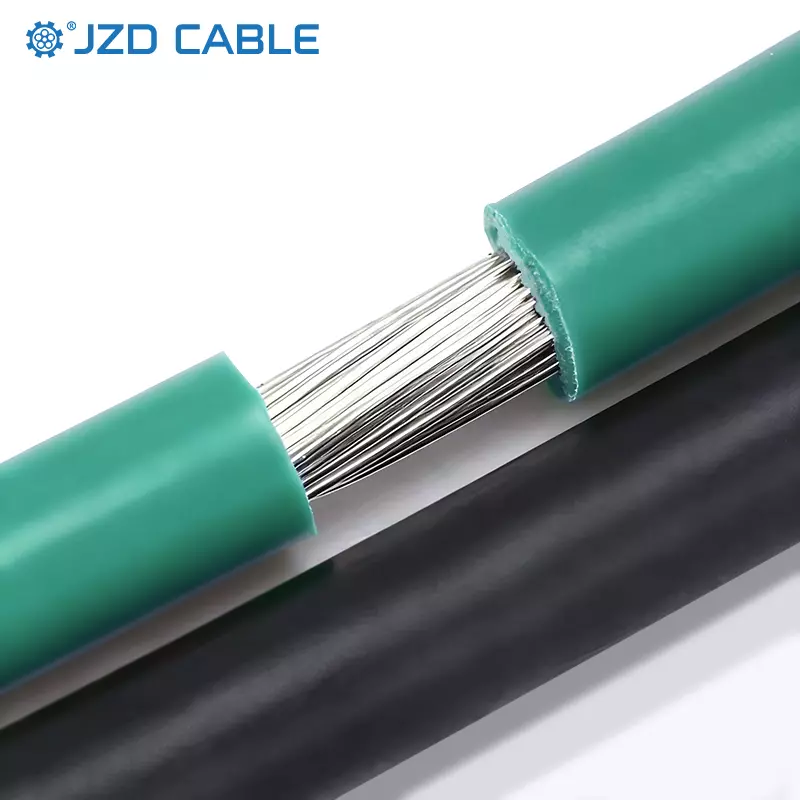

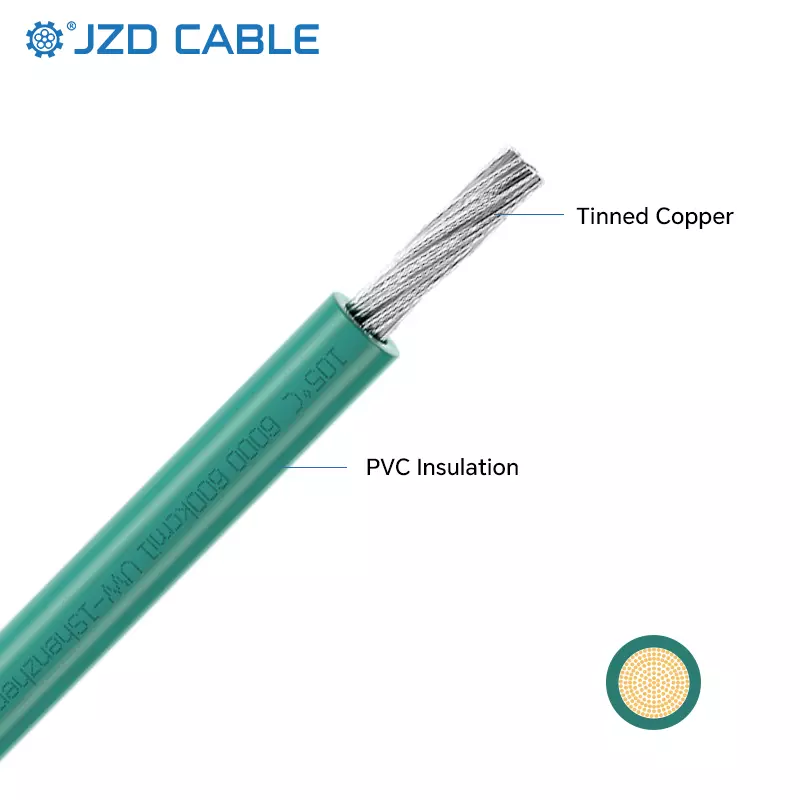

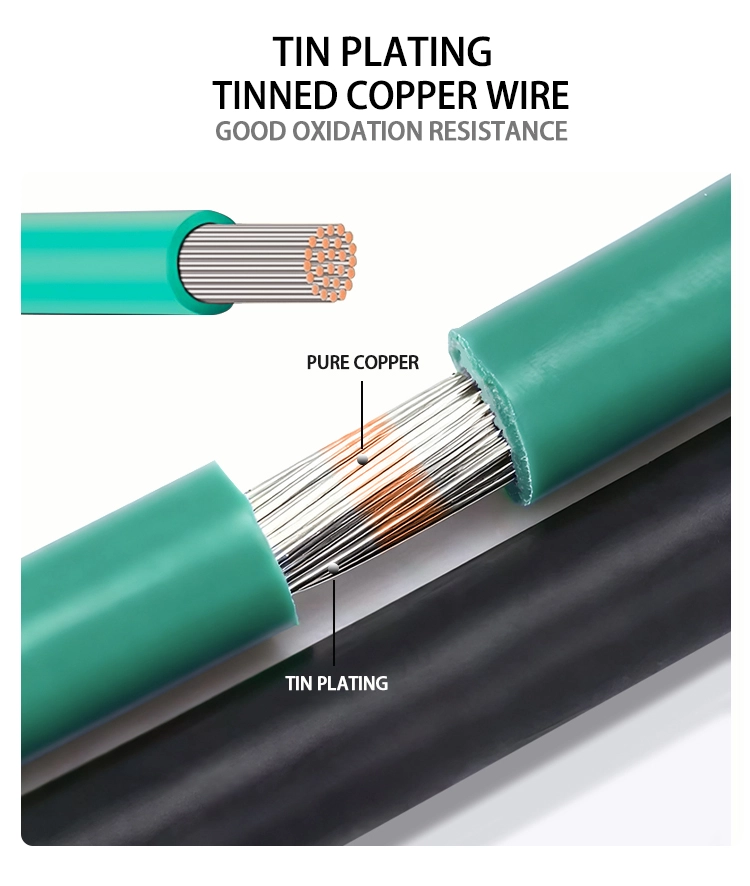

✅ Conductor: Solid or stranded bare/tinned copper (Class B stranding)
✅ Insulation: PVC, minimum 30 mils thickness, VW-1 flame retardant
✅ Standards: UL 758 (AWM 1015), CSA TEW, RoHS/REACH compliant
✅ AWG Sizes: 30 to 10 AWG (extended ranges available)
Specification
|
CONDUCTOR
|
INSULATION
|
MAX.COND. RESISTANCE (Q/km,20°C,DC)
|
DIELECTRIC STRENGTH (VAC, Imin)
|
|||
|
AWG
|
CONSTRUCTION
(No./mm) |
DIA.
(mm) |
THICKNESS (mm)
|
O.D.
(mm) |
||
|
30
|
1/0.254
|
0.25
|
0.40
|
1.05
|
361
|
2,000
|
|
7/0.10
|
0.30
|
0.40
|
1.10
|
381
|
||
|
28
|
1/0.32
|
0.32
|
0.39
|
1.10
|
227
|
2,000
|
|
7/0.127
|
0.38
|
0.41
|
1.20
|
239
|
||
|
7/0.127OS-1*
|
0.38
|
0.41
|
1.20
|
239
|
||
|
26
|
1/0.404
|
0.40
|
0.43
|
1.25
|
143
|
2,000
|
|
7/0.16
|
0.48
|
0.41
|
1.30
|
150
|
||
|
7/0.16OS-1*
|
0.48
|
0.41
|
1.30
|
150
|
||
|
24
|
1/0.511
|
0.51
|
0.42
|
1.35
|
89.3
|
2,000
|
|
11/0.16
|
0.61
|
0.40
|
1.40
|
94.2
|
||
|
7/0.200S-1*
|
0.60
|
0.40
|
1.40
|
94.2
|
||
|
22
|
1/0.643
|
0.64
|
0.43
|
1.50
|
56.4
|
2000
|
|
17/0.16
|
0.76
|
0.42
|
1.60
|
59.4
|
||
|
7/0.254 OS-1*
|
0.76
|
0.42
|
1.60
|
59.4
|
||
|
20
|
1/0.813
|
0.81
|
0.42
|
1.65
|
35.2
|
2,000
|
|
26/0.16
|
0.94
|
0.43
|
1.80
|
36.7
|
||
|
7/0.32OS-1*
|
0.96
|
0.42
|
1.80
|
36.7
|
||
|
18
|
1/1.024
|
1.02
|
0.41
|
1.85
|
22.2
|
2,000
|
|
41/0.16
|
1.18
|
0.47
|
2.10
|
23.2
|
||
|
7/0.4040S-1*
|
1.21
|
0.45
|
2.10
|
23.2
|
||
|
16
|
1/1.29
|
1.29
|
0.46
|
2.20
|
14.0
|
2,000
|
|
26/0.254
|
1.49
|
0.46
|
2.40
|
14.6
|
||
Comparison
Application
Ideal for internal wiring where higher voltage/temperature ratings than UL1007 are required:
1.Industrial Control Panels & Cabinets
Power distribution, circuit breaker interconnections, and busbar feeds in PLC enclosures, motor control centers, and switchgear .
2.Appliance & Equipment Manufacturing
Internal wiring of HVAC units, commercial kitchen equipment, industrial ovens, and medical devices .
3.Motor & Transformer Connections
Lead wires for Class B motors, VFD input/output terminals, and transformer secondary wiring .
4.Machinery & Automation Systems
Wiring inside CNC machines, conveyor systems, robotic arms, and packaging equipment.
5.Lighting & Power Distribution
Ballast wiring, high-bay lighting circuits, and low-voltage power feeds in dry locations .
6.Renewable Energy Systems
Internal connections in solar inverters, wind turbine control cabinets, and battery storage units.
