Reliable internal wiring is essential for safe and efficient Verteilerkasten (distribution box) and electrical cabinet applications. H07V-K cable is widely used for Verteilerkasten wiring, Schaltschrankverdrahtung, and electrical equipment connections due to its flexible copper conductor, PVC insulation, and 450/750V rated performance.
Designed for electrical installers, panel builders, and OEM manufacturers, H07V-K provides a practical solution for reliable connections, efficient installation, and organized wiring inside electrical enclosures.
What Is H07V-K Cable?

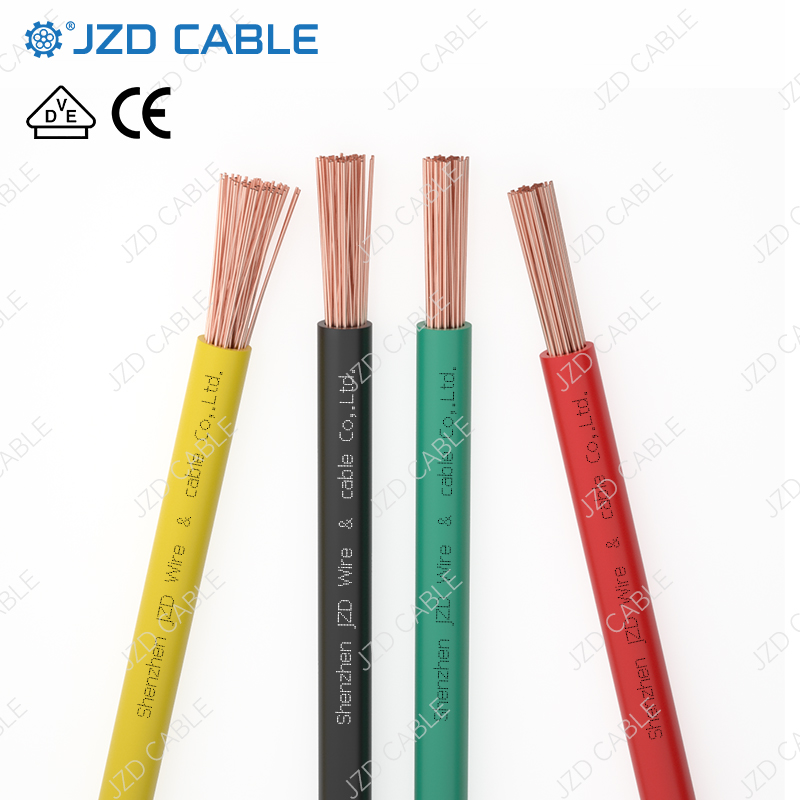

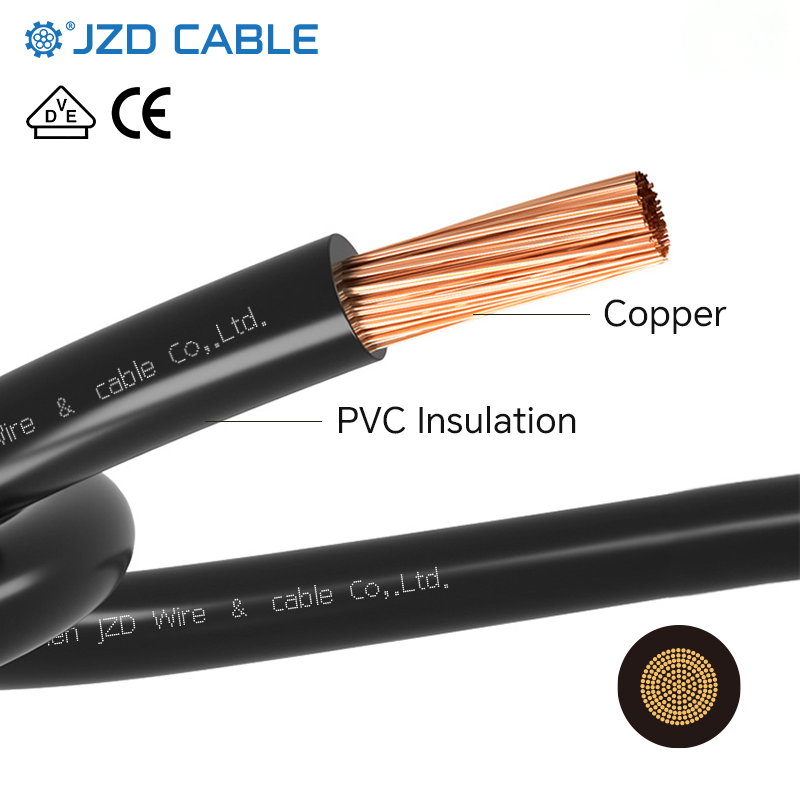

H07V-K is a harmonized European flexible single-core cable designed for internal electrical wiring applications. It consists of a fine-stranded copper conductor and PVC insulation, making it suitable for installations where flexible routing and reliable terminal connections are required.
Compared with rigid conductors, the flexible construction of H07V-K helps simplify cable routing and connection work, especially in electrical cabinets and distribution systems.
In Germany, H07V-K is commonly recognized as a flexible Aderleitung for internal electrical wiring applications.
Why H07V-K Is Used for Verteilerkasten Wiring
Inside a Verteilerkasten, multiple electrical components such as circuit breakers, terminal blocks, and protective devices require organized and secure connections.
H07V-K cable is suitable for these applications because of its:
1. Flexible Class 5 Copper Conductor
The fine-stranded copper conductor provides good flexibility while maintaining reliable electrical conductivity. This makes the cable easier to install in electrical cabinets where multiple connection points and routing requirements exist.
2. PVC Insulation
The PVC insulation provides electrical protection and supports common internal wiring applications in distribution systems, control cabinets, and electrical equipment.
3. Easy Identification and Installation
Available conductor colors help electricians organize wiring layouts and simplify inspection and maintenance.
Common colors include:
- Black
- Blue
- Brown
- Grey
- Red
- Green/yellow
H07V-K Applications in Different Verteilerkasten Installations
Different installation environments require different electrical enclosure solutions. H07V-K can be used for internal wiring in various types of distribution systems when the installation conditions and enclosure requirements are properly considered.
1. H07V-K for Verteilerkasten Aufputz Applications
A Verteilerkasten Aufputz (surface-mounted distribution box) is installed directly on walls and is commonly used in industrial buildings, workshops, technical rooms, and renovation projects.
These installations usually require:
- Efficient internal wiring
- Easy access for maintenance
- Organized connection layouts
The flexible structure of H07V-K allows convenient connections between terminal blocks, protective devices, and other electrical components inside surface-mounted distribution boxes.
2. H07V-K for Verteilerkasten Unterputz Applications
A Verteilerkasten Unterputz (flush-mounted distribution box) is installed inside walls to create a cleaner appearance and optimize available installation space.
Because recessed distribution boxes generally have more limited internal space, flexible wiring solutions are often preferred.
H07V-K is suitable for internal connections such as:
- Circuit breaker wiring
- Terminal connections
- Distribution component connections
- Building electrical installations
Its flexible conductor construction helps electricians complete wiring work efficiently in compact enclosures.
3. H07V-K for Verteilerkasten Außenbereich Applications
A Verteilerkasten Außenbereich (outdoor distribution box) is used for electrical installations exposed to outdoor conditions, including industrial areas, gardens, and building exteriors.
For outdoor applications, the enclosure must provide appropriate protection against environmental factors such as moisture and temperature changes.
H07V-K cable can be used for protected internal wiring inside suitable outdoor distribution enclosures. The overall installation design should always consider the required IP protection level and environmental conditions.
H05V-K vs H07V-K: Which Cable Is Suitable for Verteilerkasten?
H05V-K and H07V-K have similar flexible conductor structures but different voltage ratings.
| Feature | H05V-K | H07V-K |
| Rated Voltage | 300/500V | 450/750V |
| Conductor | Class 5 Flexible Copper | Class 5 Flexible Copper |
| Insulation | PVC | PVC |
| Typical Application | Light-duty internal wiring | Verteilerkasten, Schaltschrank, industrial electrical systems |
For industrial electrical cabinets, distribution systems, and applications requiring higher voltage ratings, H07V-K is generally the preferred choice due to its 450/750V rating and wider application range.
VDE Certified H07V-K Cable Solution for Verteilerkasten Applications
JZD Cable supplies VDE-certified H05V-K and H07V-K PVC insulated flexible cables designed for European electrical applications.
The cables are manufactured with flexible Class 5 copper conductors and PVC insulation, providing stable electrical performance for applications such as:
- Verteilerkasten wiring
- Schaltschrankverdrahtung
- Schaltschrankleitung applications
- Electrical equipment assembly
- Industrial control systems
The H05V-K version is rated at 300/500V, while H07V-K provides a higher 450/750V rating, making it suitable for more demanding electrical cabinet and distribution applications.
When selecting a cable for a Verteilerkasten project, key factors include conductor cross-section, current requirements, installation environment, and certification requirements. Whether used in a Verteilerkasten Aufputz, Verteilerkasten Unterputz, or a protected Verteilerkasten Außenbereich installation, the cable should match the specific electrical and environmental requirements.
With VDE certification, consistent production quality, multiple conductor sizes, and color options, JZD Cable provides a reliable wiring solution for electrical distributors, contractors, and OEM customers in European markets.
Conclusion
For German electrical installers, panel builders, and industrial manufacturers, selecting a suitable internal wiring cable is essential for efficient and reliable electrical installations.
Contact us today to discuss the right cable solution for your Verteilerkasten, Schaltschrank, and electrical wiring projects.
