A Battery Energy Storage System (BESS) relies on reliable cable connections to transfer stored energy efficiently. Choosing the right BESS cable helps improve power transmission efficiency, reduce energy loss, and ensure safe long-term operation.
For BESS manufacturers, battery cabinet builders, and energy storage integrators, cable selection depends on several factors, including current capacity, cable size, voltage rating, and installation conditions.
What Is BESS (Battery Energy Storage System)?
A Battery Energy Storage System (BESS) stores electrical energy and releases it when required.
During charging, electricity from renewable sources or the grid is converted into DC power and stored in battery units.
During discharging, stored DC energy passes through the Power Conversion System (PCS) and is converted into AC power for electrical loads or grid applications.
The basic energy flow is:
Battery Cells → Battery Modules → Battery Racks → PCS → Grid / Electrical Loads
Each connection point requires suitable cable solutions to maintain stable energy transfer.
Where are BESS used?
BESS is widely used in different energy applications where reliable power storage and management are required.
1. Solar Energy Storage
In solar-plus-storage systems, BESS stores excess solar energy generated during the day and provides power when solar production is unavailable.
These systems require reliable energy storage cables between battery units, inverters, and power distribution equipment.
2. Commercial and Industrial Energy Storage
Factories and commercial buildings use BESS to manage electricity demand, reduce peak power consumption, and improve energy efficiency.
These applications require durable battery cables that can handle continuous charging and discharging cycles.
3. Grid Energy Storage
Large-scale BESS projects support grid operation through:
- Renewable energy balancing
- Peak load management
- Backup power support
These systems require high-current cable solutions designed for large energy flows.
BESS Components and Cable Applications
1. Battery Modules: Flexible DC Connections
Battery modules combine multiple battery cells into energy storage units.
Cables inside battery modules are used for:
- Cell connections
- Module interconnections
- Internal DC transmission
Because installation space is limited, these connections require cables with:
- High conductivity
- Low resistance
- Flexible construction

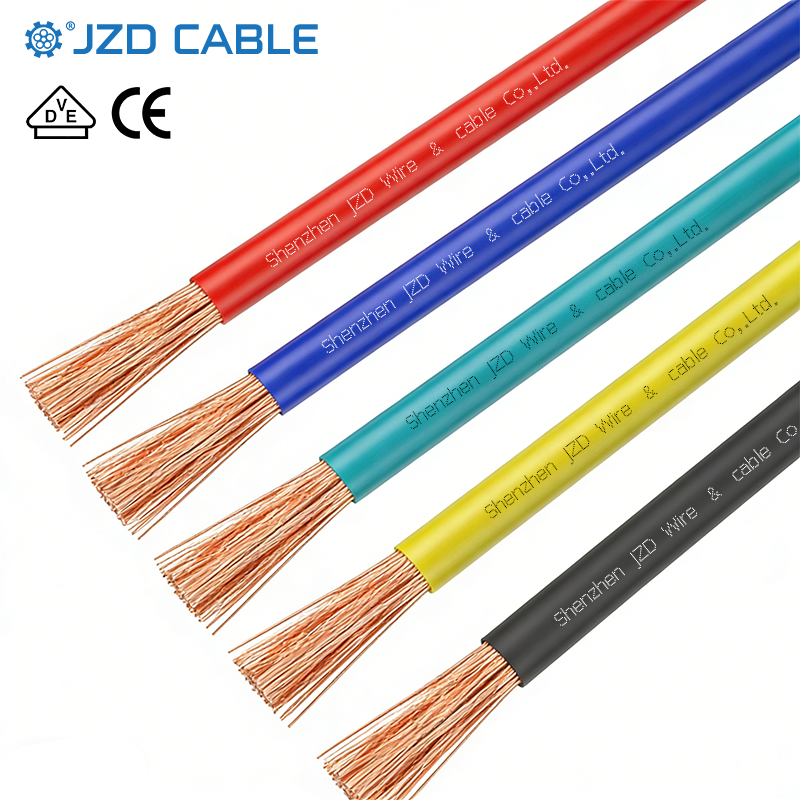

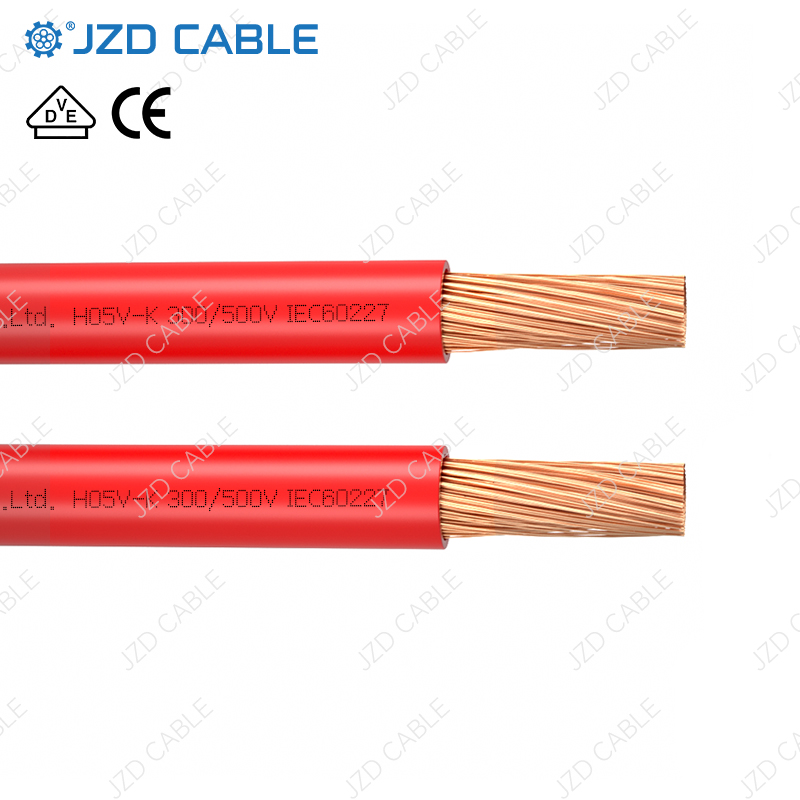

H07V-K flexible cable uses stranded copper conductors and is suitable for compact battery connections where flexibility and reliable current transmission are required.
2. Battery Racks: High-Current Battery Connections
Battery racks combine multiple modules to achieve higher voltage and capacity.
Rack-level connections handle higher current than individual modules and require:
- Proper conductor size
- High current capacity
- Low voltage drop
- Durable insulation
For large energy storage systems, selecting the correct battery cable size is critical. An undersized cable may increase heat generation, power loss, and reduce system efficiency.
3. PCS Connections: High-Power Energy Transfer
The Power Conversion System (PCS) converts energy between DC battery systems and AC electrical networks.
PCS connections require cables with:
- High current capability
- Suitable voltage rating
- Reliable insulation performance
- Thermal stability
For BESS installations following UL standards, power cables such as XHHW-2 and THHN/THWN-2 may be used for suitable power distribution connections.
4. Control and Auxiliary Systems: BMS and EMS
The Battery Management System (BMS) monitors battery conditions, while the Energy Management System (EMS) controls system operation.
These systems mainly use:
- Control wires
- Signal cables
- Communication cables
Compared with power cables, these wires focus on:
- Stable signal transmission
- Compact size
- Flexible installation
UL2464 electronic wire is suitable for internal control circuits, monitoring connections, and equipment wiring.
How to Select Battery Cable for BESS
Selecting the right battery cable for energy storage systems requires consideration of several key factors.
1. Battery Cable Size and Current Capacity
Cable size depends on:
- Maximum operating current
- Cable length
- Installation environment
- Allowable voltage drop
Larger conductor sizes provide:
- Higher current capacity
- Lower resistance
- Reduced heat generation
Proper cable sizing helps maintain stable performance in high-power BESS applications.
2. Voltage Rating and Insulation
Cable insulation must match the operating voltage of the system.
Common insulation materials include:
- PVC
- XLPE
- Other application-specific compounds
The correct insulation improves electrical safety and long-term durability.
3. Conductor Material
Copper and aluminum are common conductor materials.
| Feature | Copper Cable | Aluminum Cable |
| Conductivity | Higher | Lower |
| Cable Size | Smaller for the same current | Larger conductor required |
| Flexibility | Better | Lower |
Copper battery cables are commonly preferred in BESS applications because they provide higher conductivity and better flexibility in compact systems.
4. Temperature and Environment
BESS cables may operate under continuous charging and discharging cycles.
Cable selection should consider:
- Operating temperature
- Moisture exposure
- Mechanical stress
- Installation space
For high-temperature applications, silicone battery cables provide excellent flexibility and temperature resistance.
Quick Cable Selection Guide for BESS
| Application | Main Cable Requirement |
| Battery module | Flexible, low-resistance cable |
| Battery rack | High-current battery cable |
| PCS connection | High-power cable with reliable insulation |
| BMS / EMS | Stable signal control wire |
| High-temperature area | Heat-resistant flexible cable |
Conclusion
A reliable Battery Energy Storage System (BESS) depends on properly selected cables throughout the system.
Battery modules require flexible DC connections, battery racks require high-current battery cables, PCS requires reliable power cables, and control systems require stable signal wiring.
Choosing the correct BESS cable, conductor size, insulation type, and cable construction helps energy storage manufacturers build safer, more efficient, and more reliable systems.
